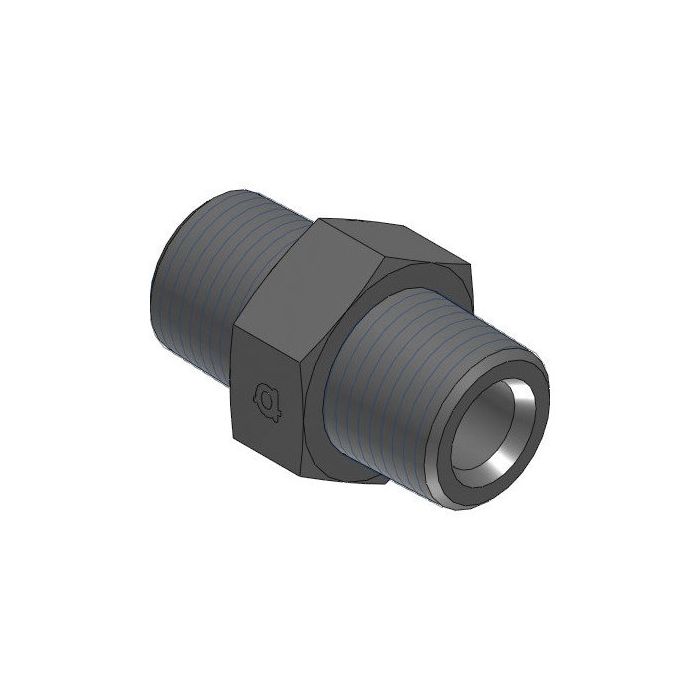

main product photo

Bspt X Npt Nipple

Ask A Question

Description & Features

This straight Adaptall Bspt X NPT Nipple is constructed of steel and features a 1/4" Bspt male end with a R 1/4 - 19 callout and a 1/4" NPT male end with a 1/4 - 18 NPTF callout.

This Bspt X NPT Nipple has an Adaptall Ch Width of 14mm and Adaptall L Length of 37.2mm.

SKU: 9008-04-04

Supplier Part Number (MPN): 9008-04-04

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male BSPT
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN EN 10226-1, ISO 7-1
Dimensions
38.5 mm L
Finish
Zinc-Plated
Fitting Type
Nipple
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9008 Series
Thread Size
1/4-19 x 1/4-18

Product Questions & Answers (3)

Question by: Norm H on Nov 10, 2025, 4:57 PM
Will this nipple work to connect a BSPT fitting to an NPT one?
Answer by: Customer Support on Nov 12, 2025, 8:51 AM
That's exactly what this Adaptall nipple is for. It has a 1/4" BSPT male end and a 1/4" NPT male end, so it'll bridge that gap for you.
Question by: Kurt B on Sep 10, 2025, 10:00 AM
trying to hook a BSPT port to a NPT line, is this the right little nipple for that?
Answer by: Customer Support on Sep 11, 2025, 1:53 PM
For joining those two thread types, it gives you a 1/4 inch BSPT male on one side (R 1/4 - 19) and a 1/4 inch NPTF male on the other (1/4 - 18), in a straight steel nipple.
Question by: Wes E on Dec 23, 2025, 9:30 PM
both ends on this are 1/4 inch, but one's BSPT and the other's NPT, that right? just wanna make sure before I order
Answer by: Customer Support on Dec 25, 2025, 1:22 PM
That's how it's set up. One end is 1/4" BSPT male with an R 1/4-19 thread spec, and the other end is 1/4" NPT male running a 1/4-18 NPTF callout. Both are male, so keep that in mind when you're planning your connection points.
