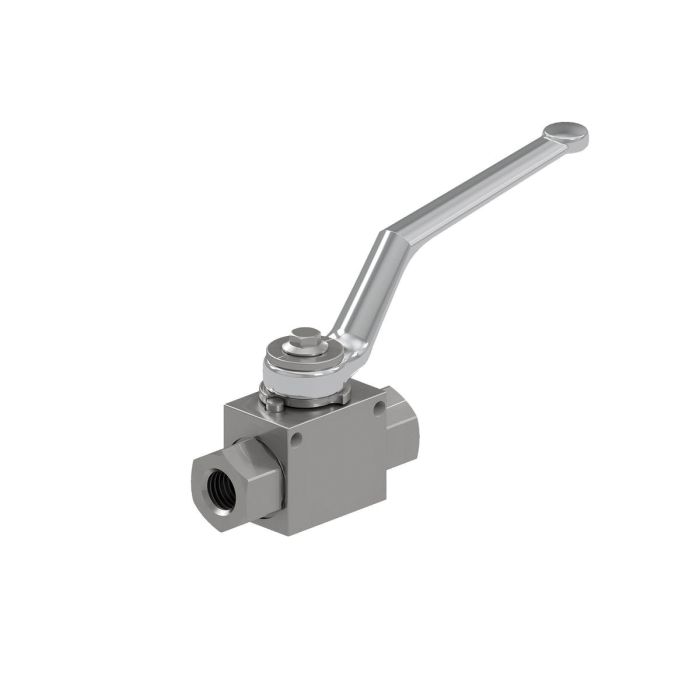

DNP 1/4 NPT BALL VALVE

Description & Features

Rated for high-pressure hydraulic service, the DNP 1/4 NPT Ball Valve is a compact quarter-turn valve designed for reliable flow control in industrial fluid systems. The 1/4 in. NPT threaded connection makes it straightforward to integrate into standard hydraulic lines and manifolds where precise shutoff or flow isolation is required.

Manufactured by DNP Industriale Americas, this valve is built to handle demanding pressure conditions typical of industrial hydraulic circuits. Its ball valve design provides full-bore flow with minimal pressure drop and a positive seal in the closed position, suited for use in hydraulic power units, machine tool circuits, and similar high-cycle applications.

SKU: BV2-04-NPT

Supplier Part Number (MPN): BV2-04-NPT

Alternate Part Numbers: MI-03864115, MINO-11156X00016

Specifications

Brand dnp Americas	Actuator Type Lever	Ball Material Carbon Steel	Body Material Carbon Steel/Stainless Steel	Color Silver	Connection Type FNPT	Dimensions 2.71 in L x 1.3 in W x 1.86 in H	Disc Material Carbon Steel	Finish Silver Trivalent-Plated	Nominal Size 1/4 in	Number of Ports/Ways 2-Way	Number of Positions 2	Operator Type Lever	Packing Material Buna	Port Type Full	Seal Material NBR	Seat Material Delrin	Series BV2 Series	Softgoods Material Buna/Delrin/NBR

Product Questions & Answers (2)

Question by: Joyce H on Jul 2, 2025, 8:42 AM

Can this handle high pressure hydraulic systems, like the kind you find on machine tools?

Answer by: Customer Support on Jul 4, 2025, 6:12 AM

Yes, this DNP ball valve is rated for high-pressure hydraulic service, which makes it suitable for hydraulic power units and machine tool circuits. It's built to handle the demanding pressure conditions you'd typically find in those applications.

Question by: Gary F on Jul 18, 2025, 9:37 AM

got a hydraulic manifold with 1/4 in npt ports, will this valve thread right in or is it some oddball fitting

Answer by: Customer Support on Jul 19, 2025, 11:14 AM

With 1/4 in. NPT threaded connections, it’s meant to screw into standard 1/4 NPT ports on hydraulic lines or manifolds for shutoff or isolation.
