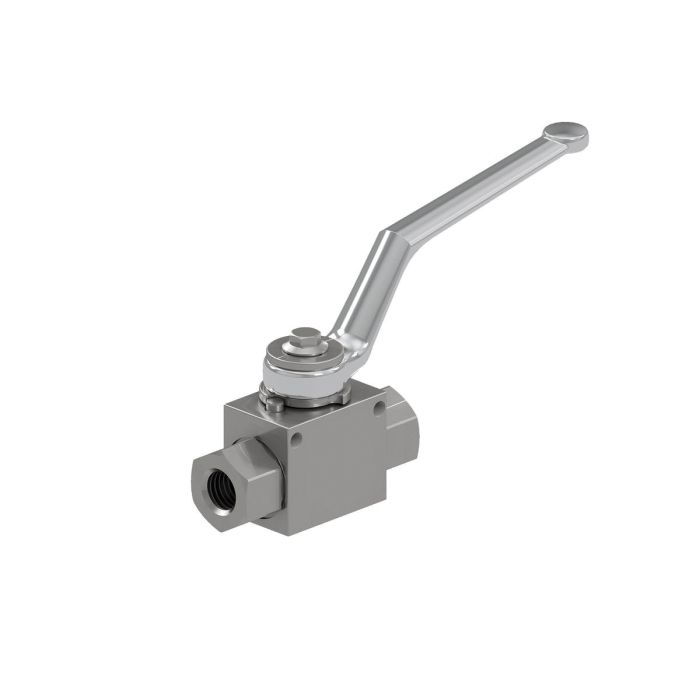

DNP 1/2 NPT BALL VALVE

Description & Features

Rated for high-pressure industrial service, the DNP 1/2 NPT Ball Valve is a 1/2-inch NPT-threaded shutoff valve manufactured by DNP Industriale Americas. Designed for reliable flow control in hydraulic and industrial fluid systems, it is well-suited for installations requiring a compact, threaded valve at standard pipe sizes.

With a pressure rating of 7,250 PSI, this valve handles demanding service conditions where consistent shutoff performance is critical. The NPT thread connection allows for straightforward integration into a wide range of industrial circuits and fluid handling lines.

SKU: BV2-08-NPT

Supplier Part Number (MPN): BV2-08-NPT

Alternate Part Numbers: MI-03864123, MINO-11156X00024

Specifications

Brand dnp Americas	Actuator Type Lever	Ball Material Carbon Steel	Body Material Carbon Steel/Stainless Steel	Color Silver	Connection Type FNPT	Dimensions 2.14 in L x 1.57 in W x 2.14 in H	Disc Material Carbon Steel	Finish Silver Trivalent-Plated	Nominal Size 1/2 in	Number of Ports/Ways 2-Way	Number of Positions 2	Operator Type Lever	Packing Material Buna	Port Type Full	Seal Material NBR	Seat Material Delrin	Series BV2 Series	Softgoods Material Delrin/NBR

Product Questions & Answers (1)

Question by: Carl P on Jan 18, 2026, 9:59 PM

got a little hydraulic power unit with 1/2 npt ports. is this the right kind of valve to shut the line off?

Answer by: Customer Support on Jan 20, 2026, 7:45 PM

For a simple shutoff in a hydraulic or industrial fluid line, this is a 1/2 inch NPT threaded ball valve meant for reliable flow control. It’s built for high pressure industrial service and is rated up to 7,250 PSI.
