DNP 1/2 SAE BALL VALVE

Description & Features

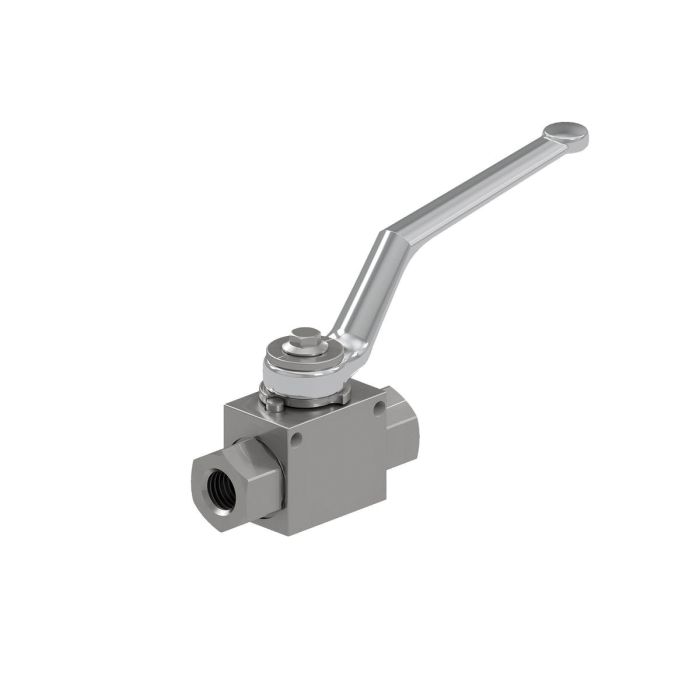

Rated for 5,800 PSI, this 1/2-inch female SAE threaded ball valve from DNP Industriale Americas is built for demanding hydraulic service where reliable shutoff and flow control are required. The SAE thread connection is a common standard in hydraulic circuits, making the DNP 1/2 SAE Ball Valve a practical fit for a wide range of industrial hydraulic systems and equipment.

DNP Industriale is recognized for manufacturing hydraulic valves to consistent quality standards. The 1/2-inch port size suits mid-range flow line applications where a compact, full-bore shutoff is needed without significant pressure drop.

SKU: BV2-08-SAE

Supplier Part Number (MPN): BV2-08-SAE

Alternate Part Numbers: MI-03864125, MINO-11156X00026

Specifications

Brand dnp Americas	Actuator Type Lever	Ball Material Stainless Steel/Steel	Body Material Carbon Steel/Stainless Steel	Color Silver	Connection Type Female SAE	Dimensions 3.27 in L x 1.57 in W x 2.14 in H	Disc Material Carbon Steel	Finish Silver Trivalent-Plated	Nominal Size 1/2 in	Number of Ports/Ways 2-Way	Number of Positions 2	Operator Type Lever	Packing Material Buna	Port Type Full	Seal Material NBR	Seat Material Delrin	Series BV2 Series	Softgoods Material Delrin/NBR

Product Questions & Answers (1)

Question by: Keith A on Feb 1, 2026, 8:43 AM

need a shutoff valve for a 1/2 female SAE line, is this the right kind of connection?

Answer by: Customer Support on Feb 2, 2026, 6:25 PM

For hydraulic circuits that use female SAE threaded ports, the connection style on this valve is the common SAE thread standard, and the port size is 1/2 inch, so it matches that type of setup.
