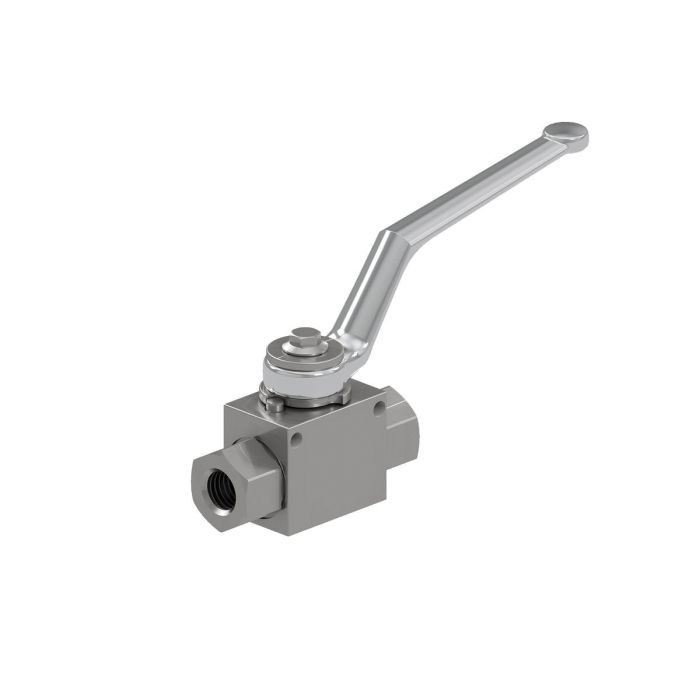

DNP 1 NPT BALL VALVE

Description & Features

Rated for high-pressure industrial service, the DNP 1 NPT Ball Valve is a 1-inch full-port valve designed for reliable on/off flow control in hydraulic and fluid power systems. Manufactured by DNP Industriale Americas, it is built to handle demanding pressure requirements consistent with the DNP 5250 PSI performance range.

The NPT threaded connection makes it compatible with standard industrial pipe fittings, allowing straightforward integration into existing hydraulic circuits and fluid handling lines. Its compact ball valve design provides quick quarter-turn actuation, minimizing pressure drop and supporting efficient flow management in both mobile and stationary hydraulic applications.

SKU: BV2-16-NPT

Supplier Part Number (MPN): BV2-16-NPT

Alternate Part Numbers: MI-03864136, MINO-11156X00036

Specifications

Brand dnp Americas	Actuator Type Lever	Ball Material Carbon Steel	Body Material Carbon Steel/Stainless Steel	Color Silver	Connection Type FNPT	Dimensions 4.45 in L x 2.17 in W x 3.27 in H	Disc Material Carbon Steel	Finish Silver Trivalent-Plated	Nominal Size 1 in	Number of Ports/Ways 2-Way	Number of Positions 2	Operator Type Lever	Packing Material Buna	Port Type Full	Seal Material NBR	Seat Material Delrin	Series BV2 Series	Softgoods Material Buna/Delrin/NBR

Product Questions & Answers (2)

Question by: Eddie R on Sep 21, 2025, 3:02 PM

This is a full-port valve, right? Just want to make sure it won't choke down the flow too much.

Answer by: Customer Support on Sep 22, 2025, 3:11 PM

That's correct. This DNP ball valve features a full-port design to minimize pressure drop and ensure efficient flow, which is what you want in a hydraulic system.

Question by: Brett T on Nov 5, 2025, 1:07 PM

need a simple on/off shutoff for a hydraulic line. is this one a quarter turn valve or do you have to spin it a bunch

Answer by: Customer Support on Nov 6, 2025, 8:42 PM

Quarter-turn actuation is the whole idea here. It uses a ball valve design, so you go from open to closed with a quick 90 degree turn for straightforward on and off flow control.
