main product photo

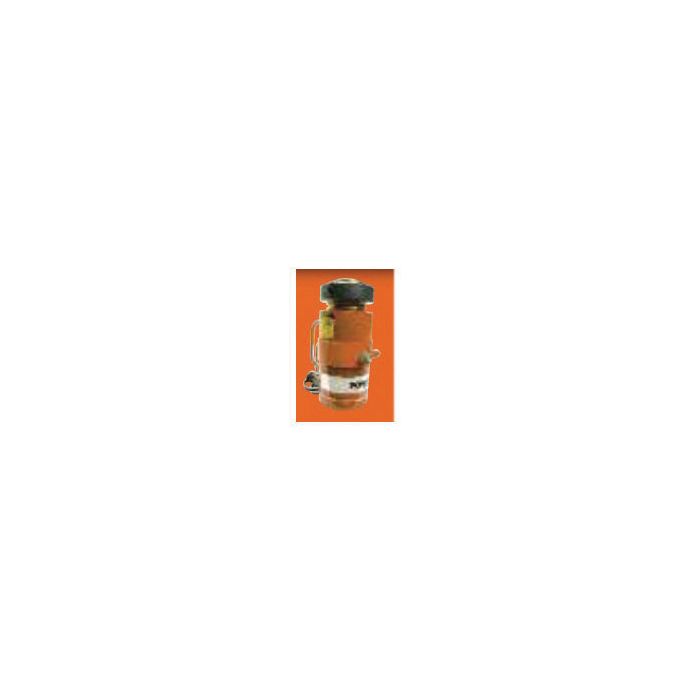

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

Ask A Question

Description & Features

The C Series General Purpose Single-Acting Cylinder features a 25-ton capacity with an inch rod and inch stroke, suitable for lifting and pressing applications. This cylinder is engineered to meet ASME B30.1 standards at 10,000 PSI.

Constructed with a solid steel body for enhanced durability, it includes an aluminum bronze bearing to minimize wear from off-center loads. The chrome-plated piston rod is designed to resist wear and corrosion, ensuring a longer service life. This C Series General Purpose Single-Acting Cylinder has base mounting holes standard and utilizes a 3/8" NPTF female half coupler.

SKU: C252C

Supplier Part Number (MPN): C252C

Alternate Part Numbers: C1JN59

Specifications

Capacity (tons)
25
Cylinder Effective Area (sq in)
5.15
Brand
HYDRAULIC TECH USA LLC(SPX)
Brand
Hydraulic Tech USA
Pack Size
1.00
UOM
EA
Extended Height
8.50
Alternate Part Numbers
Alternate Part Number C1JN59
Supplier Part Number
C252C
Product Weight
14.27 lbs

Similar Products

Model Number Capacity (tons) Stroke Oil Capacity Retracted Height Extended Height Thread 1 Piston Rod Diameter H Thread 2 Cylinder Effective Area (sq in) Price Action
C Series General Purpose Single-Acting Cylinder, 100 Ton, Inch Rod, Inch Stroke

C1006C C Series Single-Acting Cylinder

100

19.875

20.62

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C1010C C Series Single-Acting Cylinder

10

23.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C101C C Series Single-Acting Cylinder

10

4.625

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C102C C Series Single-Acting Cylinder

10

6.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C104C C Series Single-Acting Cylinder

10

10.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C106C C Series Single-Acting Cylinder

10

15.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C108C C Series Single-Acting Cylinder

10

19.875

2.236

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C152C C Series Single-Acting Cylinder

15

8

3.142

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C154C C Series Single-Acting Cylinder

15

12

3.142

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C156C C Series Single-Acting Cylinder

15

16.813

3.142

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C2514C C Series Single-Acting Cylinder

25

33

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C252C C Series Single-Acting Cylinder

25

8.5

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C254C C Series Single-Acting Cylinder

25

12.5

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C256C C Series Single-Acting Cylinder

25

17

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C258C C Series Single-Acting Cylinder

25

21

5.15

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C51C C Series Single-Acting Cylinder

5

5.438

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C53C C Series Single-Acting Cylinder

5

9.75

0.994

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C5513C C Series Single-Acting Cylinder

55

31.375

11.04

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C554C C Series Single-Acting Cylinder

55

13.375

11.04

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C556C C Series Single-Acting Cylinder

55

17.375

11.04

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C57C C Series Single-Acting Cylinder

5

18

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C59C C Series Single-Acting Cylinder

5

22

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C55C C Series Single-Acting Cylinder

5

13.75

0.994

Product Questions & Answers (2)

Question by: Bobby W on Apr 24, 2025, 7:46 AM
Hey, will this cylinder fit in place of a C1JN59? Just need to make sure before I order.
Answer by: Customer Support on Apr 26, 2025, 6:56 AM
This cylinder is indeed a direct replacement; C1JN59 is listed as an alternate part number for this model.
Question by: Neil B on Apr 29, 2025, 6:30 AM
got a C1JN59 cylinder on one of our rigs. is the C252C the same thing or am i barkin up the wrong tree
Answer by: Customer Support on Apr 30, 2025, 7:04 AM
For replacement purposes, C252C and C1JN59 are listed as alternate part numbers for the same 25 ton C Series single acting cylinder.
