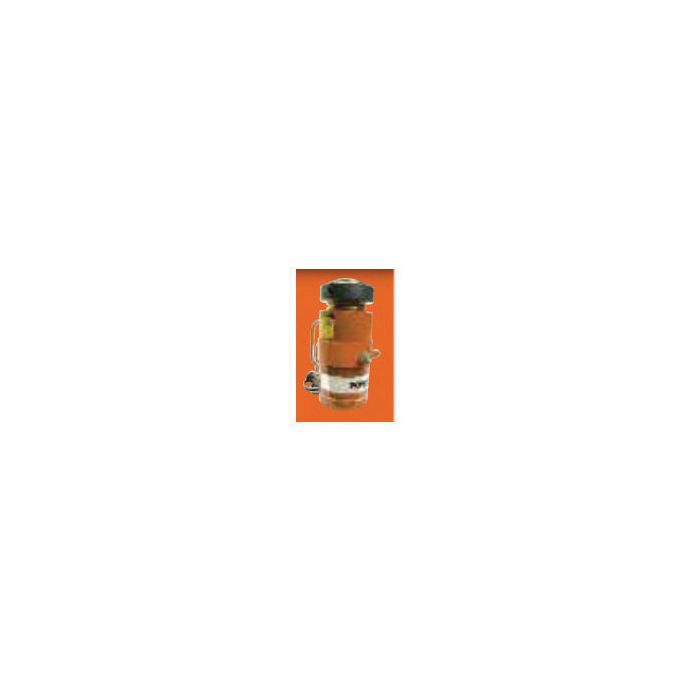

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

Ask A Question

Description & Features

Rated at 25 tons and built to ASME B30.1 standards at 10,000 PSI, the C Series General Purpose Single-Acting Cylinder is a solid-steel, single-acting hydraulic cylinder suited for lifting and pressing applications across industrial environments. With a cylinder effective area of 5.15 sq in and an extended height of 12.5 inches, it delivers consistent, high-force output in a compact form factor.

Construction centers on durability and long service life: the chrome-plated piston rod resists wear and corrosion, while an aluminum bronze bearing helps manage off-center loading. Maximum-sized return springs speed piston retraction and extend spring service life. Base mounting holes are standard on this cylinder, and a 3/8" NPTF female half coupler is included. A wide range of accessories can be threaded onto the piston rod, collar, or cylinder base, giving this unit considerable adaptability across tooling setups.

SKU: C254C

Supplier Part Number (MPN): C254C

Alternate Part Numbers: C1JN60

Specifications

Capacity (tons)
25
Cylinder Effective Area (sq in)
5.15
Brand
HYDRAULIC TECH USA LLC(SPX)
Brand
Hydraulic Tech USA
Pack Size
1.00
UOM
EA
Extended Height
12.50
Alternate Part Numbers
Alternate Part Number C1JN60
Supplier Part Number
C254C
Product Weight
17.60 lbs

Similar Products

Model Number Capacity (tons) Stroke Oil Capacity Retracted Height Extended Height Thread 1 Piston Rod Diameter H Thread 2 Cylinder Effective Area (sq in) Price Action
C Series General Purpose Single-Acting Cylinder, 100 Ton, Inch Rod, Inch Stroke

C1006C C Series Single-Acting Cylinder

100

19.875

20.62

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C1010C C Series Single-Acting Cylinder

10

23.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C101C C Series Single-Acting Cylinder

10

4.625

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C102C C Series Single-Acting Cylinder

10

6.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C104C C Series Single-Acting Cylinder

10

10.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C106C C Series Single-Acting Cylinder

10

15.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C108C C Series Single-Acting Cylinder

10

19.875

2.236

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C152C C Series Single-Acting Cylinder

15

8

3.142

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C154C C Series Single-Acting Cylinder

15

12

3.142

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C156C C Series Single-Acting Cylinder

15

16.813

3.142

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C2514C C Series Single-Acting Cylinder

25

33

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C252C C Series Single-Acting Cylinder

25

8.5

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C254C C Series Single-Acting Cylinder

25

12.5

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C256C C Series Single-Acting Cylinder

25

17

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C258C C Series Single-Acting Cylinder

25

21

5.15

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C51C C Series Single-Acting Cylinder

5

5.438

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C53C C Series Single-Acting Cylinder

5

9.75

0.994

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C5513C C Series Single-Acting Cylinder

55

31.375

11.04

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C554C C Series Single-Acting Cylinder

55

13.375

11.04

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C556C C Series Single-Acting Cylinder

55

17.375

11.04

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C57C C Series Single-Acting Cylinder

5

18

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C59C C Series Single-Acting Cylinder

5

22

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C55C C Series Single-Acting Cylinder

5

13.75

0.994

Product Questions & Answers (2)

Question by: Norm H on Sep 2, 2025, 3:52 PM
got a 10,000 psi hand pump already. will this 25 ton cylinder run right on that setup?
Answer by: Customer Support on Sep 4, 2025, 9:05 AM
Built to ASME B30.1 at 10,000 PSI, this cylinder is meant to be used on a 10,000 PSI hydraulic system. It comes with a 3/8 inch NPTF female half coupler, so it is set up for common high pressure hose and pump connections in that range.
Question by: Scott R on Jul 2, 2025, 3:39 PM
Hey, is there any way to bolt this thing down?
Answer by: Customer Support on Jul 4, 2025, 7:00 AM
You bet, it comes standard with base mounting holes.
