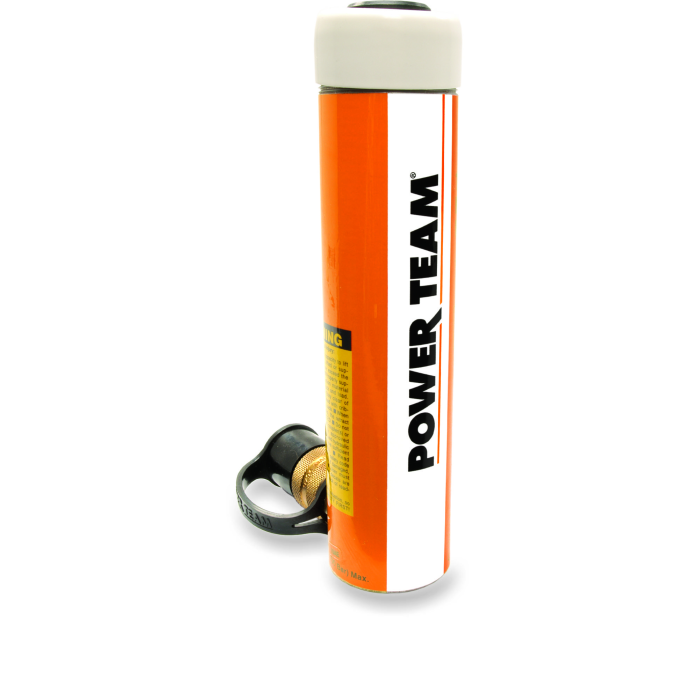

main product photo

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

Ask A Question

Description & Features

Rated at 5 tons and built to ASME B30.1 standards at 10,000 PSI, the C Series General Purpose Single-Acting Cylinder is a solid steel, single-acting hydraulic cylinder suited for lifting and pressing applications across industrial environments. The chrome-plated piston rod resists wear and corrosion, while an aluminum bronze bearing helps manage stress from off-center loads. Maximum-sized internal springs promote fast piston return and extended spring life.

Base mounting holes are standard on this cylinder, and a 3/8" NPTF female half coupler is included. A wide range of accessories can be threaded onto the piston rod, collar, or cylinder base, offering flexibility across different setups. Extended height is 13.75 inches, with a cylinder effective area of 0.994 sq in.

SKU: C55C

Supplier Part Number (MPN): C55C

Alternate Part Numbers: C1JN69, MI-00841918, MINO-00630X05838

Specifications

Capacity (tons)
5
Cylinder Effective Area (sq in)
0.99
Brand
HYDRAULIC TECH USA LLC(SPX)
Brand
Hydraulic Tech USA
Pack Size
1.00
UOM
EA
Extended Height
13.75
Alternate Part Numbers
Alternate Part Number C1JN69, Alternate Part Number MI-00841918, Alternate Part Number MINO-00630X05838
Supplier Part Number
C55C
Product Weight
4.39 lbs

Similar Products

Model Number Capacity (tons) Stroke Oil Capacity Retracted Height Extended Height Thread 1 Piston Rod Diameter H Thread 2 Cylinder Effective Area (sq in) Price Action
C Series General Purpose Single-Acting Cylinder, 100 Ton, Inch Rod, Inch Stroke

C1006C C Series Single-Acting Cylinder

100

19.875

20.62

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C1010C C Series Single-Acting Cylinder

10

23.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C101C C Series Single-Acting Cylinder

10

4.625

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C102C C Series Single-Acting Cylinder

10

6.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C104C C Series Single-Acting Cylinder

10

10.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C106C C Series Single-Acting Cylinder

10

15.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C108C C Series Single-Acting Cylinder

10

19.875

2.236

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C152C C Series Single-Acting Cylinder

15

8

3.142

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C154C C Series Single-Acting Cylinder

15

12

3.142

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C156C C Series Single-Acting Cylinder

15

16.813

3.142

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C2514C C Series Single-Acting Cylinder

25

33

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C252C C Series Single-Acting Cylinder

25

8.5

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C254C C Series Single-Acting Cylinder

25

12.5

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C256C C Series Single-Acting Cylinder

25

17

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C258C C Series Single-Acting Cylinder

25

21

5.15

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C51C C Series Single-Acting Cylinder

5

5.438

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C53C C Series Single-Acting Cylinder

5

9.75

0.994

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C5513C C Series Single-Acting Cylinder

55

31.375

11.04

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C554C C Series Single-Acting Cylinder

55

13.375

11.04

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C556C C Series Single-Acting Cylinder

55

17.375

11.04

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C57C C Series Single-Acting Cylinder

5

18

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C59C C Series Single-Acting Cylinder

5

22

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C55C C Series Single-Acting Cylinder

5

13.75

0.994

Product Questions & Answers (1)

Question by: Brent R on Aug 20, 2025, 7:55 PM
got a 10,000 psi hand pump already. will this 5 ton cylinder run right on that, or am i askin for trouble
Answer by: Customer Support on Aug 22, 2025, 6:05 AM
For pressure, you are in the right range. This cylinder is built to ASME B30.1 standards at 10,000 PSI, so a 10,000 PSI hydraulic pump setup matches what it is rated for.
