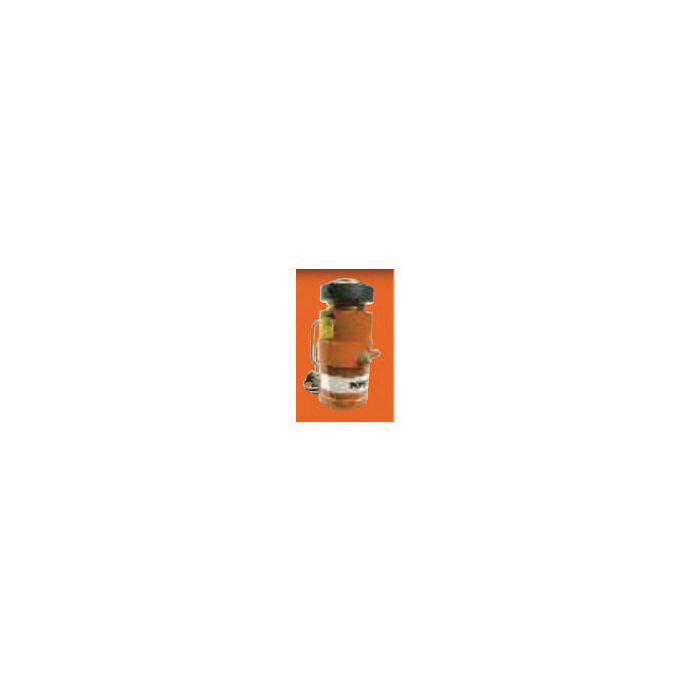

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

Ask A Question

Description & Features

The SPX Hydraulic Technologies C Series General Purpose Single-Acting Cylinder is engineered for demanding industrial applications, offering a robust 5-ton lifting capacity. Its solid steel cylinder body ensures exceptional durability, while the chrome-plated piston rod is designed to resist wear and corrosion. An aluminum bronze bearing reduces wear from off-center loads, enhancing reliability and performance.

This cylinder features a 0.994 square inch effective area and an extended height of 18 inches. It is compatible with a wide range of accessories that can be threaded onto the piston rod, collar, or cylinder base, providing versatility for various tasks. Standard base mounting holes make it suitable for lifting and pressing use. The unit also includes a 3/8" NPTF female half coupler, aligning with ASME B30.1 standards for 10,000 PSI pressure handling.

SKU: C57C

Supplier Part Number (MPN): C57C

Alternate Part Numbers: C1KL36

Specifications

Capacity (tons)
5
Cylinder Effective Area (sq in)
0.99
Brand
HYDRAULIC TECH USA LLC(SPX)
Brand
Hydraulic Tech USA
Pack Size
1.00
UOM
EA
Extended Height
18
Alternate Part Numbers
Alternate Part Number C1KL36
Supplier Part Number
C57C
Product Weight
4.97 lbs

Similar Products

Model Number Capacity (tons) Stroke Oil Capacity Retracted Height Extended Height Thread 1 Piston Rod Diameter H Thread 2 Cylinder Effective Area (sq in) Price Action
C Series General Purpose Single-Acting Cylinder, 100 Ton, Inch Rod, Inch Stroke

C1006C C Series Single-Acting Cylinder

100

19.875

20.62

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C1010C C Series Single-Acting Cylinder

10

23.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C101C C Series Single-Acting Cylinder

10

4.625

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C102C C Series Single-Acting Cylinder

10

6.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C104C C Series Single-Acting Cylinder

10

10.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C106C C Series Single-Acting Cylinder

10

15.875

2.236

C Series General Purpose Single-Acting Cylinder, 10 Ton, Inch Rod, Inch Stroke

C108C C Series Single-Acting Cylinder

10

19.875

2.236

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C152C C Series Single-Acting Cylinder

15

8

3.142

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C154C C Series Single-Acting Cylinder

15

12

3.142

C Series General Purpose Single-Acting Cylinder, 15 Ton, Inch Rod, Inch Stroke

C156C C Series Single-Acting Cylinder

15

16.813

3.142

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C2514C C Series Single-Acting Cylinder

25

33

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C252C C Series Single-Acting Cylinder

25

8.5

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C254C C Series Single-Acting Cylinder

25

12.5

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C256C C Series Single-Acting Cylinder

25

17

5.15

C Series General Purpose Single-Acting Cylinder, 25 Ton, Inch Rod, Inch Stroke

C258C C Series Single-Acting Cylinder

25

21

5.15

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C51C C Series Single-Acting Cylinder

5

5.438

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C53C C Series Single-Acting Cylinder

5

9.75

0.994

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C5513C C Series Single-Acting Cylinder

55

31.375

11.04

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C554C C Series Single-Acting Cylinder

55

13.375

11.04

C Series General Purpose Single-Acting Cylinder, 55 Ton, Inch Rod, Inch Stroke

C556C C Series Single-Acting Cylinder

55

17.375

11.04

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C57C C Series Single-Acting Cylinder

5

18

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C59C C Series Single-Acting Cylinder

5

22

0.994

C Series General Purpose Single-Acting Cylinder, 5 Ton, Inch Rod, Inch Stroke

C55C C Series Single-Acting Cylinder

5

13.75

0.994

Product Questions & Answers (1)

Question by: Bobby S on Aug 6, 2025, 12:27 PM
got a pump with a 3/8 NPTF line on it, is that gonna hook right up to this cylinder or am i chasing adapters?
Answer by: Customer Support on Aug 7, 2025, 4:18 PM
Comes standard with a 3/8 inch NPTF female half coupler, so it matches up to a 3/8 NPTF connection without needing to change the cylinder side.
