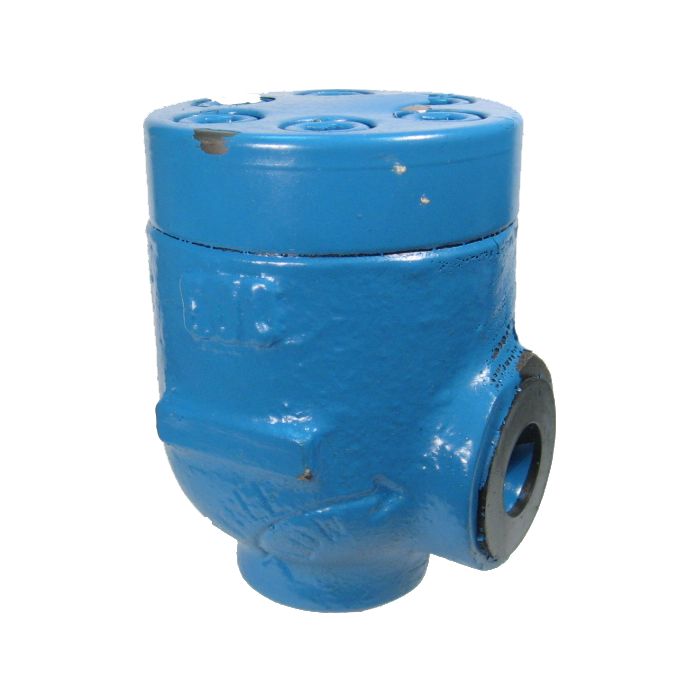

C2-8 Series Right Angle Check Valves, Up To 3000 PSI, Up To 100 GPM
Description & Features
| Group Description | Right Angle Check Valves are designed for higher flows with less pressure drop. The valves' seat and poppet are of hardened and ground steel for improved cycle life. |
| Maximum Operating Pressure | 3000 PSI. |
Products
| Model Number | Part Number | Ports | Cracking Pressure (psi) | Rated Flow | Peak Pressure Drop | Seal Material | Dimensions | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
C2-815 C2-8 Series Check Valve |
094029 |
3/4 NPT |
5 |
16 |
20 |
Buna-N |
A=3.88 B=1.75 C=2.00 D=2.75 E=1.81 F=3.19 |
|
Product Questions & Answers (1)
Question by: Dwayne M on Sep 13, 2025, 5:45 PM
What size threads are on this check valve?
Answer by: Customer Support on Sep 15, 2025, 6:04 AM
These check valves come with 3/4 NPT ports.
