06MBT-06MJ STRAIGHT

Description & Features

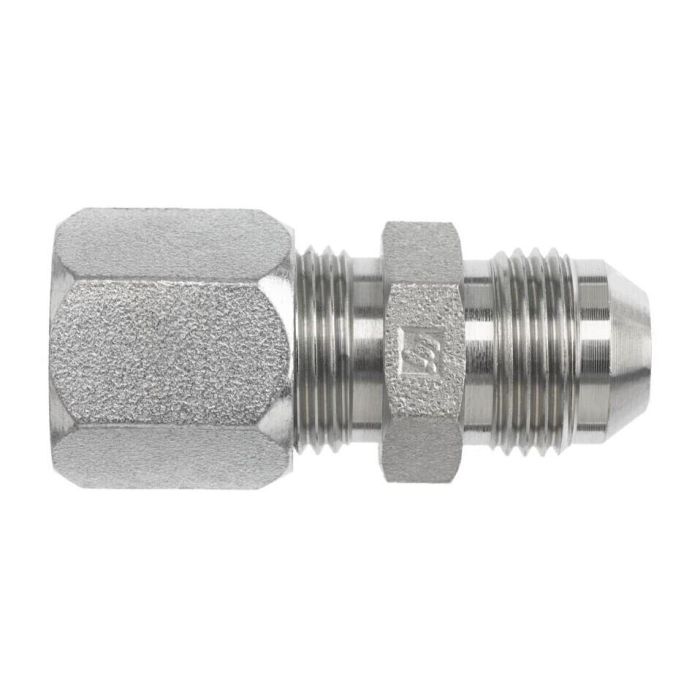

The 06MBT-06MJ Straight fitting from Brennan Industries Inc ensures reliable connectivity in various industrial applications. Engineered with precision this component features a 9/16-18 TUBE OD 3/8 thread B1 size and 9/16-18 MALE JIC SAE 37 Degree Flare thread B2 size adhering to SAE J514 specifications.

Its series C2402 offers compatibility and ease of installation highlighted by a C hex dimension of 0.250 mm and a drill size of 0.281 mm for both threads. Built for robust performance it maintains durability while providing a seamless connection between components.

Supplier Part Number: C2402-06-06

California Residents: PROP-65 WARNING

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number C2402-06-06	Product Weight 0.10 lbs

Product Questions & Answers (2)

Question by: Darryl F on May 20, 2025, 10:09 AM

Does this fitting use the same thread size on both ends, or are we looking at two different specs here?

Answer by: Customer Support on May 21, 2025, 7:47 PM

Both ends run 9/16-18 threads, so you're working with a uniform size across the connection. One side is a tube OD 3/8 bite type and the other is a Male JIC SAE 37 degree flare, so the thread pitch matches up even though the end types differ. That's worth keeping in mind when you're planning your line layout.

Question by: Tony W on Dec 1, 2025, 7:16 PM

i got a hose end that’s 3/8 tube OD, is this the right straight adapter to go over to a male JIC?

Answer by: Customer Support on Dec 3, 2025, 9:26 AM

For a straight connection, it matches a 3/8 tube OD side with 9/16-18 threads on B1, and the other end is a 9/16-18 male JIC SAE 37 degree flare (SAE J514) on B2.
