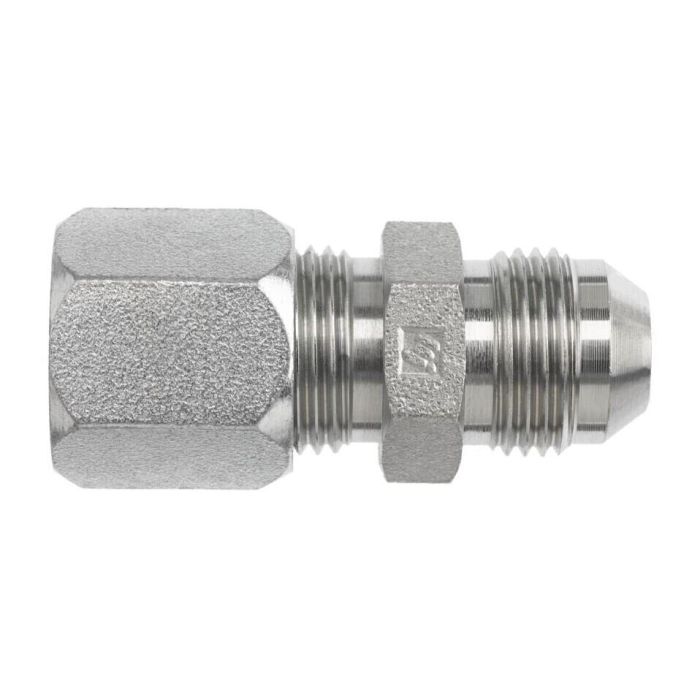

10BT-10MJ STRAIGHT

Description & Features

The 10BT-10MJ Straight from Brennan Industries Inc is engineered to meet the rigorous demands of industrial applications.

Manufactured to SAE J514 standards it features a 7/8-14 male JIC SAE 37-degree flare and a 7/8-14 Tube OD 5/8 connection ensuring dependable performance and compatibility.

The C2402 series product offers a C Hex size of 0.310 mm with drill measurements of Thread B1 at 0.539 mm and Thread B2 at 0.484 mm facilitating precise installation.

Ideal for use in various industrial settings this adapter supports efficient fluid transfer systems.

Tight tolerances and robust construction make it suitable for high-pressure environments enhancing overall system reliability.

Compliant with stringent industry standards it ensures seamless integration into existing setups.

MPN: {{ecc_mpn}}

Supplier Part Number: C2402-10-10

Specifications

Brand BRENNAN	Connection Size 1 5/8 in	Connection Size 2 5/8 in	Connection Type Bite, Male JIC	Connection Type 1 SAE Flareless Bite	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series C2402 Series	Thread Size 7/8-14

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
C2402-04-04	1/4 in	1/4 in	7/16-20	1/2 in
C2402-06-06	3/8 in	3/8 in	9/16-18	5/8 in
C2402-08-08	1/2 in	1/2 in	3/4-16	0.81 in
C2402-12-12	3/4 in	3/4 in	1-1/16-12	1-1/8 in
C2402-16-16	1 in	1 in	1-5/16-12	1-3/8 in
C2402-24-24	1-1/2 in	1-1/2 in	1-7/8-12	0.485
C2402-32-32	2 in	2 in	2-1/2-12	0.485

Product Questions & Answers (2)

Question by: Warren C on Sep 11, 2025, 6:46 PM

got a hose end with a 7/8-14 male JIC 37° flare, will this adapter match up with it?

Answer by: Customer Support on Sep 13, 2025, 6:03 AM

The B2 side on this adapter is a 7/8-14 male JIC SAE 37 degree flare built to SAE J514, so it matches the thread and flare style you mentioned on that connection.

Question by: Kirk E on Jan 4, 2026, 9:06 PM

Reckon this'll fit if I'm usin' a 5/8" OD tube?

Answer by: Customer Support on Jan 6, 2026, 6:35 AM

this straight adapter has a 7/8-14 thread size on both ends, with one side made for a 5/8" OD tube.
