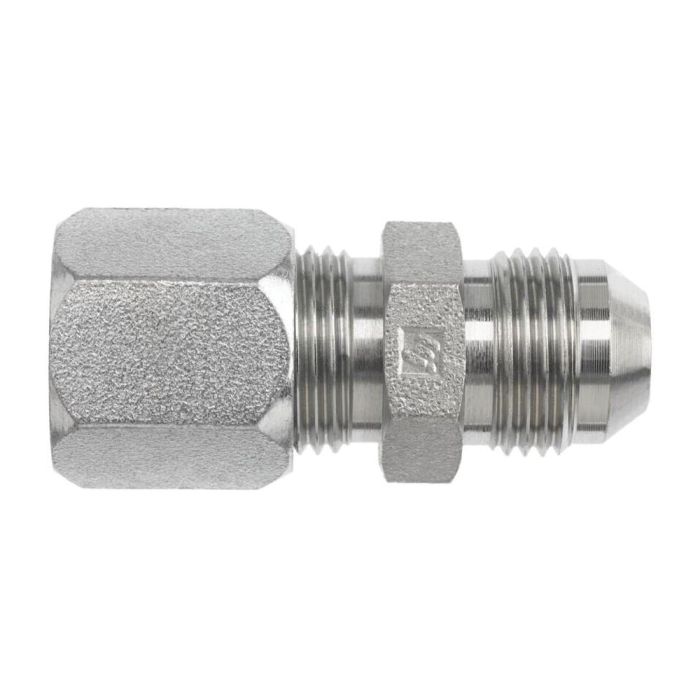

3/4 STEEL TUBING COMPRESSION X 3/4 MJIC

Ask A Question

Description & Features

The 3/4 steel tubing compression x 3/4 MJIC from Brennan Industries Inc is designed for high-performance connections in industrial applications. Featuring a robust design this component ensures reliable and durable operations.

Constructed with precision it incorporates a 1 1/16-12 thread size per the SAE J514 specification for secure fitting. The TUBE OD 3/4 and MALE JIC SAE 37 degree flare provide optimal compatibility with various industrial setups.

Fabricated from high-quality materials the compression fitting delivers a dependable solution for demanding environments. The series C2402 guarantees that this part meets stringent industry standards.

Supplier Part Number: C2402-12-12

California Residents: PROP-65 WARNING

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Bite, Male JIC
Connection Type 1
SAE Flareless Bite
Connection Type 2
Male SAE JIC
Dimension Standards
SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/8 in
igs Only
With igs
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
4500 psi
Series
C2402 Series
Thread Size
1-1/16-12

Product Questions & Answers (3)

Question by: Dustin K on Mar 1, 2026, 12:28 PM
got a piece of 3/4 steel tube, will this fitting go from that compression side over to a 3/4 JIC male end?
Answer by: Customer Support on Mar 2, 2026, 8:19 PM
Built for that exact transition, one side is a 3/4 inch tube OD compression connection and the other side is a 3/4 male JIC 37 degree flare (SAE J514).
Question by: Daryl P on Jul 14, 2025, 12:31 PM
Reckon this fitting would hold up okay in a hydraulic system for farm equipment?
Answer by: Customer Support on Jul 15, 2025, 1:44 PM
Designed for high-performance connections, this fitting from Brennan Industries is suitable for demanding environments, so it should be a reliable solution in your hydraulic system, provided the specs match your equipment.
Question by: Darryl R on Aug 30, 2025, 6:25 AM
got a 3/4 tube line running off a hydraulic pump and need to tie into a JIC fitting setup, this the right adapter to make that connection?
Answer by: Customer Support on Aug 31, 2025, 5:15 PM
For a 3/4 OD steel tube on one end and a 3/4 male JIC on the other, yes, that's exactly what this fitting handles. The compression side grabs the tube OD directly, and the male JIC end uses a 37 degree flare seat per SAE J514, with a 1 1/16-12 thread on both ends. Brennan's C2402 series is built for that kind of transition in working hydraulic lines, so the connection should be solid as long as your tube OD and mating JIC port match up.
