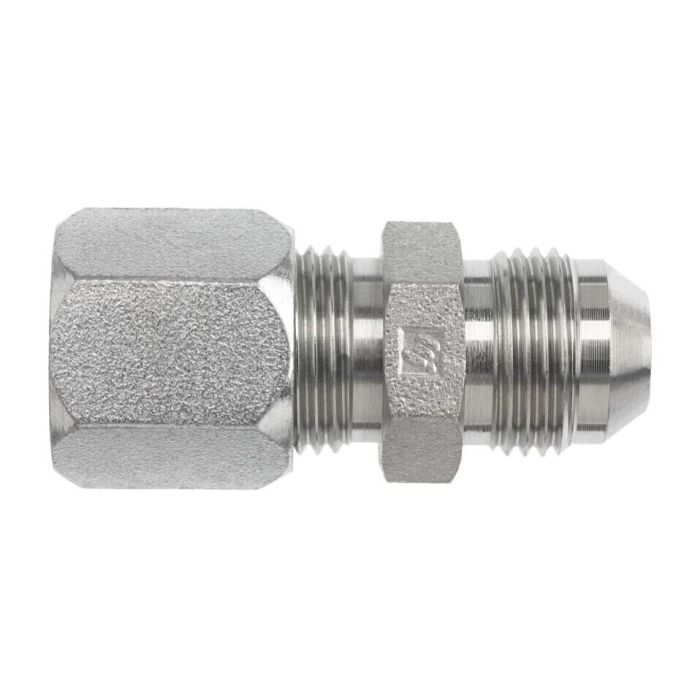

16BT-16MJ STRAIGHT

Description & Features

The 16BT-16MJ Straight adapter from Brennan Industries Inc. is engineered for precision-oriented industrial applications. This component part of the C2402 series meets SAE J514 standards ensuring reliability and superior performance for your projects.

Featuring a thread size of 1-5/16-12 for both B1 and B2 ends it is designed for secure and robust connections. The B1 end has a thread type of Tube OD 1 while the B2 end is a Male JIC SAE 37 Degree Flare providing versatile compatibility for various setups.

Manufactured with exacting specifications including a C Hex measurement of 0.415 mm this adapter guarantees consistent high-quality results.

Supplier Part Number: C2402-16-16

Specifications

Brand BRENNAN	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Bite, Male JIC	Connection Type 1 SAE Flareless Bite	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-3/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 4000 psi	Series C2402 Series	Thread Size 1-5/16-12

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
C2402-04-04	1/4 in	1/4 in	7/16-20	1/2 in
C2402-06-06	3/8 in	3/8 in	9/16-18	5/8 in
C2402-08-08	1/2 in	1/2 in	3/4-16	0.81 in
C2402-10-10	5/8 in	5/8 in	7/8-14
C2402-12-12	3/4 in	3/4 in	1-1/16-12	1-1/8 in
C2402-24-24	1-1/2 in	1-1/2 in	1-7/8-12	0.485
C2402-32-32	2 in	2 in	2-1/2-12	0.485

Product Questions & Answers (1)

Question by: Ralph M on Nov 6, 2025, 6:33 PM

thread size on both ends is 1-5/16-12 right? just wanna make sure before i order a couple of these for a line i'm putting together

Answer by: Customer Support on Nov 8, 2025, 6:55 AM

Both ends do run the same 1-5/16-12 thread size. The B1 end is a tube OD connection and the B2 end is a Male JIC SAE 37 degree flare, so while the thread pitch matches up, the connection types are different on each side. Worth keeping that in mind when you're laying out your fittings.
