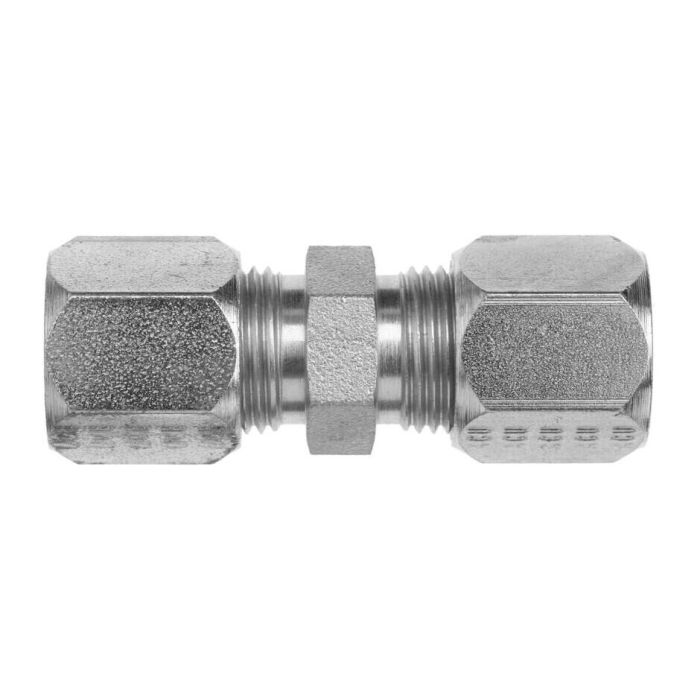

05BT-05BT TUBE UNION STRAIGHT

Description & Features

This straight tube union features a 5/16 in. tube OD, making it suitable for connecting same-size tubes in hydraulic systems. The 05BT-05BT TUBE UNION STRAIGHT is manufactured with precision to ensure a secure and leak-free connection.

It is part of the Brennan C2403 series and features a B1 drill size of 0.234 in. with a 1/2-20 B1 thread. The fitting has a C hex size of 0.562 in. and an overall length of 1.180 in.

SKU: C2403-05-05

Supplier Part Number (MPN): C2403-05-05

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number C2403-05-05	Product Weight 0.12 lbs

Product Questions & Answers (3)

Question by: Lance F on Mar 1, 2026, 8:12 AM

Is this somethin' I can use to hook up two 5/16" lines together?

Answer by: Customer Support on Mar 2, 2026, 10:22 AM

Yes, this straight tube union is designed to connect two tubes that both have a 5/16 inch outer diameter.

Question by: Jimmy J on Nov 3, 2025, 4:50 PM

got a couple 5/16 tube lines to tie together, is this the right union for that?

Answer by: Customer Support on Nov 5, 2025, 4:10 PM

For joining two same size tubes, it’s set up for 5/16 in. tube OD on both ends, so it’s a straight tube union meant to connect 5/16 tubing to 5/16 tubing.

Question by: Gene P on Nov 24, 2025, 10:32 AM

got a couple of 5/16 tubes I need to join end to end, this the right fitting for that?

Answer by: Customer Support on Nov 26, 2025, 6:29 AM

That's what this union is built for. Both ends are sized for 5/16 in. tube OD, so you're making a straight inline connection between two same-size tubes. The overall length runs 1.180 in. and the hex comes in at 0.562 in., so it's a compact fitting that won't take up much room in a tight hydraulic connections run.
