TUBE UNION

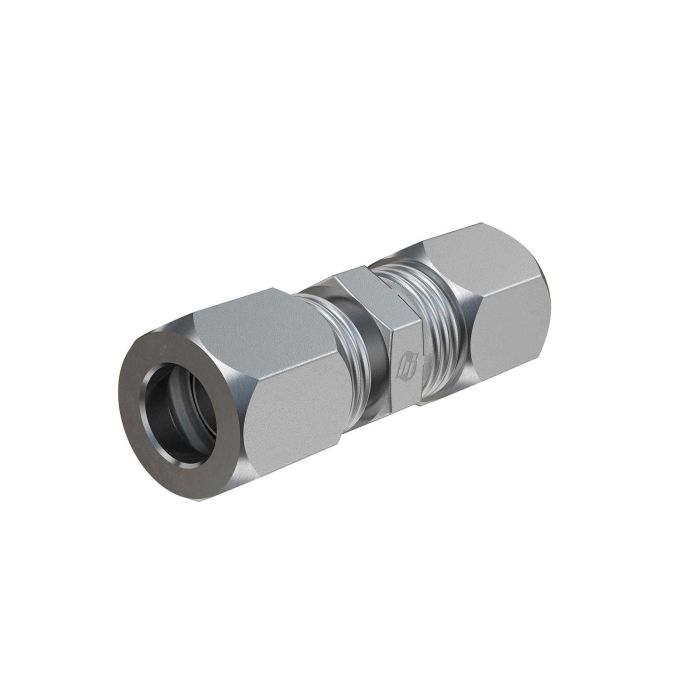

Designed for straight inline connections in high-pressure hydraulic systems, this 2-inch tube OD Tube Union from Brennan Industries provides a rigid, metal-to-metal joining point between two tube ends of equal size. Both ports share a 2-1/2-12 UNF thread and a 1.813-inch drill diameter, making this a symmetrical, same-size connection on each end.

With an overall length of 2.110 inches and a 2.625-inch hex across the flats, the fitting is sized for use with standard hydraulic wrenching in demanding industrial environments. The K1 and K2 seat depths are each 0.485 inches, consistent with 37-degree flare (JIC) or similar tube end configurations. Part of Brennan's C2403 series, this union is suited for use in hydraulic circuits where a straight, in-line tube junction is required without change in direction or reduction in port size.

SKU: C2403-32-32

Supplier Part Number (MPN): C2403-32-32
