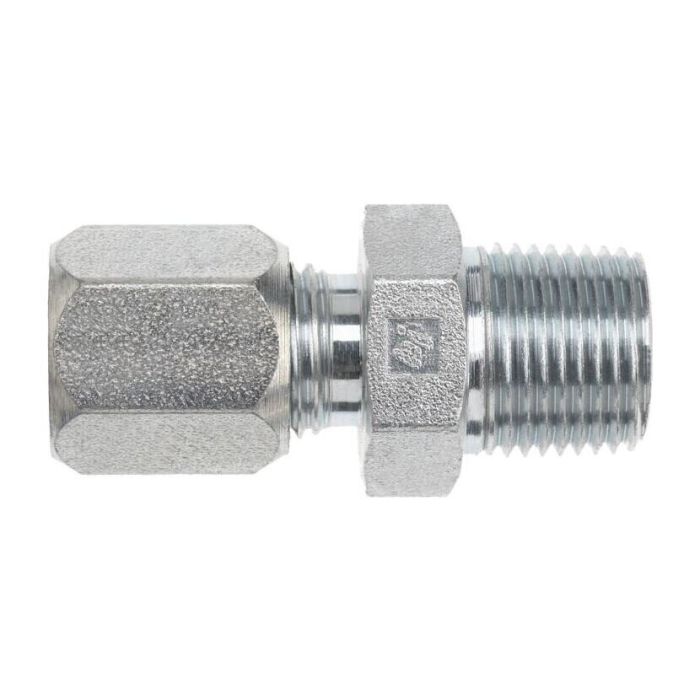

05BT-04MP Straight

Description & Features

Designed for reliable performance in hydraulic systems, the 05BT-04MP Straight fitting from Brennan Industries offers robust connectivity with a 1/2-20 thread and a 1/4-18 NPTF configuration. Crafted to meet demanding industrial needs, this component features a tube outer diameter of 5/16 inches, ensuring compatibility with a variety of tube sizes. The fitting's dimensions include a hex size of 0.625 inches and a length of 1.32 inches, providing a compact yet effective solution for fluid transfer applications.

The Brennan Series C2404 fitting is engineered to facilitate seamless integration into existing setups, leveraging a depth of 0.250 inches for secure attachment. Its precise manufacturing and high-quality materials make it suitable for environments requiring dependable hydraulic connections. Ideal for use in heavy-duty machinery, the fitting's specifications support a range of industrial applications, ensuring efficient system operation and reduced downtime.

SKU: C2404-05-04

Supplier Part Number (MPN): C2404-05-04

Specifications

Brand BRENNAN	b1 Drill Dimensions 0.234 in	b2 Drill Dimensions 0.281 in	Connection Size 1 5/16 in	Connection Size 2 1/4 in	Connection Type Bite, MNPT	Connection Type 1 SAE Flareless Bite	Connection Type 2 Male SAE NPTF	Dimension Standards SAE J514, SAE J476	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 5/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Series C2404 Series	Thread Size 1/2-20 x 1/4-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
C2404-03-02	3/16 in	1/8 in	3/8-24 x 1/8-27	7/16 in
C2404-04-02	1/4 in	1/8 in	1/8-27, 7/16-20	1/2 in
C2404-04-04	1/4 in	1/4 in	7/16-20, 1/4-18	5/8 in
C2404-06-04	3/8 in	1/4 in	1/4-18 x 9/16-18	5/8 in
C2404-06-06	3/8 in	3/8 in	3/8-18, 9/16-18	0.81 in
C2404-08-06	1/2 in	3/8 in	3/4-16 x 3/8-18	0.81 in
C2404-08-08	1/2 in	1/2 in	3/4-16 x 1/2-14	0.94 in
C2404-08-12	1/2 in	3/4 in	3/4-16 x 3/4-14	1-1/8 in
C2404-10-06	5/8 in	3/8 in	7/8-14 x 3/8-18	0.94 in
C2404-10-08	5/8 in	1/2 in	1/2-14 x 7/8-14	0.94 in
C2404-24-24	1-1/2 in	1-1/2 in	1-7/8-12, 1-1/2-11-1/2	2 in

Product Questions & Answers (1)

Question by: Gene K on Mar 14, 2026, 1:34 PM

Reckon this would hold up okay in a hydraulic setup for farm equipment?

Answer by: Customer Support on Mar 16, 2026, 6:02 AM

Designed for reliable performance in demanding industrial environments, this fitting should be suitable for heavy-duty machinery like farm equipment hydraulic systems.
