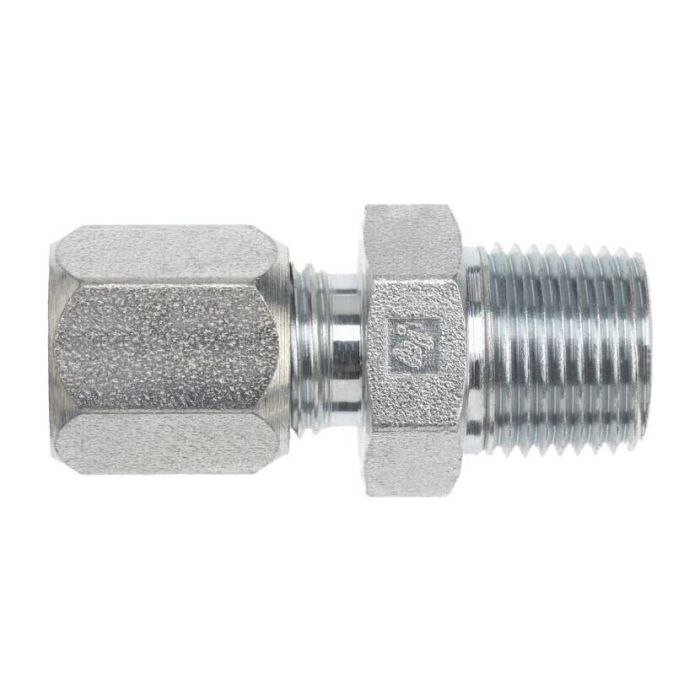

08FC-08MP STRAIGHT

Ask A Question

Description & Features

Designed for compatibility and durability, the Brennan Industries 08FC-08MP Straight fitting offers a reliable solution for hydraulic systems requiring precise connections. Manufactured with a 0.422 drill size and utilizing a 3/4-16 thread, this fitting ensures a secure and efficient assembly. The fitting is designed to accommodate a 1/2-14 NPTF connection, making it a versatile component in hydraulic applications.

The fitting's robust construction features a hex size of 0.875 and a length of 1.69, providing the necessary strength and stability required for demanding industrial environments. Its tube diameter of 1/2 inch makes it suitable for various system configurations, ensuring seamless integration. Part of the Brennan Series C2404, this fitting exemplifies quality and precision in hydraulic connections.

SKU: C2404-08-08

Supplier Part Number (MPN): C2404-08-08

Alternate Part Numbers: CB2404-08-08

Specifications

Brand
BRENNAN
b1 Drill Dimensions
0.422 in
b2 Drill Dimensions
0.531 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Bite, MNPT
Connection Type 1
SAE Flareless Bite
Connection Type 2
Male SAE NPTF
Dimension Standards
SAE J514, SAE J476
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.94 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
C2404 Series
Thread Size
3/4-16 x 1/2-14
Tube OD
1/2 in

Product Questions & Answers (3)

Question by: Vince C on Sep 22, 2025, 6:32 AM
I'm needing to replace a fitting on my tractor. How can I be sure this one's the right size?
Answer by: Customer Support on Sep 24, 2025, 7:53 AM
This straight fitting has a tube OD (outer diameter) of 1/2 inch, which should help you confirm if it matches your existing setup. Also, it's designed for a 1/2-14 NPTF connection.
Question by: Norm W on Mar 14, 2026, 12:12 PM
got a 1/2 inch tube line running off a hydraulic pump and need a straight fitting that steps down to a 1/2-14 NPTF port, this the right part for that?
Answer by: Customer Support on Mar 15, 2026, 8:51 PM
Yeah, that setup lines up with what this fitting is built for. The tube O.D. is 1/2 inch on one end, and the other end is a 1/2-14 NPTF connection. The B1 thread is 3/4-16, so make sure your mating component matches that before you order. Hex size is 0.875 and overall length runs 1.69 inches, which is worth checking against your available clearance before you commit.
Question by: Rhonda M on Nov 24, 2025, 5:03 PM
trying to swap out an old straight adapter, is this one the kind that goes from 3/4-16 to 1/2-14 NPTF?
Answer by: Customer Support on Nov 26, 2025, 10:46 AM
For fitment, the thread callouts on this straight fitting are 3/4-16 on the B1 side and 1/2-14 NPTF on the B2 side, so it matches a 3/4-16 to 1/2-14 NPTF straight connection.
