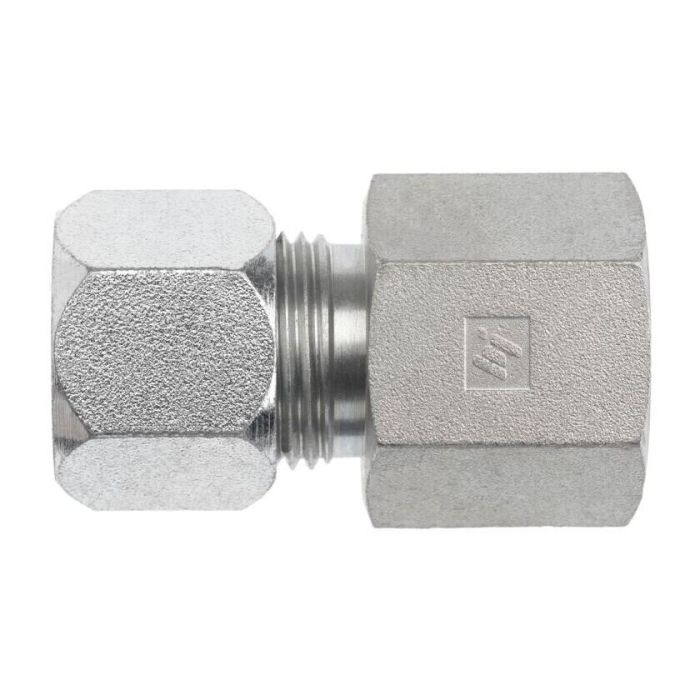

04BT-02FP ADAPTER STRAIGHT

Description & Features

The 04BT-02FP Adapter Straight is a reliable and efficient choice for industrial applications requiring a connection with consistent performance. Manufactured by Brennan Industries Inc it features an A2 NPTF of 1/8-27 and a B1 Thread of 7/16-20 making it suitable for various requirements.

This adapter showcases a B1 Drill size of 0.203 inches and a C Hex dimension of 0.562 inches ensuring precise fitting and secure connections. The K Depth is 0.234 inches while the overall length (L Lgth) measures 1.090 inches providing optimal compatibility within its series C2405.

Engineered with a Tube O.D. of 1/4 inch this adapter straight facilitates hassle-free installation and maintenance. The robust construction guarantees durability and long service life in demanding environments.

MPN: 04BT-02FP

Supplier Part Number: C2405-04-02

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number C2405-04-02	Product Weight 0.08 lbs

Product Questions & Answers (3)

Question by: Howard G on Jun 14, 2025, 1:18 PM

Will this fitting hold up okay in a hydraulic system running at, say, 2000 PSI?

Answer by: Customer Support on Jun 16, 2025, 10:17 AM

This adapter is designed for use in hydraulic systems, and its robust construction should provide a long service life even in demanding conditions.

Question by: Hank O on Jul 12, 2025, 5:56 PM

trying to swap out an old straight adapter, how do i know this 04BT-02FP is the right size

Answer by: Customer Support on Jul 14, 2025, 2:23 PM

Match up the key dimensions and threads: it has an A2 NPTF 1/8-27 on one end and a B1 thread of 7/16-20 on the other, and it’s built for 1/4 inch tube O.D. If your existing fitting uses those same thread callouts and tube size, this is the same basic fit.

Question by: Sheila B on Oct 19, 2025, 6:15 AM

Got a 1/4 inch tube line I'm trying to tie into a 1/8-27 NPTF port, this straight adapter gonna work for that?

Answer by: Customer Support on Oct 20, 2025, 10:10 AM

That's what this fitting handles. The tube end is sized for 1/4 inch O.D. tube and the other end threads into a 1/8-27 NPTF port, so that connection you're describing lines right up with what this adapter is built for.
