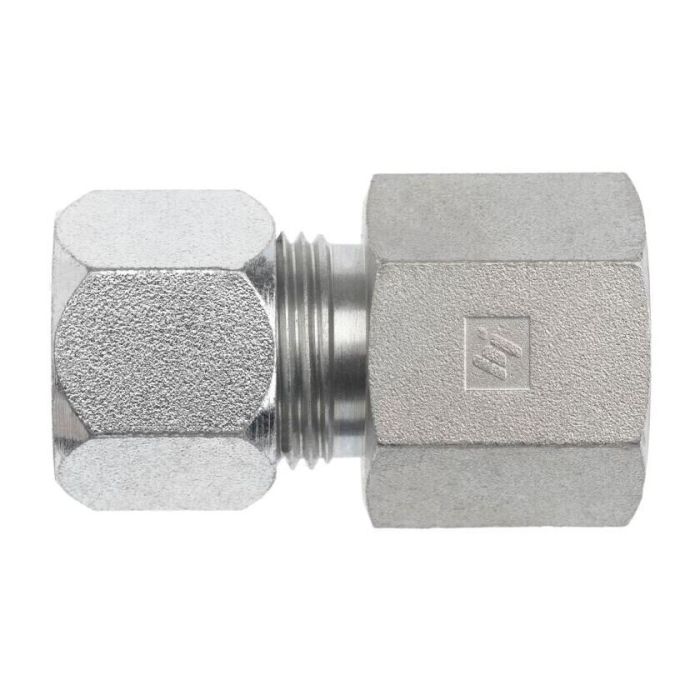

08BT-06FP ADAPTER STRAIGHT

Ask A Question

Description & Features

This straight adapter features a 3/8-18 Brennan A2 NPTF thread and a 3/4-16 Brennan B1 thread, with a B1 drill size of 0.422. The 08BT-06FP ADAPTER STRAIGHT provides a secure connection in hydraulic systems.

Part of the C2405 series, this adapter has a tube OD of 1/2 inch. It features a Brennan C hex size of 0.875 and a Brennan K depth of 0.305, with an overall Brennan L length of 1.47 inches.

SKU: C2405-08-06

Supplier Part Number (MPN): C2405-08-06

Specifications

Brand
BRENNAN
b1 Drill Dimensions
0.422 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Bite, FNPT
Connection Type 1
SAE Flareless Bite
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J514, SAE J476
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
C2405 Series
Thread Size
3/4-16 x 3/8-18
Tube OD
1/2 in

Product Questions & Answers (1)

Question by: Sheila C on Feb 28, 2026, 1:11 PM
trying to swap an old straight fitting out, what threads does this 08BT-06FP adapter actually have?
Answer by: Customer Support on Mar 1, 2026, 7:58 PM
On the NPTF side it is 3/8-18 (Brennan A2 NPTF). The other end is a 3/4-16 straight thread (Brennan B1), and it is in the Brennan C2405 series.
