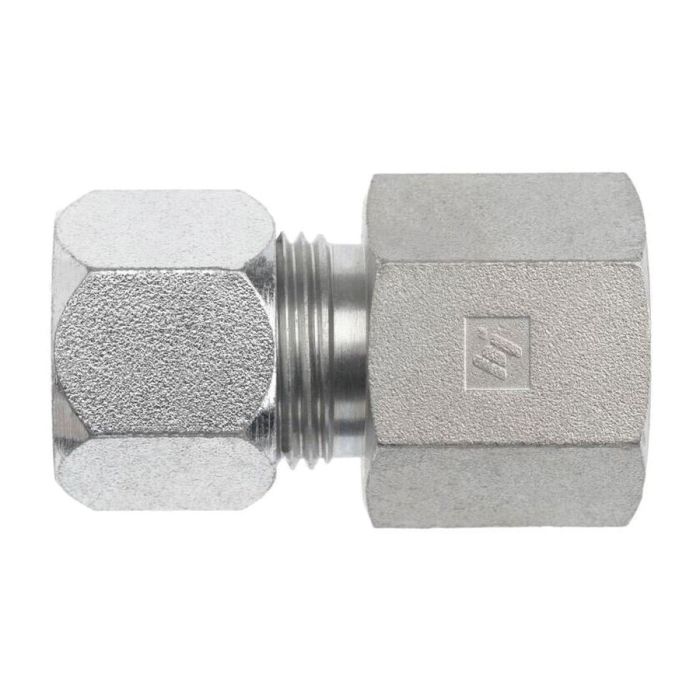

10BT-08FP ADAPTER STRAIGHT

Ask A Question

Description & Features

The 10BT-08FP ADAPTER STRAIGHT features a 5/8 inch tube OD, making it suitable for various hydraulic applications.

This straight adapter has a 1/2-14 Brennan A2 NPTF thread and a 7/8-14 Brennan B1 thread with a drill size of 0.500 inches. The adapter's dimensions include a 1.125 inch C hex and a 0.350 inch K depth, with an overall length of 1.76 inches. This adapter is part of the Brennan C2405 series.

SKU: C2405-10-08

Supplier Part Number (MPN): C2405-10-08

Specifications

Brand
BRENNAN
b1 Drill Dimensions
1/2 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Bite, FNPT
Connection Type 1
SAE Flareless Bite
Connection Type 2
Female SAE NPTF
Dimension Standards
SAE J514, SAE J476
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
4500 psi
Series
C2405 Series
Thread Size
1/2-14 x 7/8-14

Product Questions & Answers (1)

Question by: Kent M on Jun 21, 2025, 5:56 PM
Is this here adapter somethin' I could use with a 5/8 inch tube?
Answer by: Customer Support on Jun 23, 2025, 4:43 PM
This straight adapter does indeed feature a 5/8 inch tube OD, which should make it suitable for your hydraulic applications.
