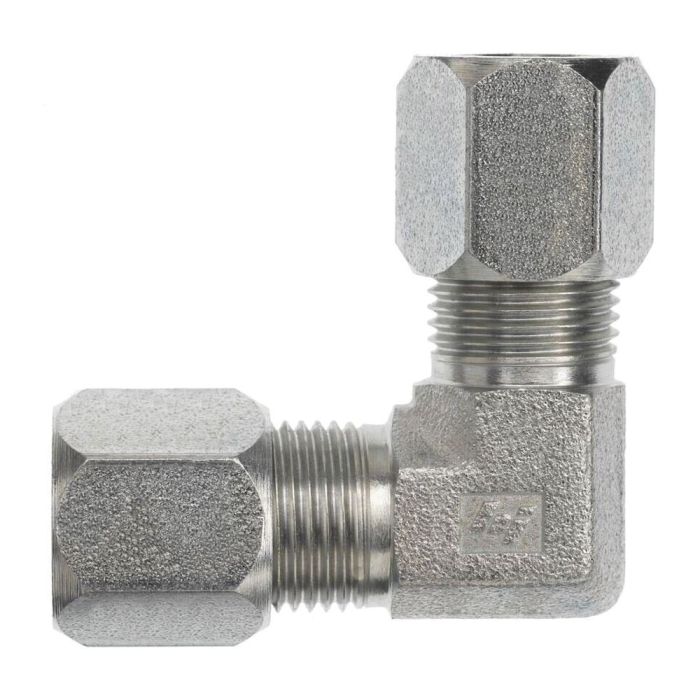

main product photo

06BT-06BT 90 ELBOW FORGED

Ask A Question

Description & Features

Forged construction gives this 90-degree elbow reliable strength for hydraulic line routing where direction changes are required. The 06BT-06BT 90 Elbow Forged connects 3/8-inch OD tube on both ports, with 9/16-18 thread on each end and a drill diameter of 0.281 inches at both connections. Equal port lengths of 1.050 inches and matching seat depths of 0.250 inches make this a symmetrical fitting suited to installations where both sides of the elbow serve identical tube sizes.

Manufactured under the Brennan Industries C2500-FG series, this fitting is designed for use in hydraulic systems requiring a compact, right-angle connection without welded or fabricated joints. The 0.562-inch across-flats dimension allows for standard wrench engagement during installation.

SKU: C2500-06-06-FG

Supplier Part Number (MPN): C2500-06-06-FG

Specifications

Brand
BRENNAN
b1 Drill Dimensions
0.281 in
b2 Drill Dimensions
0.281 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Bite
Connection Type 1
SAE Flareless Bite
Connection Type 2
SAE Flareless Bite
Dimension Standards
SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
0.563 in
k1 Depth Dimensions
1/4 in
k2 Depth Dimensions
1/4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
C2500-FG Series
Thread Size
9/16-18
Tube OD
3/8 in

Product Questions & Answers (1)

Question by: Travis Y on Mar 14, 2026, 12:22 PM
So this thing's got the same size threads on both ends? Just wanna make sure I'm lookin' at the right part.
Answer by: Customer Support on Mar 16, 2026, 8:04 AM
That's right, both ports connect to 3/8-inch OD tube with 9/16-18 threads. The drill diameter is 0.281 inches on both connections as well.
