06BT-04FP90 ELBOW

Description & Features

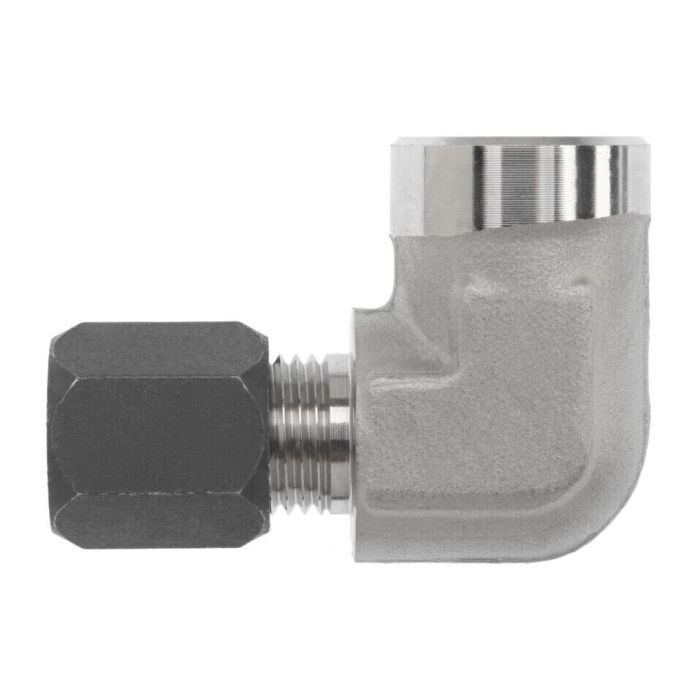

The 06BT-04FP90 ELBOW is a forged fitting with a 90-degree angle. It features a 3/8 inch tube OD and a 1/4-18 Brennan A2 NPTF thread.

This elbow fitting is part of the Brennan C2502-FG series. The B1 drill size is 0.281, with a B1 thread of 9/16-18. The K depth measures 0.250, while the M length is 1.05 and the N length is 0.88. The Y flats measure 0.750.

SKU: C2502-06-04-FG

Supplier Part Number (MPN): C2502-06-04-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number C2502-06-04-FG	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Melvin B on Jan 25, 2026, 8:47 AM

What size is the tube that this elbow fitting will connect to?

Answer by: Customer Support on Jan 27, 2026, 8:46 AM

This elbow fitting is made for a 3/8 inch outside diameter tube.
