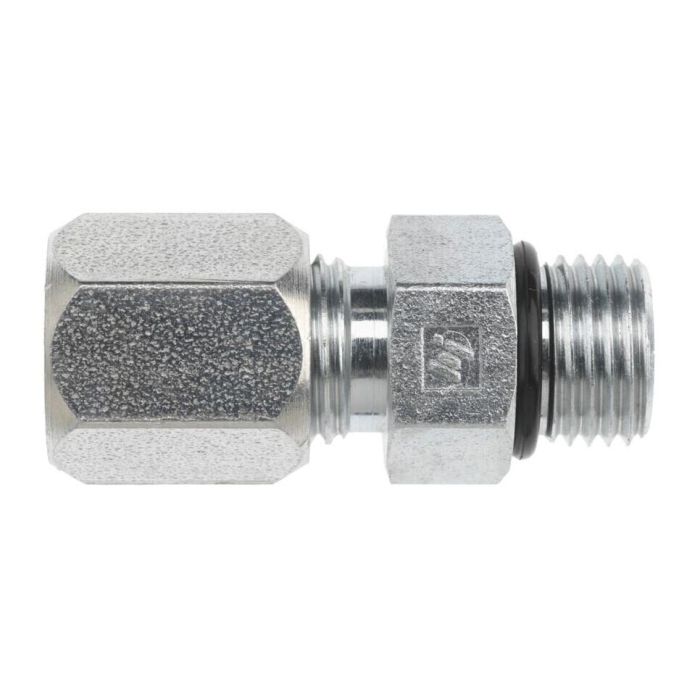

04BT-04MORB Straight

Description & Features

The 04BT-04MORB Straight fitting features a 1/4 inch tube OD and a C Hex size of 0.562 inches.

This straight fitting has a Brennan B1 drill size of 0.203 inches with a 7/16-20 Brennan B1 thread. The Brennan K depth is 0.234 inches and the total length L is 1.13 inches.

SKU: C6400-04-04-O

Supplier Part Number (MPN): C6400-04-04-O

Specifications

b1 Drill Dimensions 0.203 in	b2 Drill Dimensions 0.203 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Bite, Male SAE ORB	Connection Type 1 Flareless Bite	Connection Type 2 Male SAE ORB	Dimension Standards SAE J1926, SAE J514	Dimensions 0.234 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 0.563 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series C6400-O Series	Thread Size 7/16-20	Tube OD 1/4 in	Tube Outside Diameter 1/4 in

Product Questions & Answers (1)

Question by: Rick K on Aug 6, 2025, 4:32 PM

Reckon this'll fit a standard 1/4 inch setup? Just wanna make sure before I order.

Answer by: Customer Support on Aug 8, 2025, 6:03 AM

This 04BT-04MORB straight fitting is made for a 1/4 inch tube OD, so it should fit your standard 1/4 inch setup just fine.
