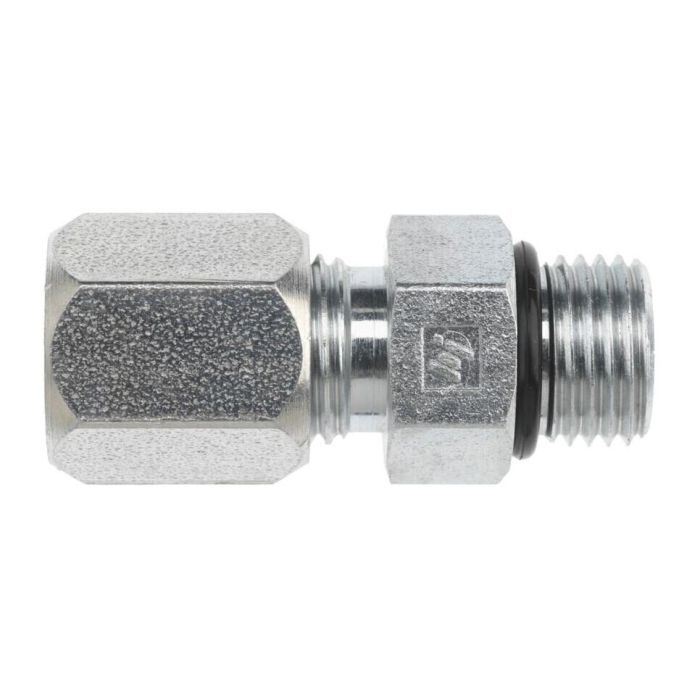

06BT-08MORB STRAIGHT

Description & Features

Designed for straight-run connections in hydraulic lines, the 06BT-08MORB Straight is a tube-to-port fitting from Brennan's C6400-O series. It connects a 3/8 inch OD tube to a 9/16-18 O-ring boss (ORB) port, using a 0.281 inch drill size on both ends for consistent bore alignment. The fitting measures 1.290 inches in length with a 0.875 inch hex and a 0.250 inch seat depth, keeping the assembly compact in tight installations.

The ORB port end provides a leak-resistant seal suited to medium- and high-pressure hydraulic circuits. This fitting is well suited for use in mobile equipment, industrial machinery, and hydraulic power units where a reliable straight connection between tubing and a machined port is needed.

SKU: C6400-06-08-O

Supplier Part Number (MPN): C6400-06-08-O

Alternate Part Numbers: C6400-06-08

Specifications

b1 Drill Dimensions 0.281 in	b2 Drill Dimensions 0.281 in	Connection Size 1 3/8 in	Connection Size 2 1/2 in	Connection Type Bite, Male SAE ORB	Connection Type 1 Flareless Bite	Connection Type 2 Male SAE ORB	Dimension Standards SAE J1926, SAE J514	Dimensions 1/4 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 7/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Series C6400-O Series	Thread Size 3/4-16, 9/16-18	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Product Questions & Answers (1)

Question by: Bonnie R on Jan 18, 2026, 12:41 PM

What size drill bit do I need for the port this screws into?

Answer by: Customer Support on Jan 19, 2026, 1:00 PM

For both ends of this straight fitting, you'll want to use a 0.281 inch drill. That'll give you the right bore alignment.
