brennan compression -20-20-O

Description & Features

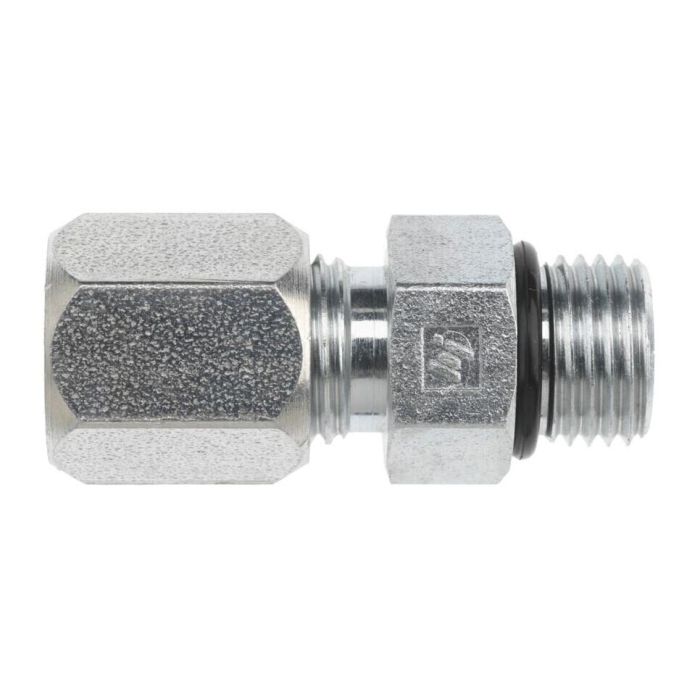

This Brennan compression fitting, part number C6400-20-20-O, features a -20BT to -20MORB straight configuration.

The brennan compression -20-20-O fitting incorporates a B1 drill size of 1.093" with a 1 5/8-12 B1 thread. The B2 drill size is also 1.093". It has a C Hex size of 1.875" and a K Depth of 0.415", with an L Length of 1.90". This fitting is part of the C6400-O series and is designed for a tube OD of 1 1/4".

SKU: C6400-20-20-O

Supplier Part Number (MPN): C6400-20-20-O

Specifications

b1 Drill Dimensions 1.093 in	b2 Drill Dimensions 1.093 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Bite, Male SAE ORB	Connection Type 1 Flareless Bite	Connection Type 2 Male SAE ORB	Dimension Standards SAE J1926, SAE J514	Dimensions 0.415 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-7/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 3000 psi	Operating Temperature -40 to 250 deg F	Series C6400-O Series	Thread Size 1-5/8-12	Tube Outside Diameter 1-1/4 in

Product Questions & Answers (2)

Question by: Janet A on Sep 8, 2025, 9:46 AM

What size drill bit do I need for this fitting?

Answer by: Customer Support on Sep 9, 2025, 10:04 AM

The B1 and B2 drill sizes for this fitting are both 1.093 inches.

Question by: Duane K on Jul 6, 2025, 6:15 PM

Got a 1 5/8-12 male ORB port on a manifold block, this compression fitting gonna thread right into it?

Answer by: Customer Support on Jul 8, 2025, 8:43 AM

Yeah, the male end on this one is 1 5/8-12, so it'll thread directly into a female ORB port of the same size without any adapter in between. The hex is 1.875 inches across, so make sure you've got a wrench that'll fit that before you start the job.
