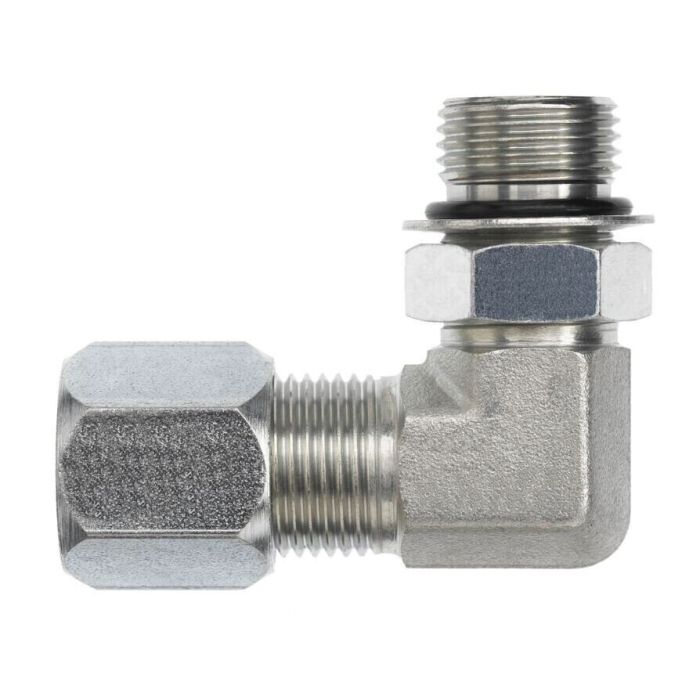

main product photo

08BT-08MAORB 90

Ask A Question

Description & Features

The 08BT-08MAORB 90 is part of the Brennan C6801-NWO-FG series. This fitting features a 0.422 Brennan B1 drill and a 3/4-16 Brennan B1 thread.

Additional specifications include a 0.422 Brennan B2 drill, 0.875 Brennan C hex, 0.305 Brennan K depth, 1.45 Brennan M7 length, and 1.25 Brennan M length. It is designed for a 1/2 Brennan tube OD and has 0.750 Brennan Y flats.

SKU: C6801-08-08-NWO-FG

Supplier Part Number (MPN): C6801-08-08-NWO-FG

Specifications

b1 Drill Dimensions
0.422 in
b2 Drill Dimensions
0.422 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Bite, Male SAE ORB
Connection Type 1
Flareless Bite
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
0.305 in L
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
7/8 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
C6801-NWO-FG Series
Thread Size
3/4-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in
y Flats Dimensions
3/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Dustin S on Apr 25, 2025, 1:38 PM
So, this is a 90 degree fitting, right? Just want to make sure before I order.
Answer by: Customer Support on Apr 27, 2025, 10:11 AM
That's correct. This is a 90-degree fitting, specifically the 08BT-08MAORB 90 from Brennan.
