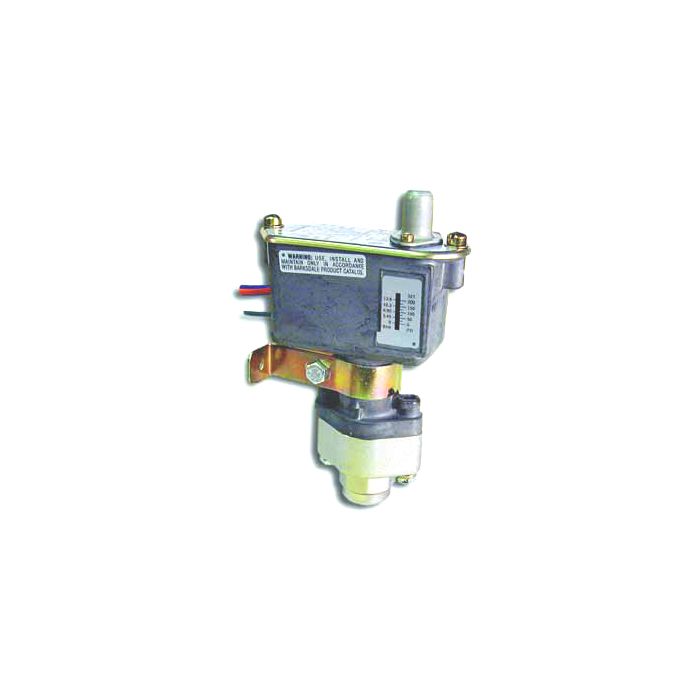

C9612 Series Single Pressure Switches

Description & Features

Accuracy	± 2% of the adjustable range.
Features	Sealed Piston • Extremely Long Life • Oil & Dust Tight • Easy Setpoint Adjustment • High Reliability • High Proof Pressure • Anodized aluminum enclosure • Tamper-proof adjustment screw cover • Nema 3 rated.
Identification	Purple = Common, Red = NO, Blue = NC.
Materials	Nickel plated aluminum process fitting. Buna-N o-ring (standard). 416 stainless steel piston. Anodized aluminum enclosure.
Ports	1/4-18 NPT Female.
Switch Rating	10 Amps @ 125, 250, or 480 VAC. 0.3 Amps @ 250 VDC. Class B limit switch.
Switch Type	SPDT snap action, single circuit.
Temperature Range	-20°F to 165°F.

Products

Model Number	Adjustable Range	Apprx. Deadband (PSI)	Maximum Pressure	Price	Action
C9612-3 C9612 Series Pressure Switch	Increasing: 280 Min, 3000 Max; Decreasing: 250 Min, 2650 Max	30-350	7000

Product Questions & Answers (1)

Question by: Tommy M on May 11, 2025, 4:19 PM

Reckon this thing will hold up okay outside? We get some pretty nasty weather rollin' through here.

Answer by: Customer Support on May 13, 2025, 3:50 PM

These C9612 series pressure switches are built to last even when the weather turns rough. The anodized aluminum enclosure is Nema 3 rated for oil and dust resistance, so it should hold up just fine.
