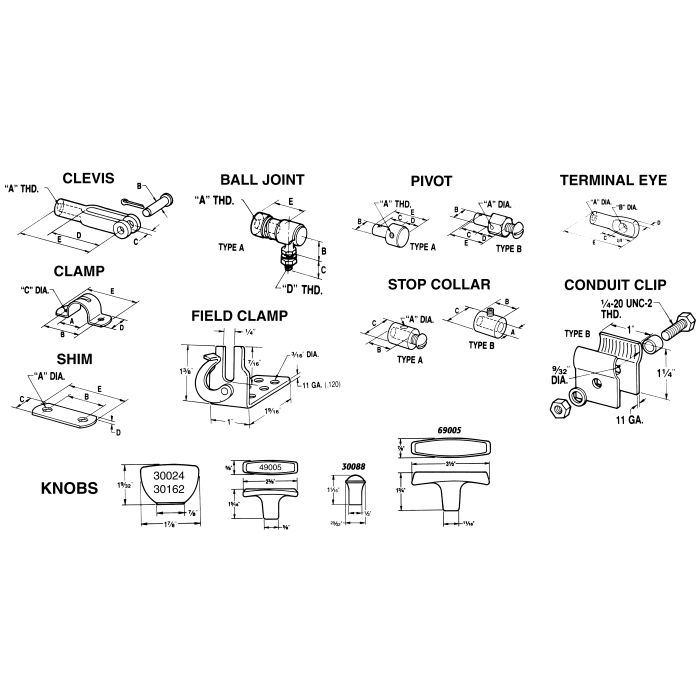

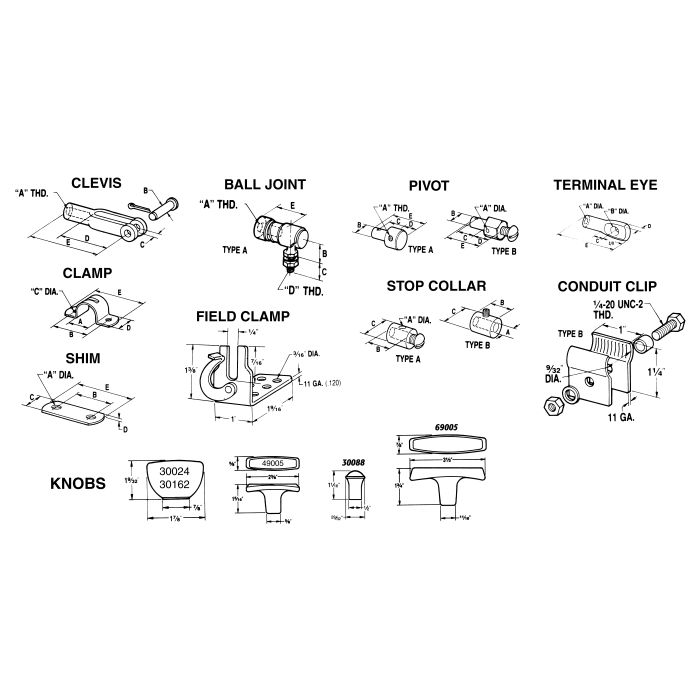

Cable FELSTED PIVOT (4 SERIES).

Description & Features

Experience unparalleled durability and precision with the Cable FELSTED PIVOT (4 SERIES), a top-tier product from Orscheln Products. Designed with heavy-duty, thick-walled polymer jackets, this cable ensures maximum strength, perfect for demanding industrial applications. The Hi-Performance 1 x 7 coated core is engineered to deliver enhanced flexibility and higher push loads, outperforming traditional armor core constructions.

Constructed with corrosion-resistant materials, the Cable FELSTED PIVOT boasts a combination of stainless steel rods, sleeves, and aluminum or stainless hubs, ensuring longevity and reliability. Its exclusive polymer rod and sleeve bearings prevent metal-to-metal contact, extending cable life and maintaining efficiency. Additionally, custom compounded seals protect against moisture and contaminants, while the stranded conduit design maintains flexibility and withstands extreme loads.

SKU: 000-49008-0001

Supplier Part Number (MPN): 000-49008-0001

Alternate Part Numbers: C1EV97, FMC602686

Specifications

Brand
ORSCHELN®
For Use With
4 Series Solid Core Cables
Sg Conduit Jacket
Heavy-Duty, Thick-walled Polymer Jackets are Extruded Onto the Stranded Liner for Maximum Cable Strength, Standard Material is Hope Molded to A Dark Maroon Color
Sg Core Construction
Hi-performance (Hp) 1 x 7 Coated Core is Available in 3, 4 and 6 Series Cables, HP Core Utilizes A Proprietary Coating over 1 x 7 Wire Rope Which Offers Improved Flexibility and Higher Push Loads than Armor Core Construction, Solid Stainless Steel Cores a
Sg End Fittings
Corrosion-resistant Materials are Used Throughout to Provide Maximum Life, Standard 3, 4 and 6 Series Rods and Sleeves are 300 Series Stainless Steel, While Hubs are Either Aluminum or Stainless
Sg Liners
All Cables Utilize Polymer Liners Which Have A Temperature Rating of -65 to 225 deg F, Factory Lubrication Provides Optimum Core Performance Without Requiring Further Service
Sg Rod Sleeve Bearing
An Exclusive Polymer Rod and Sleeve Bearing is Used to Improve Efficiency, Sealing and Cable Life by Preventing Metal to Metal Contact Between the Rod and Sleeve, They also Accurately Align the Rod with the Seal to Insure Superior Sealing and A Long Cable
Sg Seals Boots
Durable Custom Compounded Seals are Used to Prevent Moisture and Contaminants from Entering the Cable
Sg Stranded Conduit
Multiple, Oil Tempered Spring Wires are Placed in A Long Lay Pattern to Protect the Liner and Inner Core, Maintain Flexibility and Withstand Extreme Compressive and Tensile Loads, This Long Lay Construction Results in Minimal Deflections During Cable Oper
Thread Size
1/4-28
Thread Type
UNF-2B

Similar Products

Model Number Thread Size Length For Use With Price Action
Cable FELSTED 3 SERIES CLAMP.

39001 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSED CLEVIS 5/16-24 TH.

000-69003-0001 Cable Hardware & Knob

5/16-24

6 Series Solid Core Cables

Cable FELSTED ROD PIVOT.

000-49042-0000 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED STOP COLLAR.

30103 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED CABLE PART.

39006 Cable Hardware & Knob

#10-32 x 1/4-28

3 Series Solid Core Cables

Cable FELSTED FRICTION CONTROL.

055887-000000 Cable Hardware & Knob

Cable FELSTED BALL JOINT.

000-69007-0000 Cable Hardware & Knob

5/16-24

6 Series Solid Core Cables

Cable FELSTED SWITCH KIT.

000-50036-0001 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED BALL JOINT.

000-49006-0000 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED CLEVIS.

000-49003-0002 Cable Hardware & Knob

10-32

3 Series Solid Core Cables

Cable FELSTED X0276-1 SLEEVE 5 INCH TRAVEL.

40004-5 Cable Hardware & Knob

Cable FELSTED CABLE FIELD CLAMP 000-39030-0001.

39030-1 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED 3 SERIES SHIM.

39002 Cable Hardware & Knob

3 and 4 Series Solid Core Cables

Cable ORSCHELN FELSTED SERIES 3 CLEVIS.

000-39003-0001 Cable Hardware & Knob

10-32

3 Series Solid Core Cables

Cable FELSTED BALL JOINT 4 SERIES.

000-49007-0000 Cable Hardware & Knob

1/4-28 x 5/16-24

4 Series Solid Core Cables

Cable FELSTED PIVOT For SOLID CORE.

39011-2 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED LOCKING PIVOT.

39011-1 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED SLEEVE X0102.

40202 Cable Hardware & Knob

Cable FELSTED BLACK 1/4-20 PLAIN T HANDL.

49005-1011 Cable Hardware & Knob

1/4-20

Cable FELSTED TERMINAL EYE.

000-49004-0001 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED RED PLAIN 1/4-20 X0081.

49005-2011 Cable Hardware & Knob

1/4-20

Cable FELSTED 4 SERIES ROD CLEVIS 1/4-28 THREA.

000-69003-0003 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED ROD CLEVIS 6 SERIES.

000-49003-0003 Cable Hardware & Knob

5/16-24

6 Series Solid Core Cables

Cable FELSTED VALVE KIT.

000-59112-0000 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED CLEVIS.

000-89003-0002 Cable Hardware & Knob

5/16-24

6 Series Solid Core Cables

Cable FELSTED X0220 RVC HUB.

40313-1 Cable Hardware & Knob

Cable FELSTED TERMINAL EYE.

000-69004-0004 Cable Hardware & Knob

5/16-24

6 Series Solid Core Cables

Cable ORSCHELN FELSTED CLEVIS 1/4-28 UNF-2B FE.

000-49003-0001 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED PTO KNOB X0150.

30162 Cable Hardware & Knob

Cable FELST VLV OPER HUB X0147.

40203-10 Cable Hardware & Knob

Cable ORSCHELN FELSTED 4 SERIES CLAMP.

49001 Cable Hardware & Knob

4 Series Solid Core Cables

000-49004-0003

000-49004-0003

1/4-28

4 Series Solid Core Cables

FELSTED TERMINAL EYE

000-69004-0001

5/16-24

6 Series Solid Core Cables

Product Questions & Answers (2)

Question by: Marvin C on Jun 25, 2025, 3:14 PM
got a 4 series push pull cable setup, what’s this Felsted pivot actually do in the linkage?
Answer by: Customer Support on Jun 27, 2025, 3:03 PM
Function-wise, the Felsted pivot is a piece of cable hardware used at the end of a control cable to create a pivoting connection point in the linkage, so the cable end can articulate as the mechanism moves.
Question by: Brenda R on Feb 27, 2026, 4:15 PM
Will this pivot cable hold up to some pretty rough conditions?
Answer by: Customer Support on Mar 1, 2026, 6:51 AM
Durable seals are custom-compounded to keep moisture and grime out of the cable, which should help extend its life.
