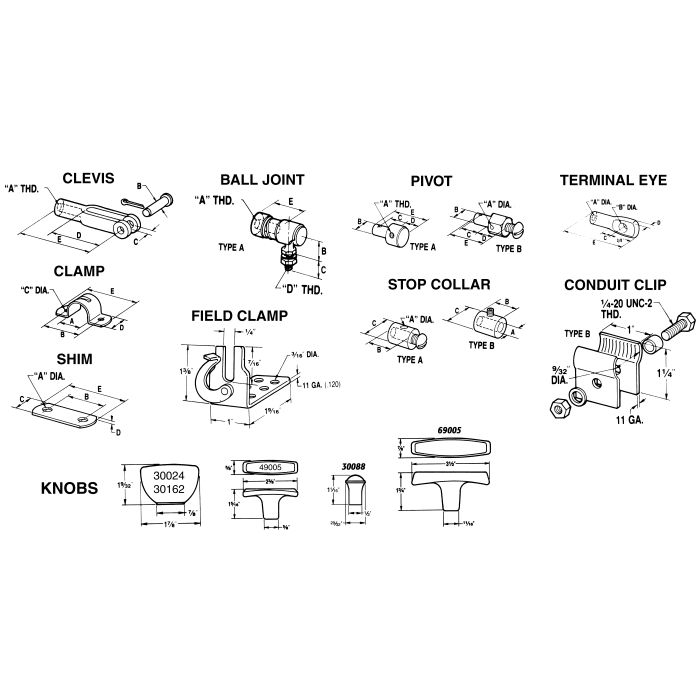

Cable FELSTED STOP COLLAR.

Description & Features

Manufactured by Orscheln Products LLC, this stop collar is part of the Cable Hardware & Knobs product line and carries catalog number C1EW27. The Cable Felsted Stop Collar is built to work with cable assemblies that feature heavy-duty, thick-walled HDPE polymer jackets extruded over stranded liners for reliable strength under load.

Cables in this system use polymer liners rated from -65°F to 225°F and arrive factory-lubricated for consistent core performance without additional servicing. Corrosion-resistant 300 series stainless steel rods and sleeves, along with aluminum or stainless hubs, are standard across the 3, 4, and 6 series configurations. An exclusive polymer rod and sleeve bearing prevents metal-to-metal contact, accurately aligns the rod with the seal, and extends cable service life. Durable custom-compounded seals keep moisture and contaminants out, while the long-lay stranded conduit construction minimizes deflection during cable actuation.

SKU: 30103

Supplier Part Number (MPN): 000-30103-0000

Alternate Part Numbers: C1EW27

Specifications

Brand ORSCHELN®	For Use With 3 Series Solid Core Cables	Sg Conduit Jacket Heavy-Duty, Thick-walled Polymer Jackets are Extruded Onto the Stranded Liner for Maximum Cable Strength, Standard Material is Hope Molded to A Dark Maroon Color	Sg Core Construction Hi-performance (Hp) 1 x 7 Coated Core is Available in 3, 4 and 6 Series Cables, HP Core Utilizes A Proprietary Coating over 1 x 7 Wire Rope Which Offers Improved Flexibility and Higher Push Loads than Armor Core Construction, Solid Stainless Steel Cores a	Sg End Fittings Corrosion-resistant Materials are Used Throughout to Provide Maximum Life, Standard 3, 4 and 6 Series Rods and Sleeves are 300 Series Stainless Steel, While Hubs are Either Aluminum or Stainless	Sg Liners All Cables Utilize Polymer Liners Which Have A Temperature Rating of -65 to 225 deg F, Factory Lubrication Provides Optimum Core Performance Without Requiring Further Service	Sg Rod Sleeve Bearing An Exclusive Polymer Rod and Sleeve Bearing is Used to Improve Efficiency, Sealing and Cable Life by Preventing Metal to Metal Contact Between the Rod and Sleeve, They also Accurately Align the Rod with the Seal to Insure Superior Sealing and A Long Cable	Sg Seals Boots Durable Custom Compounded Seals are Used to Prevent Moisture and Contaminants from Entering the Cable	Sg Stranded Conduit Multiple, Oil Tempered Spring Wires are Placed in A Long Lay Pattern to Protect the Liner and Inner Core, Maintain Flexibility and Withstand Extreme Compressive and Tensile Loads, This Long Lay Construction Results in Minimal Deflections During Cable Oper	Specifications 7/24 in Dia Hole

Similar Products

Model Number	Product Description	Thread Size
000-50036-0001 Cable Hardware & Knob	FELSTED SWITCH KIT.
000-69003-0003 Cable Hardware & Knob	FELSTED 4 SERIES ROD CLEVIS 1/4-28 THREA.	1/4-28
000-89003-0002 Cable Hardware & Knob	FELSTED CLEVIS.	5/16-24
40004-5 Cable Hardware & Knob	FELSTED X0276-1 SLEEVE 5 INCH TRAVEL.
40202 Cable Hardware & Knob	FELSTED SLEEVE X0102.
40203-10 Cable Hardware & Knob	FELST VLV OPER HUB X0147.
49005-1011 Cable Hardware & Knob	FELSTED BLACK 1/4-20 PLAIN T HANDL.	1/4-20
000-39003-0001 Cable Hardware & Knob	ORSCHELN FELSTED SERIES 3 CLEVIS.	10-32
000-49003-0001 Cable Hardware & Knob	ORSCHELN FELSTED CLEVIS 1/4-28 UNF-2B FE.	1/4-28
000-49003-0002 Cable Hardware & Knob	FELSTED CLEVIS.	10-32
000-49003-0003 Cable Hardware & Knob	FELSTED ROD CLEVIS 6 SERIES.	5/16-24
000-49004-0001 Cable Hardware & Knob	FELSTED TERMINAL EYE.	1/4-28
000-49006-0000 Cable Hardware & Knob	FELSTED BALL JOINT.	1/4-28
000-49007-0000 Cable Hardware & Knob	FELSTED BALL JOINT 4 SERIES.	1/4-28 x 5/16-24
000-49008-0001 Cable Hardware & Knob	FELSTED PIVOT (4 SERIES).	1/4-28
000-49042-0000 Cable Hardware & Knob	FELSTED ROD PIVOT.	1/4-28
000-59112-0000 Cable Hardware & Knob	FELSTED VALVE KIT.
000-69003-0001 Cable Hardware & Knob	FELSED CLEVIS 5/16-24 TH.	5/16-24
000-69004-0004 Cable Hardware & Knob	FELSTED TERMINAL EYE.	5/16-24
000-69007-0000 Cable Hardware & Knob	FELSTED BALL JOINT.	5/16-24
055887-000000 Cable Hardware & Knob	FELSTED FRICTION CONTROL.
30162 Cable Hardware & Knob	FELSTED PTO KNOB X0150.
39001 Cable Hardware & Knob	FELSTED 3 SERIES CLAMP.
39002 Cable Hardware & Knob	FELSTED 3 SERIES SHIM.
39006 Cable Hardware & Knob	FELSTED CABLE PART.	#10-32 x 1/4-28
39011-2 Cable Hardware & Knob	FELSTED PIVOT FOR SOLID CORE.
49001 Cable Hardware & Knob	ORSCHELN FELSTED 4 SERIES CLAMP.
49005-2011 Cable Hardware & Knob	FELSTED RED PLAIN 1/4-20 X0081.	1/4-20
40313-1 Cable Hardware & Knob	FELSTED X0220 RVC HUB.
39011-1 Cable Hardware & Knob	FELSTED LOCKING PIVOT.
39030-1 Cable Hardware & Knob	FELSTED CABLE FIELD CLAMP 000-39030-0001.

Product Questions & Answers (3)

Question by: Warren P on Jan 4, 2026, 4:19 PM

so what exactly is a felsted stop collar used for on these cables?

Answer by: Customer Support on Jan 6, 2026, 1:14 PM

Think of it as a small piece of cable hardware that acts like a stop on a control cable assembly, so travel and positioning stay where they are supposed to.

Question by: Sheila M on Jun 23, 2025, 6:47 AM

What's this stop collar made of, if I'm using it outdoors in all weather?

Answer by: Customer Support on Jun 24, 2025, 8:33 AM

Corrosion resistant materials are used throughout its construction. This will maximize the life of the stop collar, even when exposed to the elements.

Question by: Lyle A on Sep 4, 2025, 7:30 AM

got a Felsted push pull cable setup. what’s this stop collar actually do

Answer by: Customer Support on Sep 6, 2025, 7:09 AM

Used as a stop on Felsted-style cable hardware, the stop collar helps act as a positive stop point on the cable assembly so travel is limited where you need it.
