Cable FELSTED CABLE PART.

Description & Features

Ensure the durability and effectiveness of your cable hardware & knob components with this high-performance item from Orscheln Products LLC. Featuring heavy-duty thick-walled polymer jackets extruded onto a stranded liner this component guarantees maximum strength and longevity in rigorous environments.

The custom compounded seals are specially designed to block moisture and contaminants preserving the cable's integrity. Constructed with oil-tempered spring wires arranged in a long lay pattern it maintains flexibility while protecting the liner and inner core from extreme compressive and tensile stresses.

Corrosion-resistant materials including 300 series stainless steel for rods and sleeves and aluminum or stainless for hubs are used throughout to ensure extended service life. An exclusive polymer rod and sleeve bearing enhances efficiency sealing and prevents metal-to-metal contact thus ensuring accurate alignment and superior sealing.

The heavy-duty high-performance (HP) 1 x 7 coated core available in various series offers improved flexibility and substantial push loads compared to traditional constructions. The polymer liners have a temperature rating of -65F to 225F and come factory-lubricated for optimal performance without the need for additional servicing.

MPN: C1EU91

Supplier Part Number: 000-39006-0000

Specifications

Brand
ORSCHELN®
For Use With
3 Series Solid Core Cables
Sg Conduit Jacket
Heavy-Duty, Thick-walled Polymer Jackets are Extruded Onto the Stranded Liner for Maximum Cable Strength, Standard Material is Hope Molded to A Dark Maroon Color
Sg Core Construction
Hi-performance (Hp) 1 x 7 Coated Core is Available in 3, 4 and 6 Series Cables, HP Core Utilizes A Proprietary Coating over 1 x 7 Wire Rope Which Offers Improved Flexibility and Higher Push Loads than Armor Core Construction, Solid Stainless Steel Cores a
Sg End Fittings
Corrosion-resistant Materials are Used Throughout to Provide Maximum Life, Standard 3, 4 and 6 Series Rods and Sleeves are 300 Series Stainless Steel, While Hubs are Either Aluminum or Stainless
Sg Liners
All Cables Utilize Polymer Liners Which Have A Temperature Rating of -65 to 225 deg F, Factory Lubrication Provides Optimum Core Performance Without Requiring Further Service
Sg Rod Sleeve Bearing
An Exclusive Polymer Rod and Sleeve Bearing is Used to Improve Efficiency, Sealing and Cable Life by Preventing Metal to Metal Contact Between the Rod and Sleeve, They also Accurately Align the Rod with the Seal to Insure Superior Sealing and A Long Cable
Sg Seals Boots
Durable Custom Compounded Seals are Used to Prevent Moisture and Contaminants from Entering the Cable
Sg Stranded Conduit
Multiple, Oil Tempered Spring Wires are Placed in A Long Lay Pattern to Protect the Liner and Inner Core, Maintain Flexibility and Withstand Extreme Compressive and Tensile Loads, This Long Lay Construction Results in Minimal Deflections During Cable Oper
Thread Size
#10-32 x 1/4-28
Thread Type
UNF-2B, UNF-2A

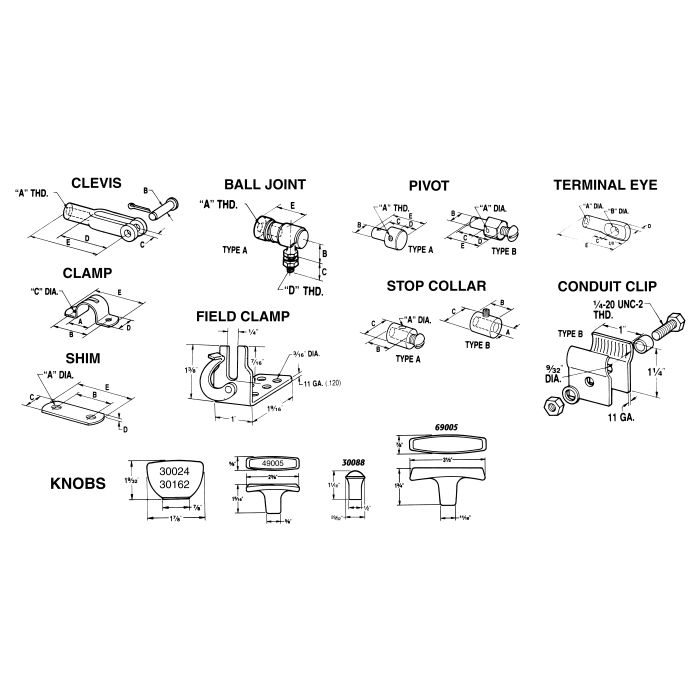

Similar Products

Model Number Thread Size Length For Use With Price Action
Cable FELSTED 3 SERIES CLAMP.

39001 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSED CLEVIS 5/16-24 TH.

000-69003-0001 Cable Hardware & Knob

5/16-24

6 Series Solid Core Cables

Cable FELSTED ROD PIVOT.

000-49042-0000 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED STOP COLLAR.

30103 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED PIVOT (4 SERIES).

000-49008-0001 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED FRICTION CONTROL.

055887-000000 Cable Hardware & Knob

Cable FELSTED BALL JOINT.

000-69007-0000 Cable Hardware & Knob

5/16-24

6 Series Solid Core Cables

Cable FELSTED SWITCH KIT.

000-50036-0001 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED BALL JOINT.

000-49006-0000 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED CLEVIS.

000-49003-0002 Cable Hardware & Knob

10-32

3 Series Solid Core Cables

Cable FELSTED X0276-1 SLEEVE 5 INCH TRAVEL.

40004-5 Cable Hardware & Knob

Cable FELSTED CABLE FIELD CLAMP 000-39030-0001.

39030-1 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED 3 SERIES SHIM.

39002 Cable Hardware & Knob

3 and 4 Series Solid Core Cables

Cable ORSCHELN FELSTED SERIES 3 CLEVIS.

000-39003-0001 Cable Hardware & Knob

10-32

3 Series Solid Core Cables

Cable FELSTED BALL JOINT 4 SERIES.

000-49007-0000 Cable Hardware & Knob

1/4-28 x 5/16-24

4 Series Solid Core Cables

Cable FELSTED PIVOT For SOLID CORE.

39011-2 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED LOCKING PIVOT.

39011-1 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED SLEEVE X0102.

40202 Cable Hardware & Knob

Cable FELSTED BLACK 1/4-20 PLAIN T HANDL.

49005-1011 Cable Hardware & Knob

1/4-20

Cable FELSTED TERMINAL EYE.

000-49004-0001 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED RED PLAIN 1/4-20 X0081.

49005-2011 Cable Hardware & Knob

1/4-20

Cable FELSTED 4 SERIES ROD CLEVIS 1/4-28 THREA.

000-69003-0003 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED ROD CLEVIS 6 SERIES.

000-49003-0003 Cable Hardware & Knob

5/16-24

6 Series Solid Core Cables

Cable FELSTED VALVE KIT.

000-59112-0000 Cable Hardware & Knob

3 Series Solid Core Cables

Cable FELSTED CLEVIS.

000-89003-0002 Cable Hardware & Knob

5/16-24

6 Series Solid Core Cables

Cable FELSTED X0220 RVC HUB.

40313-1 Cable Hardware & Knob

Cable FELSTED TERMINAL EYE.

000-69004-0004 Cable Hardware & Knob

5/16-24

6 Series Solid Core Cables

Cable ORSCHELN FELSTED CLEVIS 1/4-28 UNF-2B FE.

000-49003-0001 Cable Hardware & Knob

1/4-28

4 Series Solid Core Cables

Cable FELSTED PTO KNOB X0150.

30162 Cable Hardware & Knob

Cable FELST VLV OPER HUB X0147.

40203-10 Cable Hardware & Knob

Cable ORSCHELN FELSTED 4 SERIES CLAMP.

49001 Cable Hardware & Knob

4 Series Solid Core Cables

000-49004-0003

000-49004-0003

1/4-28

4 Series Solid Core Cables

FELSTED TERMINAL EYE

000-69004-0001

5/16-24

6 Series Solid Core Cables

Product Questions & Answers (3)

Question by: Pete B on Jun 22, 2025, 7:18 PM
what keeps moisture from getting into the cable over time, asking cause we run equipment in some pretty rough conditions
Answer by: Customer Support on Jun 24, 2025, 7:45 AM
Custom compounded seals are built into the cable specifically to block moisture and contaminants from working their way inside. Combined with the heavy-duty thick-walled polymer jacket extruded over the stranded liner, the cable holds up well in harsh operating environments without letting the elements get to the inner core.
Question by: Danny P on Mar 11, 2026, 9:26 AM
Will this cable hold up if it's exposed to the elements?
Answer by: Customer Support on Mar 12, 2026, 9:44 PM
Durability in harsh conditions is a key feature. The heavy-duty polymer jackets and corrosion-resistant materials, including 300 series stainless steel, are designed to extend service life even when exposed to moisture and contaminants.
Question by: Dwight A on Mar 26, 2025, 3:06 PM
got a cable that sees a lot of grit and wet weather, how’s this one keep junk from working its way inside?
Answer by: Customer Support on Mar 27, 2025, 7:58 PM
Moisture and dirt are held back by custom compounded seals, and the conduit uses a heavy-duty thick-walled polymer jacket over the stranded liner. The build also uses corrosion-resistant materials like 300 series stainless for rods and sleeves, with aluminum or stainless hubs, so the hardware holds up better in harsh conditions.
