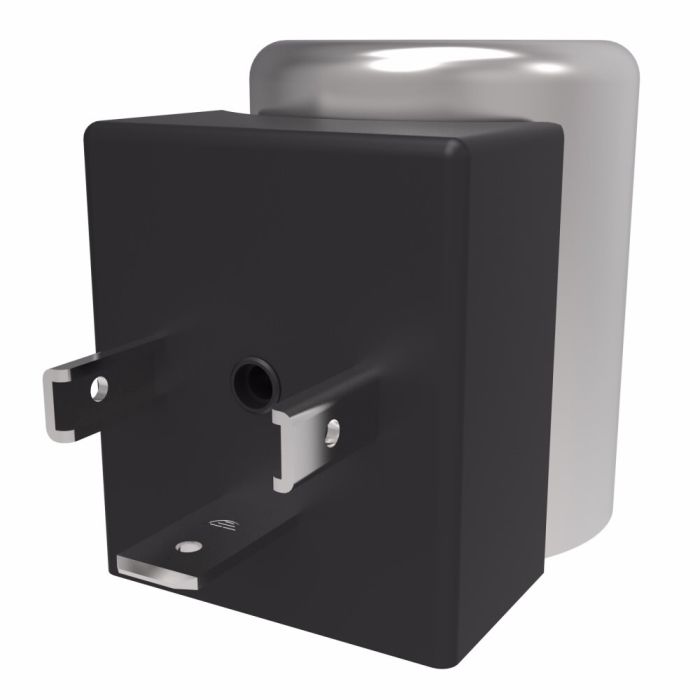

Cartridge Valve Coil, P Series 23 Watt, 230VAC, DIN 43650. Internally rectified|Compact design|Continuous duty

Description & Features

Designed for mobile and industrial applications including harvesters and refuse haulers, this Danfoss Hydraulics P Series coil operates on 230VAC with internal rectification, making it compatible with AC power sources without requiring an external rectifier. The Cartridge Valve Coil, P Series 23 Watt, 230VAC, DIN 43650 features a compact Toughcoil construction encapsulated in glass-filled nylon, providing IP65 environmental protection and a hazardous environment rating suitable for demanding field conditions.

Rated for continuous duty across a voltage range of 85% to 110% of nominal, this coil maintains reliable performance under variable supply conditions. The DIN 43650 connector type and drop-in installation style simplify integration into existing cartridge valve assemblies. With a pressure level valve control rating of 350 and a coil size of 8, it is suited for use in both mobile and stationary hydraulic systems. The integrated flying leads and zero lead length configuration support direct in-manifold mounting.

SKU: 300AA00046A

Supplier Part Number (MPN): 300AA00046ASP

Alternate Part Numbers: C1LX17

Specifications

Application Harvesters, refuse haulers, mobile and industrial applications	Coil Size 8	Connector Type DIN 43650	Duty Rating Continuous from 85% to 110% of nominal voltage	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Encapsulent Glass filled nylon	Environmental Protection IP65	Features Internally rectified\|Compact design\|Continuous duty	Flying Leads Integrated	Hazardous Environmental Rating Yes	Installation Type Drop-in	Leakage Standard	Operation Electrically Operated	Pressure level valve control 350	Series P Series 23 Watt	Special Features None	Style Toughcoil	Supplier Part Number 300AA00046A	Voltage 230VAC	Voltage Type 12306	Product Weight 0.31 lbs	Alternate Part Numbers Alternate Part Number C1LX17

Similar Products

Model Number	Part Number	Series	Voltage	Connector Type	Features
SC024SPJ00 Cartridge Valve Coil	02-178104	J Series 20 Watt	24VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
SC120APJ00 Cartridge Valve Coil	02-178106	J Series 20 Watt	120VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
MCSCS012DQ000010 Cartridge Valve Coil	300AA00009A	S Series 20 Watt	12VDC	1/4" Spade	Internally rectified\|Compact design\|Continuous duty
MCSCJ012DG000010 Cartridge Valve Coil	300AA00081A	J Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCJ024DG000010 Cartridge Valve Coil	300AA00082A	J Series 20 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCJ115AG000010 Cartridge Valve Coil	300AA00085A	J Series 20 Watt	120VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507848 Cartridge Valve Coil	507848	R Series 30 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
SC012DPJ00 Cartridge Valve Coil	02-178078	J Series 20 Watt	12VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
SC024DPJ00 Cartridge Valve Coil	02-178079	J Series 20 Watt	24VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
MCSCS012DG000010 Cartridge Valve Coil	300AA00001A	S Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCS115AG000010 Cartridge Valve Coil	300AA00005A	S Series 20 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCP024DG000010 Cartridge Valve Coil	300AA00042A	P Series 23 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCP115AG000010 Cartridge Valve Coil	300AA00045A	P Series 23 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCP230AG000010 Cartridge Valve Coil	300AA00046A	P Series 23 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCJ230AG000010 Cartridge Valve Coil	300AA00086A	J Series 20 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCJ012DW0B0010 Cartridge Valve Coil	300AA00095A	J Series 20 Watt	12VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
MCSCJ024DW0B0010 Cartridge Valve Coil	300AA00096A	J Series 20 Watt	24VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
MCSCH012DG000010 Cartridge Valve Coil	300AA00121A	H Series 26 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCH024DG000010 Cartridge Valve Coil	300AA00122A	H Series 26 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507847 Cartridge Valve Coil	507847	R Series 30 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
