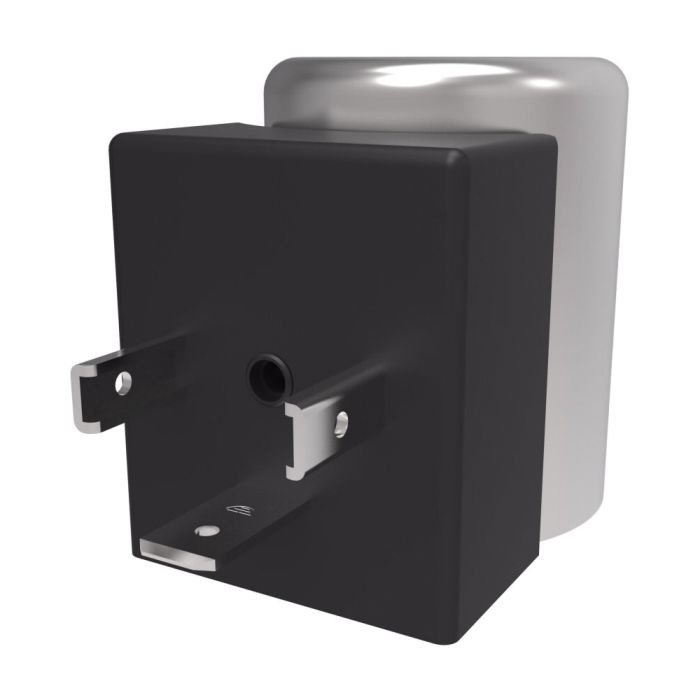

main product photo

Cartridge Valve Coil, J Series 20 Watt, 12VDC, Flying Lead. Internally rectified|Compact design|Continuous duty

Ask A Question

Description & Features

The Danfoss-Hydraulics Cartridge Valve Coil J Series 20 Watt 12VDC Flying Lead is engineered for demanding mobile and industrial applications including harvesters and refuse haulers. This coil features an environmentally protected glass-filled nylon encapsulent ensuring durability along with an IP65/IP67 thermal shock dunk rating for robust performance in harsh conditions.

Designed for continuous use from 85% to 110% of nominal voltage this electrically operated coil offers reliable operation with internally rectified elements. Its compact design is engineered for a drop-in installation type making it a practical addition to various systems that require effective valve control under pressure levels up to 210.

Specifically developed for the J Series 20 Watt range the coil includes flying leads with a lead length of 610 offering flexibility in connection. With standard leakage and a tough coil style it guarantees a high level of operational efficiency.

Model Number: MCSCJ012DW0B0010

Supplier Part Number: 300AA00095A

Specifications

Coil Size
10 mm, 12 mm, 16 mm, 20 mm
Connector Type
Flying Lead
Encapsulent
Glass Filled Nylon
Environmental Protection
IP65/IP67 Thermal Shock Dunk
Flying Lead
Flying Leads
Hazardous Environmental Rating
With Hazardous Environmental Rating
Leakage
Standard
Material
Steel
Mounting Type
Drop-In
Operation
Electrically Operated
Power Supply
12 VDC, 1.92 A, 23 W
Pressure Level Valve Control
210
Product Type
Solenoid Coil
Segment Code
A
Series
J Series
Style
Toughcoil
Suitable For Use With
Screw-In Cartridge Valves

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Cheryl R on Sep 14, 2025, 9:38 PM
Will this here coil work alright on a Danfoss valve in my harvester? Seems like a match, but wanna be sure 'fore I order.
Answer by: Customer Support on Sep 16, 2025, 1:39 PM
This J Series coil is designed to fit Danfoss valves, specifically those in the J Series 20 Watt range. It's also suitable for harvesters, so it should be a good fit for your application.
Question by: Dwayne P on Sep 30, 2025, 6:01 PM
got a valve setup that takes a J Series 20 watt coil. is this the 12V one with flying leads, or am i lookin at the wrong thing
Answer by: Customer Support on Oct 2, 2025, 6:25 AM
For selection, match it to the key identifiers: it is a J Series 20 watt coil rated 12VDC, and it uses a flying lead connection with a 610 lead length. The model number is MCSCJ012DW0B0010 and the catalog number is C1KJ80.
Question by: Jean W on Jun 26, 2025, 7:59 PM
runs continuous duty or is it gonna overheat if I leave it energized all day on a harvester?
Answer by: Customer Support on Jun 28, 2025, 6:58 AM
Continuous duty is exactly what this coil is rated for. It handles 85% to 110% of nominal voltage throughout extended operation, so leaving it energized on harvest equipment without cycling it off is well within its design parameters. No derating or cool-down periods needed under normal conditions.
