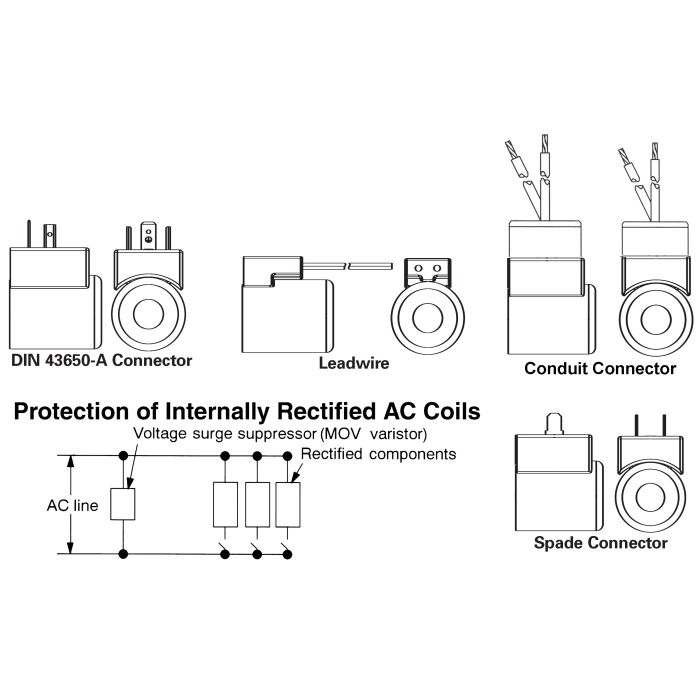

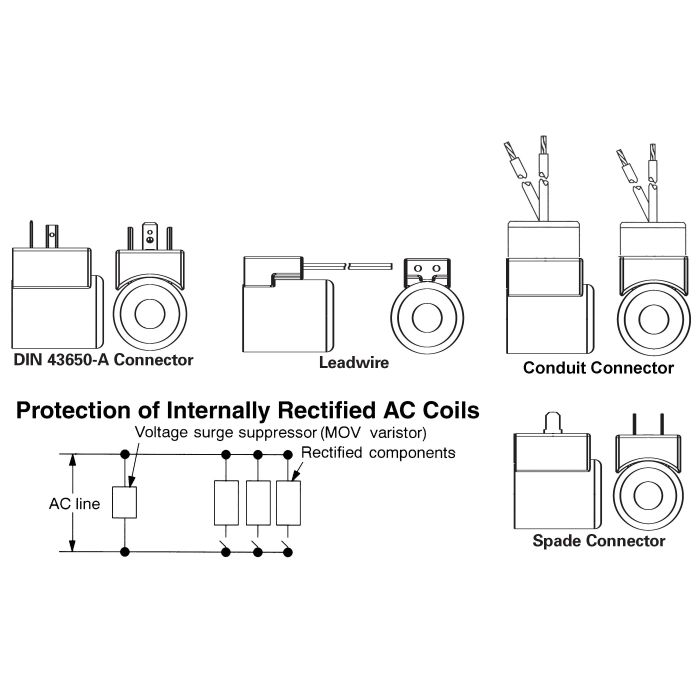

Cartridge Valve Coil, R Series 30 Watt, 24VDC, DIN 43650. Internally rectified|Compact design|Continuous duty

Description & Features

The Cartridge Valve Coil, R Series 30 Watt, 24VDC, DIN 43650, is designed for harvesters, refuse haulers, and both mobile and industrial applications. This component, crafted by Danfoss (Power Solutions II LLC), features internal rectification for maximized efficiency and a compact form factor enabling easier integration into various systems.

Notably, its continuous duty rating ensures reliable performance under extended operational conditions. The R Series 30 Watt coil employs a 24VDC voltage and a DIN 43650 connector type, making it suitable for diverse environments.

Catalog Number: C1BS40

Supplier Part Number: 507848

ECCN: EAR99

Specifications

Application Harvesters, refuse haulers, mobile and industrial applications	Connector Type DIN 43650	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Internally rectified\|Compact design\|Continuous duty	Series R Series 30 Watt	Supplier Part Number 507848	Voltage 24VDC	Product Weight 1.00 lbs	Alternate Part Numbers Alternate Part Number C1BS40, Alternate Part Number DG4V3S-COIL-DIN-H (24VDC)

Similar Products

Model Number	Part Number	Series	Voltage	Connector Type	Features
SC024SPJ00 Cartridge Valve Coil	02-178104	J Series 20 Watt	24VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
SC120APJ00 Cartridge Valve Coil	02-178106	J Series 20 Watt	120VAC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
MCSCS012DQ000010 Cartridge Valve Coil	300AA00009A	S Series 20 Watt	12VDC	1/4" Spade	Internally rectified\|Compact design\|Continuous duty
MCSCJ012DG000010 Cartridge Valve Coil	300AA00081A	J Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCJ024DG000010 Cartridge Valve Coil	300AA00082A	J Series 20 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCJ115AG000010 Cartridge Valve Coil	300AA00085A	J Series 20 Watt	120VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507848 Cartridge Valve Coil	507848	R Series 30 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
SC012DPJ00 Cartridge Valve Coil	02-178078	J Series 20 Watt	12VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
SC024DPJ00 Cartridge Valve Coil	02-178079	J Series 20 Watt	24VDC	1/2 NPT Conduit	Internally rectified\|Compact design\|Continuous duty
MCSCS012DG000010 Cartridge Valve Coil	300AA00001A	S Series 20 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCS115AG000010 Cartridge Valve Coil	300AA00005A	S Series 20 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCP024DG000010 Cartridge Valve Coil	300AA00042A	P Series 23 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCP115AG000010 Cartridge Valve Coil	300AA00045A	P Series 23 Watt	115VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCP230AG000010 Cartridge Valve Coil	300AA00046A	P Series 23 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCJ230AG000010 Cartridge Valve Coil	300AA00086A	J Series 20 Watt	230VAC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCJ012DW0B0010 Cartridge Valve Coil	300AA00095A	J Series 20 Watt	12VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
MCSCJ024DW0B0010 Cartridge Valve Coil	300AA00096A	J Series 20 Watt	24VDC	Flying Lead	Internally rectified\|Compact design\|Continuous duty
MCSCH012DG000010 Cartridge Valve Coil	300AA00121A	H Series 26 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
MCSCH024DG000010 Cartridge Valve Coil	300AA00122A	H Series 26 Watt	24VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty
507847 Cartridge Valve Coil	507847	R Series 30 Watt	12VDC	DIN 43650	Internally rectified\|Compact design\|Continuous duty

Product Questions & Answers (3)

Question by: Todd W on Feb 6, 2026, 12:16 PM

Will this here coil work on different machines, or is it just for them harvesters and refuse trucks?

Answer by: Customer Support on Feb 7, 2026, 4:44 PM

Designed for mobile and industrial applications, this coil suits harvesters and refuse haulers particularly well.

Question by: Hugh D on Feb 27, 2026, 1:35 PM

runs on 24 volt DC right? been trying to track down a replacement coil for a cartridge valve on one of our refuse haulers and want to make sure before i order

Answer by: Customer Support on Mar 1, 2026, 6:48 AM

Correct, this coil runs on 24VDC. It also has internal rectification built in, so if your system is supplying AC power to a bridge rectifier elsewhere in the circuit, that setup differs from what this coil expects. For a straight 24VDC application on a refuse hauler, you're looking at the right part.

Question by: Jerry F on Jan 21, 2026, 9:26 AM

Will this coil work for a mobile application like on a harvester?

Answer by: Customer Support on Jan 23, 2026, 8:08 AM

This R Series coil is definitely suitable, as it's designed by Danfoss for both mobile and industrial uses, including harvesters and refuse haulers.
