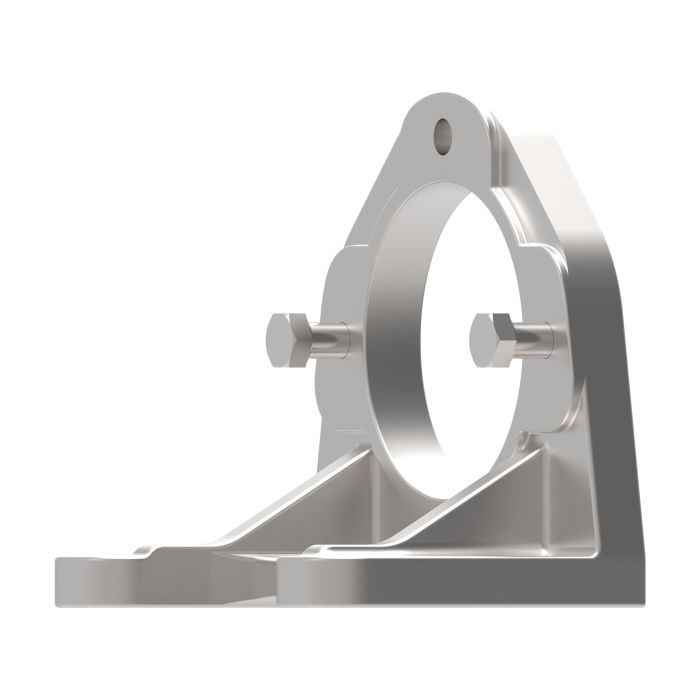

Cast Iron Pump Foot Bracket, 2-Bolt SAE A Flange

Ask A Question

Description & Features

The durable cast iron construction ensures that the foot bracket provides steadfast support and reliability.

Designed for use with pumps or motors that have standard SAE-J 744 2-Bolt mounting flanges this foot bracket is an essential accessory in industrial settings.

The foot bracket features precise dimensional specifications including A=5.31 B=2.75 C=6.00 D=3.00 E=5.00 F=1.44 G=2.50 H=.50 J=4.19 K=3.78 L=.59 M=2.00 N=.50 P=3.253 Q=.69 and R=3/8-16.

This Vickers by Danfoss / Eaton piston pump accessory includes all necessary bolts for immediate installation.

Its design allows either pair of diametrically opposed holes to be used for mounting offering flexibility in its application.

Engineered by Danfoss (Power Solutions II LLC) it is identified by the model number FB-A-10 and catalog number C1BP87.

MPN: EAR99

Supplier Part Number: 422582

Specifications

Dimensions
A=5.31 B=2.75 C=6.00 D=3.00 E=5.00 F=1.44 G=2.50 H=.50 J=4.19 K=3.78 L=.59 M=2.00 N=.50 P=3.253 Q=.69 R=3/8-16 S=.44
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Size
2-Bolt SAE A
Supplier Part Number
422582
Alternate Part Numbers
Alternate Part Number C1BP87, Alternate Part Number FB-A-10, Alternate Part Number FBA10, Alternate Part Number MINO-00900H24600
Product Weight
4.23 lbs

Related Documents

Similar Products

Model Number Part Number Size Dimensions Price Action
Cast Iron Pump Foot Bracket, 2-Bolt SAE B Flange

FB-B-10 Cast Iron Pump Foot Bracket

422583

2-Bolt SAE B

A=7.12 B=3.63 C=6.75 D=3.38 E=5.75 F=1.44 G=2.88 H=.50 J=5.75 K=3.77 L=.59 M=2.00 N=.50 P=4.003 Q=.68 R=1/2-13 S=.68

Product Questions & Answers (3)

Question by: Dwayne M on Feb 9, 2026, 6:36 PM
does this bracket work with standard SAE-J 744 2-bolt flange pumps or is it only for specific Eaton models
Answer by: Customer Support on Feb 11, 2026, 8:11 AM
SAE-J 744 2-bolt mounting flanges are exactly what this bracket is built around, so it's not limited to Eaton equipment. Any pump or motor that conforms to that standard mounting pattern should fit up correctly. The bracket covers the 2-bolt SAE A flange size specifically, so just confirm your unit matches that configuration before ordering.
Question by: Shane M on Mar 26, 2025, 8:51 PM
Will this bracket fit any SAE A 2-bolt pump?
Answer by: Customer Support on Mar 28, 2025, 7:50 AM
This bracket is designed specifically for pumps or motors using the standard SAE-J 744 2-bolt mounting flange.
Question by: Denise F on Oct 1, 2025, 9:10 AM
got a pump with an SAE-J 744 2-bolt SAE A flange. is this the right foot bracket for it?
Answer by: Customer Support on Oct 2, 2025, 8:00 PM
The key is the mounting standard. This bracket is made to mount pumps or motors that use the SAE-J 744 2-bolt flange in SAE A size, so it matches that flange style.
