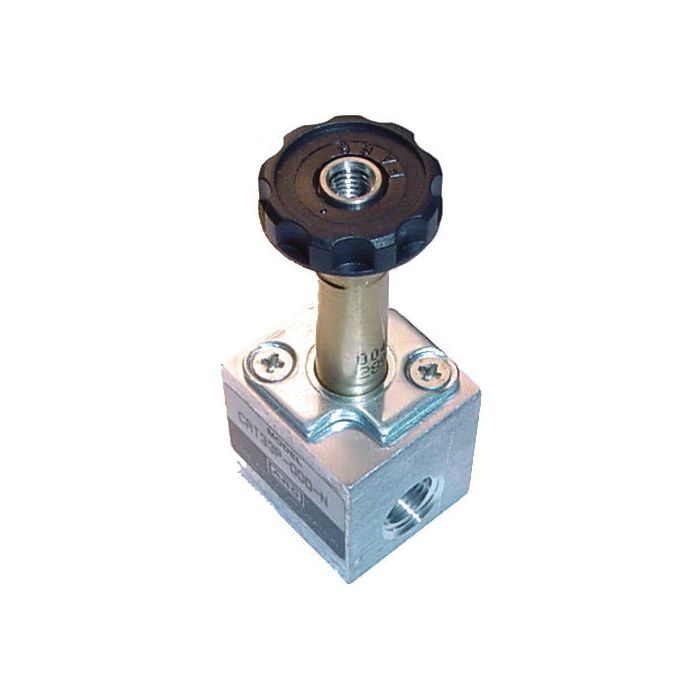

Cat Series Solenoid Operated Pneumatic Valve, 3-way 2-position Normally Open, , 1/8 NPT (Side) Ports, 2 S Flow Rating

Description & Features

The versatile Cat Series Solenoid Operated Pneumatic Valve offers superior performance for low flow applications involving air or inert gas. This valve features a 3-way 2-position normally open configuration providing efficient flow control with its 1/8 NPT side ports. Constructed with a durable aluminum body it operates effectively within a pressure range of 0 to 150 PSI and a temperature range of 0F to 122F.

The valve is designed with a compact structure facilitating easy installation and maintenance. Coils are not included but the unit supports interchangeable AC and DC coils that meet UL and CSA standards. These coils can be oriented in four different directions ensuring adaptability for various setups.

Flow ratings are based on a 100 PSIG input and 85 PSIG output delivering a flow rate of 2 SCFM with a CV factor of 0.0560. The quick-change coil system and Nema 4 classified coil connectors add to the flexibility and ease of use in industrial environments.

With a ported housing and lubrication-free operation this product from Ingersoll-Rand Industrial U.S. Inc. is engineered for reliability and efficiency making it a suitable choice for various pneumatic applications.

MPN: CAT44P-000-N

Supplier Part Number: CAT44P-000-N

Specifications

Coil Not Included	CV Factor 0.06	Brand Ingersoll-Rand Industrial US	Brand Ingersoll-Rand	Pack Size 1.00	UOM EA	Flow Rating (SCFM) 2 S	Housing Ported	Ports 1/8 NPT (Side)	Ports 1/8 NPT (Side)	Supplier Part Number CAT44P-000-N	Valve Type 3-way 2-position Normally Open	Product Weight 0.04 lbs	Alternate Part Numbers Alternate Part Number C1CN27

Similar Products

Model Number	Valve Type	Ports	Flow Rating (SCFM)	CV Factor	Coil	Housing	Price	Action
CAT33P-000-N Cat Series Solenoid Pneumatic Valve	3-way 2-position Normally Closed	1/8 NPT (Side)	2.2	0.0620	Not Included	Ported
CAT44P-000-N Cat Series Solenoid Pneumatic Valve	3-way 2-position Normally Open	1/8 NPT (Side)	2 S	0.0560	Not Included	Ported

Product Questions & Answers (3)

Question by: Frank A on Apr 18, 2025, 11:30 AM

What kinda coils fit this thing, and are they okay for humid spots?

Answer by: Customer Support on Apr 20, 2025, 8:58 AM

This valve uses coils that meet Nema 4 classification, so they're protected against splashing water and are UL and CSA listed. You can use either AC or DC coils, and they're interchangeable.

Question by: Wes C on Dec 7, 2025, 3:27 PM

coil ain't included with this valve -- so any AC or DC coil in that product family gonna work, or do I need to watch out for sizing differences?

Answer by: Customer Support on Dec 9, 2025, 6:34 AM

For this particular valve, the standard coils fit right on the solenoid stem, and AC and DC versions are interchangeable with each other. One thing worth knowing though -- the Cat Series splits into standard flow and high flow models, and the high flow versions use a 30mm coil and 30mm coil connectors, which are different. Since this unit is rated at 2 SCFM with a Cv of 0.0560, it falls in the standard flow category, so you want to make sure any coil you source is matched to that, not the high flow 30mm size. The coils that do fit are UL-listed and CSA compliant, and Class F coils in this line are rated for 100 percent duty cycle.

Question by: Cindy G on Feb 1, 2026, 5:41 PM

trying to keep it simple here, does this valve come with the coil or do i need to order that separate?

Answer by: Customer Support on Feb 3, 2026, 10:08 AM

Coil is not included with this valve, so you will need to supply a coil. It supports interchangeable AC and DC coils on the same solenoid stem, and the coils are UL listed and CSA compliant.
