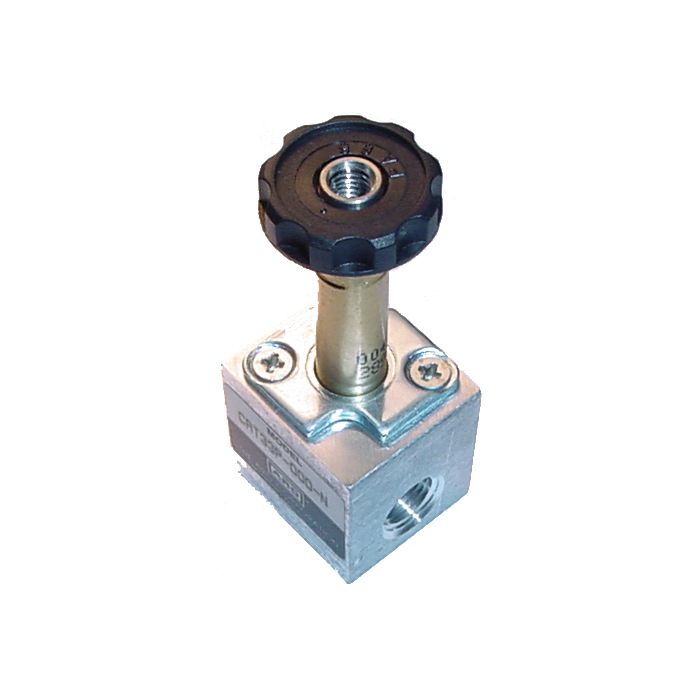

Cat Series 3-Way Solenoid Operated Pneumatic Valves, Up To 6.9 SCFM

Description & Features

Application	Low flow applications for air or inert gas. Higher flow models use 30mm coil and 30mm coil connectors. Plugging the exhaust port with optional 59632-1 (10-32 thread) plug allows 3-way normally closed valve to be used as 2-way normally closed.
Coil	Coils are UL-listed and comply with CSA standards. AC and DC coils are interchangeable on the same solenoid stem. Note: High Flow models use 30mm coil and 30mm coil connectors. UL File #MH13513, CSA File #LR51090. Class F coils are rated for 100% duty cycle. Coil connectors meet Nema 4 classification.
Features	Compact design. Quick change coil can be oriented in 4 directions.
Flow Rating	Based on 100 PSIG input and 85 PSIG output.
Lubrication	Not required.
Materials	Aluminum body.
Operating Pressure Range	0 to 150 PSI.
Temperature Range	0°F to 122°F.

Model Number	Valve Type	Ports	Flow Rating (SCFM)	CV Factor	Coil	Housing	Price	Action
CAT33P-000-N Cat Series Solenoid Pneumatic Valve	3-way 2-position Normally Closed	1/8 NPT (Side)	2.2	0.0620	Not Included	Ported
CAT44P-000-N Cat Series Solenoid Pneumatic Valve	3-way 2-position Normally Open	1/8 NPT (Side)	2 S	0.0560	Not Included	Ported
