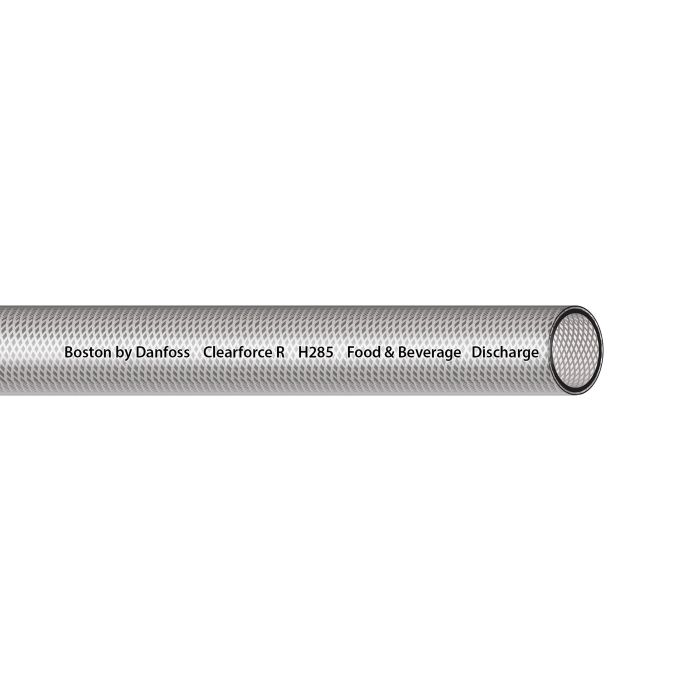

Clearforce Reinforced Standard Duty PVC Hose, 0.88 Inch OD, 0.63 Inch ID, Up To 200.00 PSI

Ask A Question

Description & Features

The Clearforce Reinforced Standard Duty PVC Hose 0.88 Inch OD 0.63 Inch ID Up To 200.00 PSI is designed for applications such as food and beverage dispensing powdered food manufacturing and spraying fertilizers and pesticides. With a maximum working pressure of 200 PSI this hose is ideal for in-plant air and water service water and bilge lines and washdown hose requirements.

The hose is constructed from extruded PVC with fiber reinforcement ensuring premium abrasion resistance and flexibility. It features a clear color for visibility and a minimum bend radius of 2.5 inches. The Clearforce reinforced PVC hose can withstand temperatures ranging from +15deg;F to +150deg;F making it suitable for various indust applications.

Eatonrsquo;s line of clear PVC hose products comply with FDA Regulation 21 CFR 177.1520 and are NSF-51 listed ensuring they meet strict standards for use in food and beverage transfer lines drain lines sight gauges potable water transfer and pneumatic applications requiring higher pressure. Fittings compatible with this hose include hose barbs hose clamps and crimp ferrules.

MPN: H28510-300R

Supplier Part Number: H28510-300R

Specifications

Abrasion Resistance
28
Application
For food and beverage dispensing, powdered food manufacturing, water and bilge lines, washdown hose, in-plant air and water service and spraying and conveying fertilizers and pesticides.
Color
Clear
Construction
Extruded
Cover Material
PVC
Dash Size
-10
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
12.00
UOM
FT
I.D.
0.625 in
Lay Line Style
Ink Jet
Maximum Working Pressure
200
Minimum Bend Radius
2.50
Minimum Bend Radius
2.5
Minimum Working Temperature
15
O.D.
0.875 in
Package Qty.
300
Reinforcement Material
Fiber
Supplier Part Number
H28510-300R
Tube Material
Polyvinyl Chloride (PVC)
Alternate Part Numbers
Alternate Part Number C1KW15
Product Weight
0.07 lbs

Related Documents

Similar Products

Model Number I.D. O.D. Maximum Working Pressure Minimum Bend Radius Package Qty. Price Action
Clearforce Reinforced Standard Duty PVC Hose, 0.45 Inch OD, 0.25 Inch ID, Up To 250.00 PSI

H28504-125R Clearforce Reinforced PVC Hose

0.25 in

0.45 in

250

1

125

Clearforce Reinforced Standard Duty PVC Hose, 0.59 Inch OD, 0.38 Inch ID, Up To 225.00 PSI

H28506-300R Clearforce Reinforced PVC Hose

0.38 in

0.59 in

225

1.25

300

Clearforce Reinforced Standard Duty PVC Hose, 0.75 Inch OD, 0.50 Inch ID, Up To 200.00 PSI

H28508-300R Clearforce Reinforced PVC Hose

0.5 in

0.75 in

200

2

300

Clearforce Reinforced Standard Duty PVC Hose, 0.88 Inch OD, 0.63 Inch ID, Up To 200.00 PSI

H28510-300R Clearforce Reinforced PVC Hose

0.625 in

0.875 in

200

2.5

300

Clearforce Reinforced Standard Duty PVC Hose, 1.03 Inch OD, 0.75 Inch ID, Up To 150.00 PSI

H28512-300R Clearforce Reinforced PVC Hose

0.75 in

1.031 in

150

2.5

300

Clearforce Reinforced Standard Duty PVC Hose, 1.31 Inch OD, 1.00 Inch ID, Up To 125.00 PSI

H28516-200R Clearforce Reinforced PVC Hose

1 in

1.313 in

125

3.5

200

Clearforce Reinforced Standard Duty PVC Hose, 1.69 Inch OD, 1.25 Inch ID, Up To 100.00 PSI

H28520-100 Clearforce Reinforced PVC Hose

1.25 in

1.688 in

100

100

Clearforce Reinforced Standard Duty PVC Hose, 1.94 Inch OD, 1.50 Inch ID, Up To 100.00 PSI

H28524-100 Clearforce Reinforced PVC Hose

1.5 in

1.938 in

100

100

Product Questions & Answers (3)

Question by: Howard T on Feb 16, 2026, 6:42 AM
Is this hose okay for spraying fertilizer, or is it too flimsy?
Answer by: Customer Support on Feb 18, 2026, 6:12 AM
This hose is designed for spraying fertilizers and pesticides, among other things. It's made from extruded PVC with fiber reinforcement to hold up to abrasion and stay flexible.
Question by: Wes S on Jun 21, 2025, 10:00 AM
we run washdown lines in a processing facility and need something that can handle both the pressure and the cleaning chemicals without going brittle on us, this hose rated for that kind of work?
Answer by: Customer Support on Jun 23, 2025, 6:29 AM
For washdown hose applications, this one holds up well. It's built from extruded PVC with fiber reinforcement, which gives it good flexibility and premium abrasion resistance so it won't wear down fast from regular handling. The working pressure tops out at 200 PSI, which covers most in-plant washdown setups just fine. Temperature-wise, it runs from 15 degrees F up to 150 degrees F, so as long as you're not pushing hot steam through it, you're in good shape. It also carries NSF-51 listing and meets FDA Regulation 21 CFR 177.1520, which matters when you're working anywhere near food processing lines.
Question by: Earl H on Jun 19, 2025, 5:18 PM
got a washdown hose setup in the shop, will this clear PVC line hold up or is it more of a light duty deal?
Answer by: Customer Support on Jun 21, 2025, 7:27 AM
For washdown and in plant air and water service, this reinforced PVC hose is a good fit since it is rated up to 200 PSI working pressure and has premium abrasion resistance with fiber reinforcement for flexibility.
