Code 61 Split Flange Kit, 1.50 (-12) Flange Head, Up to 5000.00 PSI

Description & Features

The Anchor Fluid Power Code 61 Split Flange Kit features a 1.50-inch flange head designed for applications requiring robust hydraulic sealing up to 5000 PSI. This kit includes two flange halves, four grade 8 hex bolts, four lock washers, and a 90 durometer Buna-N O-Ring.

Buna-N materials offer compatibility with petroleum and water-based hydraulic fluids and are suitable for temperatures ranging from -40deg;F to +250deg;F. Zinc plating with a yellow chromate finish ensures corrosion resistance and durability in various industrial environments.

For convenience, the kit does not include thread sealant, providing flexibility in installation requirements. The torque rating for this product ranges between 225-350 lb-in, meeting industry standards for secure fastening.

Note: If your application requires fluid compatibility or high temperatures that exceed the limits of Buna-N, please contact us for alternative options.

MPN: 12SFO

Supplier Part Number: 12SFO

Specifications

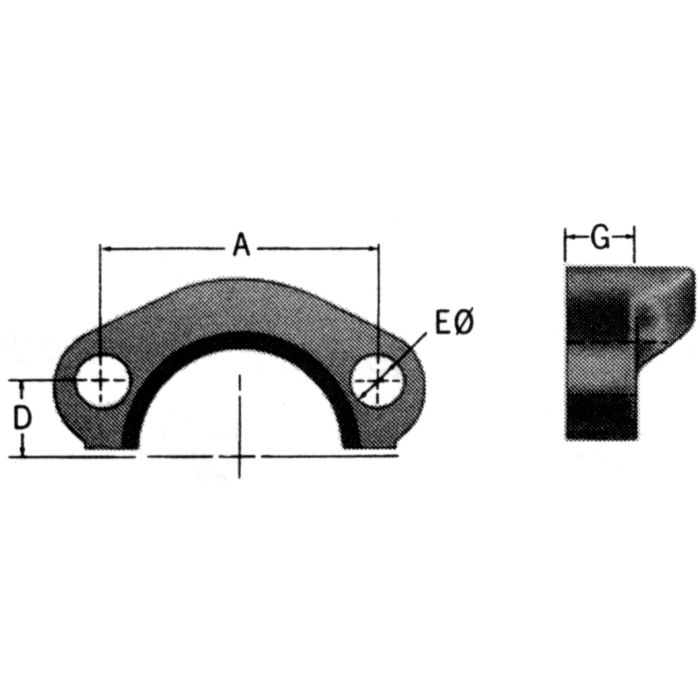

A 1.88	D 0.44	Dash Size -12	E 0.41	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 1.50	G 0.56	Maximum Operating Pressure 5000	Supplier Part Number 12SFO	Thread Sealant No	Torque Rating 225-350 lb-in	Torque Rating 225-350 lb-in	Product Weight 0.68 lbs	Alternate Part Numbers Alternate Part Number C1AJ84, Alternate Part Number FMC102-1855, Alternate Part Number MI-00347257, Alternate Part Number MINO-00054F82612

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
16SFO Code 61 Split Flange Kit	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
20SFO Code 61 Split Flange Kit	2	-20	4000	425-550 lb-in	2.31	0.59	0.47	0.56
24SFO Code 61 Split Flange Kit	2.38	-24	3000	550-700 lb-in	2.75	0.7	0.53	0.62
32SFO Code 61 Split Flange Kit	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
40SFO Code 61 Split Flange Kit	3.31	-40	2500	950-1100 lb-in	3.5	1	0.53	0.75
FF593-16 Code 61 Split Flange Kit	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
8SFO Code 61 Split Flange Kit	0.5	-08	5000	175-225 lb-in	0.86	1.5	0.75	1.22
FF593-32 Code 61 Split Flange Kit	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62

Product Questions & Answers (3)

Question by: Larry R on Jan 30, 2026, 4:56 PM

what all comes in the kit here and how tight do i need to get the bolts

Answer by: Customer Support on Feb 1, 2026, 7:40 AM

Everything required for a complete connection is right in the box. You will receive the two flange halves, four grade 8 hex bolts, four lock washers, and one 90-durometer Buna-N O-ring. Make sure to torque your hardware between 225 and 350 lb-in during installation.

Question by: Keith H on Jun 11, 2025, 9:42 AM

got a -12 code 61 flange head, is this kit the right size or am i mixing things up

Answer by: Customer Support on Jun 13, 2025, 9:11 AM

This kit is a Code 61 split flange kit in dash size -12 with a 1.50 inch flange head diameter. The package includes two flange halves, four grade 8 hex bolts, four lock washers, and one 90 durometer Buna-N O-ring.

Question by: Roy E on Jan 3, 2026, 5:23 PM

What size is this flange head? Just wanna make sure it'll fit right.

Answer by: Customer Support on Jan 4, 2026, 7:52 PM

The flange head on this split flange kit measures 1.50 inches in diameter. It's a Code 61 style, designed for systems needing robust sealing.
