Code 61 Split Flange Kit, 2.38 (-24) Flange Head, Up to 3000.00 PSI

Description & Features

The Anchor Fluid Power Code 61 Split Flange Kit is engineered for demanding industrial applications. Designed to accommodate a flange head diameter of 2.38 inches, this kit is capable of withstanding pressures up to 3000 PSI.

Featured components include two flange halves, four grade 8 hex bolts, four lock washers, and a 90 durometer Buna-N O-Ring. The plating is zinc with a yellow chromate finish, ensuring durability in harsh environments.

Buna-N material is suitable for use with petroleum and water-based hydraulic fluids, offering a reliable temperature range from -40deg;F to +250deg;F. With a torque rating between 550-700 lb-in, this kit ensures secure connections under high-pressure conditions.

For applications requiring materials beyond Buna-N due to fluid compatibility or temperature constraints, additional options are available upon request.

MPN: {{ecc_mpn}}

Supplier Part Number: {{supplierpartnumber}}

Specifications

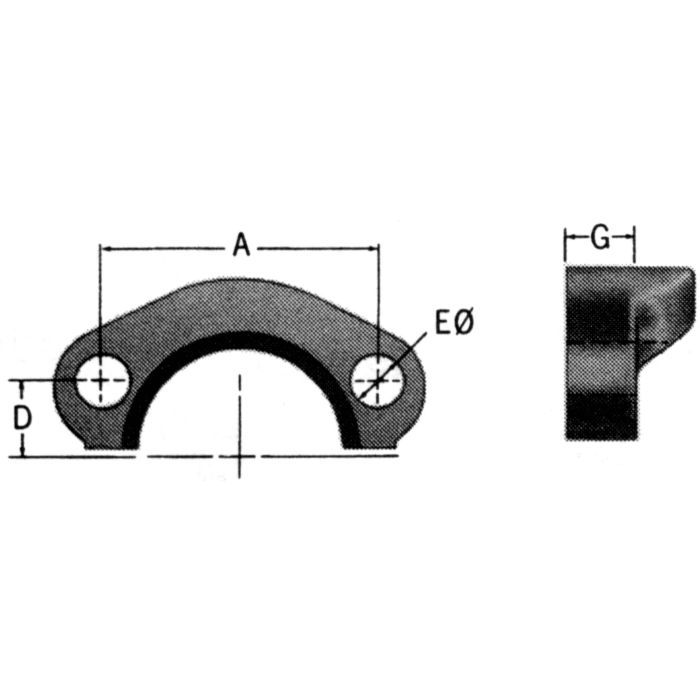

A 2.75	D 0.70	Dash Size -24	E 0.53	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 2.38	G 0.62	Maximum Operating Pressure 3000	Supplier Part Number 24SFO	Thread Sealant No	Torque Rating 550-700 lb-in	Torque Rating 550-700 lb-in	Product Weight 1.52 lbs	Alternate Part Numbers Alternate Part Number C1BG72, Alternate Part Number FMC102-0273, Alternate Part Number MI-00347280, Alternate Part Number MINO-00054F82618

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
12SFO Code 61 Split Flange Kit	1.5	-12	5000	225-350 lb-in	1.88	0.44	0.41	0.56
16SFO Code 61 Split Flange Kit	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
20SFO Code 61 Split Flange Kit	2	-20	4000	425-550 lb-in	2.31	0.59	0.47	0.56
24SFO Code 61 Split Flange Kit	2.38	-24	3000	550-700 lb-in	2.75	0.7	0.53	0.62
32SFO Code 61 Split Flange Kit	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
40SFO Code 61 Split Flange Kit	3.31	-40	2500	950-1100 lb-in	3.5	1	0.53	0.75
FF593-16 Code 61 Split Flange Kit	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
8SFO Code 61 Split Flange Kit	0.5	-08	5000	175-225 lb-in	0.86	1.5	0.75	1.22
FF593-32 Code 61 Split Flange Kit	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62

Product Questions & Answers (4)

Question by: Hank P on Aug 28, 2025, 5:42 PM

got a -24 code 61 setup, is this kit the right size or am i gonna be fightin it

Answer by: Customer Support on Aug 30, 2025, 6:55 AM

For a -24 Code 61 split flange connection, this kit matches that dash size and uses a 2.38 inch flange head diameter. The set comes with two flange halves, four grade 8 hex bolts, four lock washers, and one 90 durometer Buna-N O-ring.

Question by: Diane M on May 6, 2025, 1:24 PM

What size O-ring does this kit use? Just wanna make sure it'll fit my setup.

Answer by: Customer Support on May 8, 2025, 10:21 AM

Included in this kit is a 90 durometer Buna-N O-ring.

Question by: Neal C on Jul 28, 2025, 10:06 AM

Does this kit work with petroleum-based hydraulic fluid, or do I need something different for that?

Answer by: Customer Support on Jul 29, 2025, 5:12 PM

Petroleum-based fluid is exactly what the Buna-N O-Ring in this kit is built for. Water-based hydraulic fluids are also compatible. The usable temperature range runs from -40°F up to 250°F, so most standard hydraulic systems will fall well within that window. If your setup runs fluids outside those parameters, a different O-Ring material would be needed, but for conventional petroleum or water-based systems this kit handles it fine.

Question by: Rick C on Aug 13, 2025, 11:25 AM

trying to swap out an old split flange kit, is this one the right size for a -24 head

Answer by: Customer Support on Aug 14, 2025, 3:36 PM

The key callouts are Code 61, dash size -24, and a 2.38 inch flange head diameter. If your connection matches those, this kit is the correct size.
