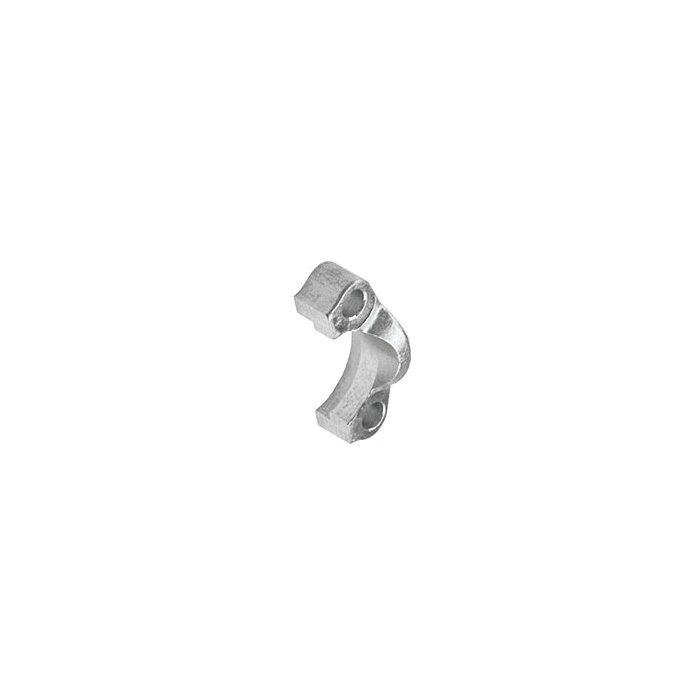

Code 61 Split Flange Kit, 0.50 (-08) Flange Head, Up to 5000.00 PSI

Description & Features

The Code 61 Split Flange Kit 0.50 (-08) Flange Head is designed for high-pressure industrial fluid power applications accommodating up to 5000 PSI. This robust kit includes two flange halves four grade 8 hex bolts four lock washers and one 90 durometer Buna-N O-Ring providing a reliable sealing solution.

Manufactured by Anchor Fluid Power the kit features a zinc-plated yellow chromate finish ensuring durability and corrosion resistance. The Buna-N O-Ring is suitable for use with petroleum and water-based hydraulic fluids with a temperature range of -40deg;F to +250deg;F making it versatile for various environmental conditions.

Engineered for a torque rating of 175-225 lb-in this #8 CD61 Split Flange Kit meets the demands of heavy-duty industrial systems providing secure and efficient connections.

Supplier Part Number: 8SFO

MPN: C1ZY50

Specifications

Brand ANCHOR FLUID POWER	a Dimensions 0.86 in	Connection Size 1 1/2 in	Connection Type Flanged	Connection Type 1 SAE Code 61 Flange	d Dimensions 1-1/2 in	Dash Size 08	Dimensions 2.12 in H x 9.86 in W x 0.75 in D	e Dimensions 3/4 in	Finish Trivalent Silver-Plated	Fitting Type Flange Kit	g Dimensions 1.22 in	Material Steel	Material Construction Carbon Steel	Maximum Operating Pressure 5000 psi	Operating Temperature -40 to 250 deg F	Series SFO Series	Sg Recommended Fluids Buna-N is Compatible with Petroleum and Water Base Hydraulic Fluids	Thread Sealant Without Thread Sealant

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	a Dimensions	d Dimensions	e Dimensions	G
12SFO Code 61 Split Flange Kit	1.5	-12	5000	225-350 lb-in	1.88 in	0.44 in	0.41 in	0.56
16SFO Code 61 Split Flange Kit	1.75	-16	5000	325-425 lb-in	2.06 in	0.52 in	0.41 in	0.62
20SFO Code 61 Split Flange Kit	2	-20	4000	425-550 lb-in	2.31 in	0.59 in	0.47 in	0.56
24SFO Code 61 Split Flange Kit	2.38	-24	3000	550-700 lb-in	2-3/4 in	0.7 in	0.53 in	0.62
32SFO Code 61 Split Flange Kit	2.81	-32	3000	650-800 lb-in	3.06 in	0.84 in	0.53 in	0.62
40SFO Code 61 Split Flange Kit	3.31	-40	2500	950-1100 lb-in	3-1/2 in	1 in	0.53 in	0.75
FF593-16 Code 61 Split Flange Kit	1.75	-16	5000	325-425 lb-in	2.06 in	0.52 in	0.41 in	0.62
FF593-32 Code 61 Split Flange Kit	2.81	-32	3000	650-800 lb-in	3.06 in	0.84 in	0.53 in	0.62

Product Questions & Answers (1)

Question by: Lance G on Nov 27, 2025, 4:25 PM

what all comes in this kit, and will the hardware hold up at 5000 PSI?

Answer by: Customer Support on Nov 28, 2025, 6:04 PM

Each kit includes two flange halves, four grade 8 hex bolts, four lock washers, and one 90 durometer Buna-N O-Ring. Grade 8 hardware is about as tough as it gets for this type of connection, and the kit is rated to handle up to 5000 PSI, so yes, it's built for full-pressure industrial hydraulic service.
