Code 61 Split Flange Kit, 2.81 (-32) Flange Head, Up to 3000.00 PSI

Description & Features

The Code 61 Split Flange Kit is designed for demanding hydraulic applications. Featuring a 2.81" flange head it supports pressures up to 3000 PSI providing robust performance and reliability.

Manufactured by Danfoss Power Solutions this steel adapter kit includes two flange halves four grade 8 hex bolts four lock washers and one 90 durometer Buna-N O-Ring. The components are zinc plated with a yellow chromate finish ensuring excellent corrosion resistance.

The kit is ideal for systems operating with petroleum and water-based hydraulic fluids with a temperature range from -40deg;F to +250deg;F. For applications requiring different material compatibility or high temperatures alternative O-Ring options are available upon request.

Recommended fluids compatibility and the efficient design of the Code 61 Split Flange Kit ensure dependable sealing and minimal maintenance requirements.

MPN: EAR99

Supplier Part Number: FF593-32

Specifications

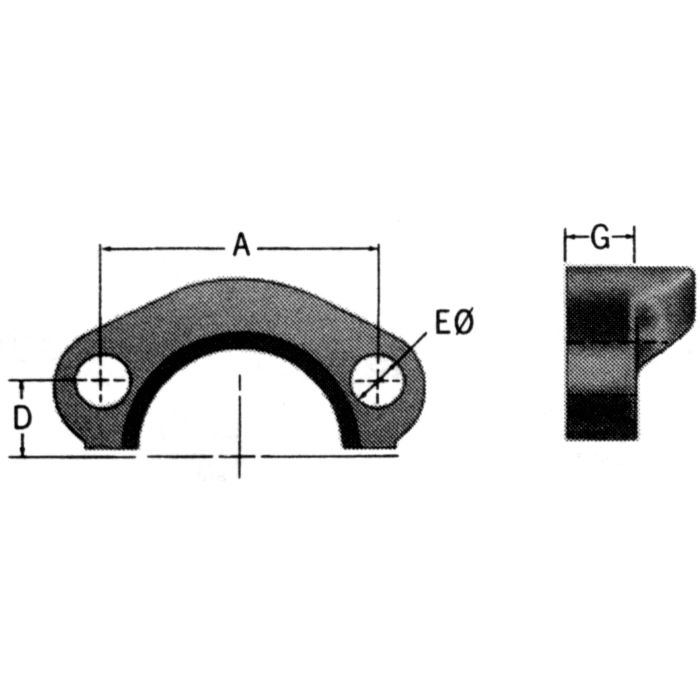

A 3.06	D 0.84	Dash Size -32	E 0.53	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 2	End Type 1 Flanged	Flange Head Dia. 2.81	G 0.62	Maximum Operating Pressure 3000	Minimum Working Temperature -40	Supplier Part Number FF593-32	Thread Sealant No	Torque Rating 650-800 lb-in	Torque Rating 650-800 lb-in	Product Weight 1.55 lbs	Alternate Part Numbers Alternate Part Number C1CV44

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
12SFO Code 61 Split Flange Kit	1.5	-12	5000	225-350 lb-in	1.88	0.44	0.41	0.56
16SFO Code 61 Split Flange Kit	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
20SFO Code 61 Split Flange Kit	2	-20	4000	425-550 lb-in	2.31	0.59	0.47	0.56
24SFO Code 61 Split Flange Kit	2.38	-24	3000	550-700 lb-in	2.75	0.7	0.53	0.62
32SFO Code 61 Split Flange Kit	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62
40SFO Code 61 Split Flange Kit	3.31	-40	2500	950-1100 lb-in	3.5	1	0.53	0.75
FF593-16 Code 61 Split Flange Kit	1.75	-16	5000	325-425 lb-in	2.06	0.52	0.41	0.62
8SFO Code 61 Split Flange Kit	0.5	-08	5000	175-225 lb-in	0.86	1.5	0.75	1.22
FF593-32 Code 61 Split Flange Kit	2.81	-32	3000	650-800 lb-in	3.06	0.84	0.53	0.62

Product Questions & Answers (3)

Question by: Sherry G on Oct 10, 2025, 11:29 AM

What size bolts does this use? Just wanna make sure I have 'em on hand before I start.

Answer by: Customer Support on Oct 12, 2025, 6:19 AM

The kit comes with four grade 8 hex bolts, so you shouldn't need to source any separately for installation.

Question by: Ray M on Jul 4, 2025, 4:35 PM

Running a system on petroleum-based hydraulic fluid around 2500 PSI. This a Code 61 flange setup, just want to make sure the o-ring that comes with it ain't gonna give me trouble down the road.

Answer by: Customer Support on Jul 6, 2025, 12:45 PM

Buna-N handles petroleum and water-based hydraulic fluids without issue, and 2500 PSI sits well within the 3000 PSI rated capacity of this kit. The included 90 durometer o-ring gives you a firm, reliable seal under those conditions. Only time you'd need to look at a different o-ring material is if your fluid type or operating temperature pushes outside what Buna-N can handle, which for standard petroleum fluid at normal system temps, you're not going to hit that wall.

Question by: Travis J on Feb 19, 2026, 2:18 PM

got a -32 code 61 flange connection, is this the kit with the right size flange head?

Answer by: Customer Support on Feb 21, 2026, 11:46 AM

This kit is a SAE Code 61 split flange kit in dash size -32 with a 2.81 inch flange head diameter, and it comes with the two flange halves, four grade 8 bolts, four lock washers, and a 90 durometer Buna-N O-ring.
