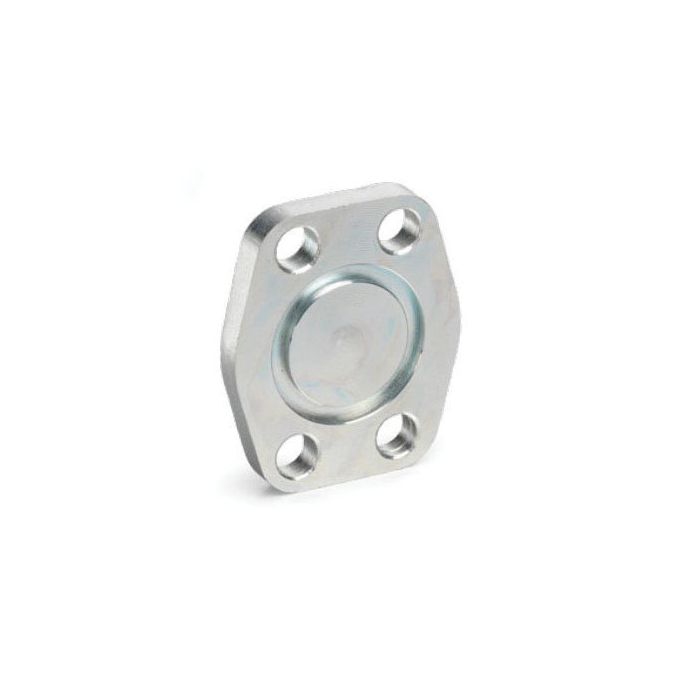

SAE 4-Bolt Flange Steel Adapter, 1.50 Inch Code 62 Flange Shipping Plate

Description & Features

The SAE 4-Bolt Flange Steel Adapter, 1.50 Inch Code 62 Flange Shipping Plate is a robust solution designed for industrial applications requiring secure and reliable hydraulic connections. This component features a pad size of 1.5 inches and is crafted from durable steel to ensure longevity and performance under demanding conditions. The dimensions, including an A dimension of 3.75 inches and a B dimension of 4.44 inches, provide precise fitment and compatibility with Code 62 flange systems.

Manufactured by Anchor Fluid Power, this shipping plate is part of the Flange Accessories product line, ensuring it meets high standards of quality and reliability. Its specific design caters to professionals seeking effective solutions for hydraulic systems, offering a seamless integration into existing setups.

SKU: SPX-24U

Supplier Part Number (MPN): SPX-24U

Alternate Part Numbers: C1KN57, MI-03944325, MINO-00054H04899

Specifications

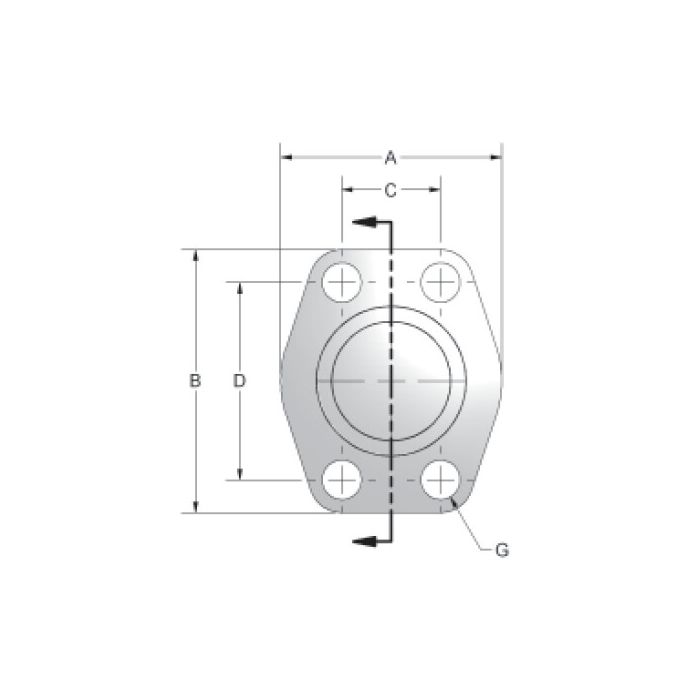

A 3.75	B 4.44	C 1.44	D 3.13	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Manual Override Option No	Pad Size 1.50	Supplier Part Number SPX-24U	Product Weight 1.75 lbs	Alternate Part Numbers Alternate Part Number C1KN57, Alternate Part Number MI-03944325, Alternate Part Number MINO-00054H04899

Similar Products

Model Number	Pad Size	A	B	C	D
SPX-20U Code 62 Flange Shipping Plate	1.25	3.06	3.75	1.25	2.625
SPX-24U Code 62 Flange Shipping Plate	1.5	3.75	4.44	1.437	3.125
SPX-32U Code 62 Flange Shipping Plate	2	4.5	5.25	1.75	3.812

Product Questions & Answers (3)

Question by: Steve Y on Dec 5, 2025, 9:36 AM

Will this flange work with a standard Code 62 setup?

Answer by: Customer Support on Dec 6, 2025, 1:25 PM

Yes, this adapter is designed for seamless integration with Code 62 flange systems, ensuring secure and reliable hydraulic connections.

Question by: Rhonda B on Oct 21, 2025, 8:05 PM

What're the actual dimensions on this shipping plate? Trying to make sure it'll fit up with what we already got on the line.

Answer by: Customer Support on Oct 23, 2025, 8:18 AM

The plate measures 3.75 inches on the A dimension and 4.44 inches on the B dimension, with a C dimension of 1.437 inches and a D dimension of 3.125 inches. The pad size comes in at 1.5 inches, and the whole thing is built around a Code 62 four-bolt flange pattern. If you're matching it to an existing Code 62 setup, those numbers should line up without issue.

Question by: Peggy E on Dec 7, 2025, 6:14 AM

trying to replace a shipping plate on a code 62 four bolt flange, is this the one for a 1.5 pad size?

Answer by: Customer Support on Dec 8, 2025, 8:58 AM

For a Code 62 SAE 4-bolt flange shipping plate, this part matches a 1.50 inch pad size and is built around that Code 62 flange setup.
