Code 62 Split Flange Kit, 1.63 (-12) Flange Head, Up to 6000.00 PSI

Description & Features

The ANCHOR Fluid Power Split Flange Kit serves as a reliable choice for high-pressure applications up to 6000.00 PSI. Engineered for robust performance, this kit is designed with a 1.63" (-12) flange head diameter, ensuring optimal compatibility with petroleum and water-based hydraulic fluids.

This kit includes two flange halves, four grade 8 hex bolts, four lock washers, and one 90-durometer Buna-N O-ring. Featuring a zinc-plated yellow chromate finish, it offers enhanced corrosion resistance which guarantees durability and longevity in harsh conditions. The Buna-N O-ring operates effectively within a temperature range of -40deg;F to +250deg;F.

The torque rating stands between 300-400 lb-in, making it suitable for demanding industrial environments. Note: For applications requiring high-temperature or specific fluid compatibility other than Buna-N, specialized options are available upon request.

Supplier Part Number: 12SFXO

Specifications

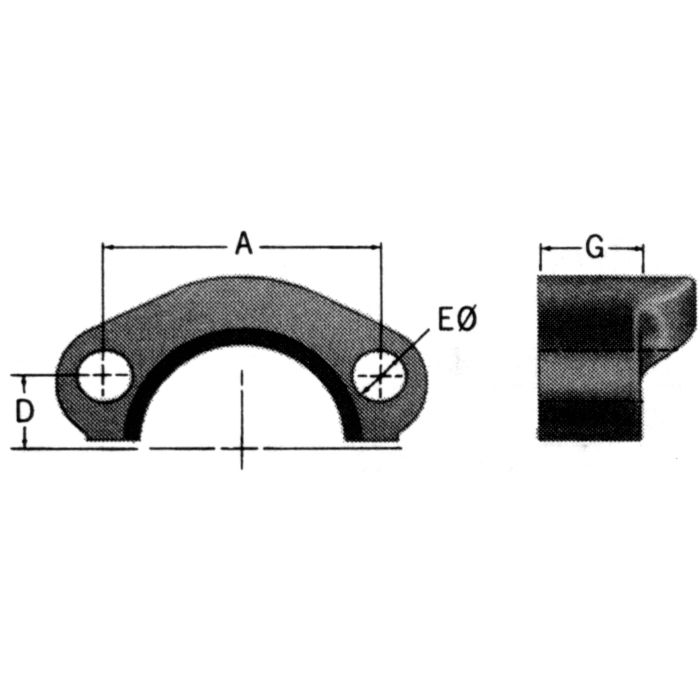

A 2	D 0.47	Dash Size -12	E 0.42	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 1.63	G 0.75	Maximum Operating Pressure 6000	Supplier Part Number 12SFXO	Thread Sealant No	Torque Rating 300-400 lb-in	Torque Rating 300-400 lb-in	Product Weight 1.02 lbs	Alternate Part Numbers Alternate Part Number 12SFXO-HSC, Alternate Part Number C1AJ85

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
16SFXO Code 62 Split Flange Kit	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94
20SFXO Code 62 Split Flange Kit	2.12	-20	6000	750-900 lb-in	2.62	0.62	0.6	1.06
12SFXO Code 62 Split Flange Kit	1.63	-12	6000	300-400 lb-in	2	0.47	0.42	0.75
24SFXO Code 62 Split Flange Kit	2.5	-24	6000	1400-1600 lb-in	3.12	0.72	0.66	1.19
FF595-16 Code 62 Split Flange Kit	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94

Product Questions & Answers (2)

Question by: Gary G on May 4, 2025, 7:52 AM

got a -12 code 62 flange head, will this kit match that 1.63 setup or am i off a size?

Answer by: Customer Support on May 5, 2025, 3:11 PM

Fit comes down to the dash size and flange head diameter. This kit is a Code 62 split flange kit for dash size -12 with a 1.63 inch flange head diameter, and it includes the matching O-ring and hardware for that size.

Question by: Phil M on Nov 26, 2025, 3:32 PM

what all comes in this kit, and is the o-ring already included or do you have to buy that separate?

Answer by: Customer Support on Nov 28, 2025, 1:59 PM

Everything you need for the connection is in the box. Each kit ships with two flange halves, four grade 8 hex bolts, four lock washers, and one 90-durometer Buna-N O-ring. Nothing extra to track down for a standard installation.
