Code 62 Split Flange Kit, 1.88 (-16) Flange Head, Up to 6000.00 PSI

Description & Features

Enhance your hydraulic applications with the Code 62 Split Flange Kit featuring a 1.88-inch flange head and a maximum operating pressure of 6000 PSI. Engineered for reliability and efficiency, this kit includes two flange halves, four grade 8 hex bolts, four lock washers, and a 90 durometer Buna-N O-Ring, providing a comprehensive solution for your fluid power needs.

Ideal for high-pressure environments, the zinc-plated yellow chromate finish ensures durability and corrosion resistance. Compatible with petroleum and water-based hydraulic fluids, the Buna-N O-Ring operates efficiently within a temperature range of -40deg;F to +250deg;F, making it versatile for various industrial applications.

With a torque rating of 500-600 lb-in, this split flange kit offers secure and consistent performance. For applications requiring specific material compatibility or high-temperature conditions beyond Buna-Nrsquo;s capacity, please contact us for alternative solutions.

Catalog Number: C1AL36

Brand: Anchor Fluid Power

Maximum Operating Pressure: 6000 PSI

Supplier Part Number: 16SFXO

Specifications

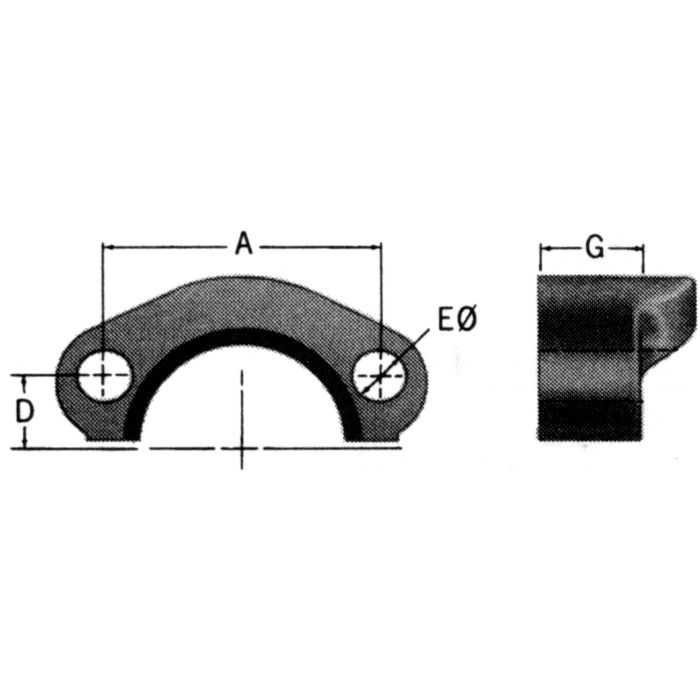

A 2.25	D 0.55	Dash Size -16	E 0.50	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Flange Head Dia. 1.88	G 0.94	Maximum Operating Pressure 6000	Supplier Part Number 16SFXO	Thread Sealant No	Torque Rating 500-600 lb-in	Torque Rating 500-600 lb-in	Product Weight 1.54 lbs	Alternate Part Numbers Alternate Part Number C1AL36

Similar Products

Model Number	Flange Head Dia.	Dash Size	Maximum Operating Pressure	Torque Rating	A	D	E	G
16SFXO Code 62 Split Flange Kit	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94
20SFXO Code 62 Split Flange Kit	2.12	-20	6000	750-900 lb-in	2.62	0.62	0.6	1.06
12SFXO Code 62 Split Flange Kit	1.63	-12	6000	300-400 lb-in	2	0.47	0.42	0.75
24SFXO Code 62 Split Flange Kit	2.5	-24	6000	1400-1600 lb-in	3.12	0.72	0.66	1.19
FF595-16 Code 62 Split Flange Kit	1.88	-16	6000	500-600 lb-in	2.25	0.55	0.5	0.94

Product Questions & Answers (4)

Question by: Hank B on Sep 22, 2025, 6:35 AM

got a -16 code 62 setup, is this kit the one with the o-ring and all the bolts or do i need to buy that stuff separate

Answer by: Customer Support on Sep 23, 2025, 7:20 PM

In the box you get the full split flange kit: (2) flange halves, (4) Grade 8 hex bolts, (4) lock washers, and (1) 90 durometer Buna-N O-ring.

Question by: Terry M on Apr 18, 2025, 4:13 PM

what all comes in this kit, and will it handle 6000 PSI without any issues?

Answer by: Customer Support on Apr 20, 2025, 7:39 AM

You get two flange halves, four grade 8 hex bolts, four lock washers, and a 90 durometer Buna-N O-ring, so everything you need to make the connection is right there in the box. The kit is rated up to 6000 PSI, so high-pressure hydraulic lines are well within its range.

Question by: Steve M on May 15, 2025, 6:42 AM

trying to swap out a #16 split flange kit, is this the one with the 1.88 flange head?

Answer by: Customer Support on May 17, 2025, 6:17 AM

You are looking at a Code 62 split flange kit for dash size -16 with a 1.88 inch flange head diameter, so it matches the common “#16” callout for this style.

Question by: Steve W on Nov 1, 2025, 8:03 PM

What all comes in this kit?

Answer by: Customer Support on Nov 2, 2025, 9:26 PM

This Code 62 split flange kit includes two flange halves, four grade 8 hex bolts, four lock washers, and one 90 durometer Buna-N O-Ring.
