Code 62 Split Flange Kits
Description & Features
Products

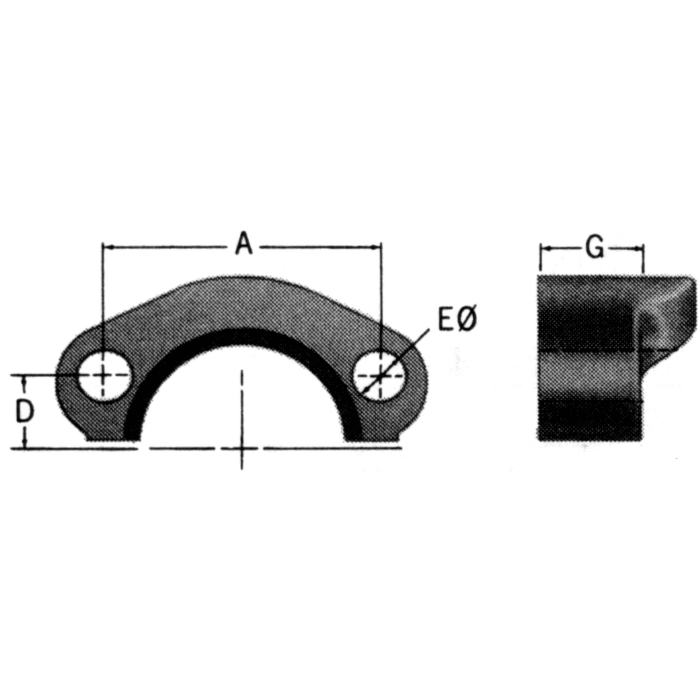

| Model Number | Flange Head Dia. | Dash Size | Maximum Operating Pressure | Torque Rating | A | D | E | G | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|
16SFXO Code 62 Split Flange Kit |
1.88 |
-16 |
6000 |
500-600 lb-in |
2.25 |
0.55 |
0.5 |
0.94 |
|
|
20SFXO Code 62 Split Flange Kit |
2.12 |
-20 |
6000 |
750-900 lb-in |
2.62 |
0.62 |
0.6 |
1.06 |
|
|
12SFXO Code 62 Split Flange Kit |
1.63 |
-12 |
6000 |
300-400 lb-in |
2 |
0.47 |
0.42 |
0.75 |
|
|
24SFXO Code 62 Split Flange Kit |
2.5 |
-24 |
6000 |
1400-1600 lb-in |
3.12 |
0.72 |
0.66 |
1.19 |
|
|
FF595-16 Code 62 Split Flange Kit |
1.88 |
-16 |
6000 |
500-600 lb-in |
2.25 |
0.55 |
0.5 |
0.94 |
|
Product Questions & Answers (1)
Question by: Jimmy G on Apr 12, 2025, 2:40 PM
What's all included in one of these kits?
Answer by: Customer Support on Apr 14, 2025, 6:28 AM
Each kit comes with two flange halves, four grade 8 hex bolts, four lock washers, and a 90 durometer Buna-N O-Ring.
