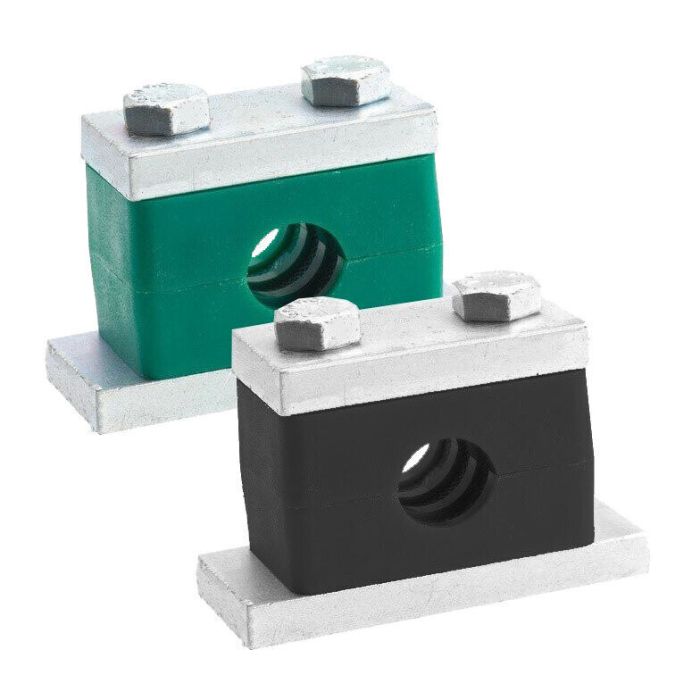

BRENNAN 1.1/4 NB HEAVY CLAMP ASSEMBLY

Description & Features

The BRENNAN 1.1/4 NB Heavy Clamp Assembly is engineered by Brennan Industries Inc known for its durability and precision.

This heavy-duty clamp offers a cush height of 3.5 inches and a cush ID of 1.661 inches ensuring robust performance in demanding applications.

With a bolt centerline of 3.54 inches and a cush width of 4.53 inches it delivers reliable support. The plate depth measures 1.77 inches and the plate thickness is 0.39 inches featuring a thread specification of 7/16-14 UNC.

Its plate width stands at 5.51 inches making it suitable for various industrial uses.

Supplier Part Number: CPH-20-1.660

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number CPH-20-1.660	Product Weight 2.83 lbs

Product Questions & Answers (2)

Question by: Denise R on Nov 29, 2025, 5:45 PM

what size pipe nominal is this clamp built for, and does that 1.661 cushion ID give you enough clearance for standard tubing with a little wrap or insulation on it?

Answer by: Customer Support on Dec 1, 2025, 7:17 AM

For a 1-1/4 nominal bore application, the 1.661 inch cushion ID is sized to fit right around standard 1-1/4 NB tubing or pipe. That ID doesn't leave a whole lot of extra room, so if you're running any kind of sleeve or insulation wrap underneath the clamp, measure your outside diameter first and make sure it falls within that 1.661 inch opening before you order.

Question by: Dustin H on May 27, 2025, 12:05 PM

trying to match up a clamp i’ve got, what’s the cush ID and the bolt centerline on this one?

Answer by: Customer Support on May 28, 2025, 4:42 PM

For sizing, the cush ID is 1.661 inches and the bolt centerline dimension is 3.54 inches.
