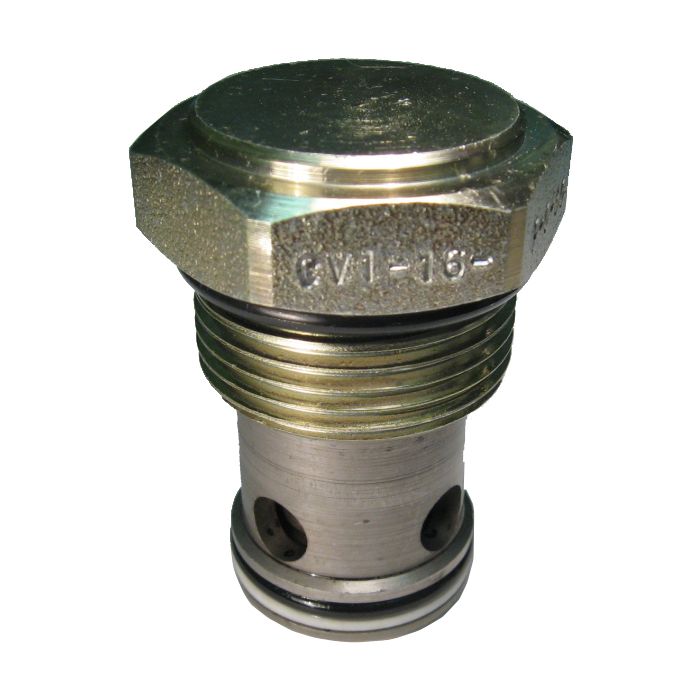

CV1-16 Series Cartridge Check Valves, Up To 3000 PSI & 40 GPM

Description & Features

Application	Used in hydraulic applications to allow free flow of fluid in one direction only.
Cartridge	Model CV1-16*, sold separately.
Flow Rating	40 GPM.
Housing	Cavity size C-16-2, sold separately, see
Maximum Operating Pressure	3000 PSI.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Temperature Range	-40°F to 248°F (Extreme Limits).

Model Number	Part Number	Cracking Pressure (psi)	Seal Material	Price	Action
CV1-16-P-0-20 CV1-16 Series Cartridge Valve	565973	20	Buna-N

Question by: Rhonda H on Sep 21, 2025, 9:42 PM

Can this handle the heat if I'm running it pretty hard?

Answer by: Customer Support on Sep 23, 2025, 8:54 AM

These check valves are rated to handle temperatures from -40°F all the way up to 248°F, so they should hold up under strenuous conditions.
