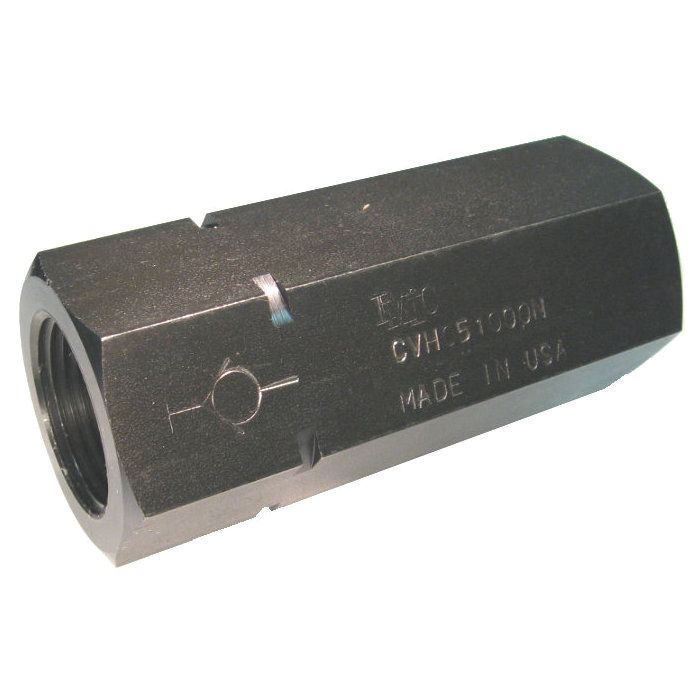

CVH Series Inline Check Valve, 1 NPT Ports, Up To 158.00 GPM & 6000.00 PSI

Rated for up to 6,000 PSI working pressure and 158 GPM flow, the CVH Series Inline Check Valve is built for sustained high-pressure hydraulic service. The alloy steel body carries a black oxide coating, and the precision ground hard seat paired with a hardened poppet element provides tight shutoff with no leakage. A high-strength spring steel spring works in conjunction with a superior retainer design that prevents full spring packing, softening opening impact and extending service life.

Port connections are 1 NPT on both ends. Delaware Manufacturing Industries engineered this series to handle demanding industrial hydraulic circuits where reliable one-directional flow control and pressure integrity are required. Smaller sizes in the CVH line are capable of reaching 10,000 PSI at a reduced safety factor, making the series adaptable across a range of system pressure requirements.

SKU: CVH05-1000N

Supplier Part Number (MPN): CVH051000N

Alternate Part Numbers: C1EK50
