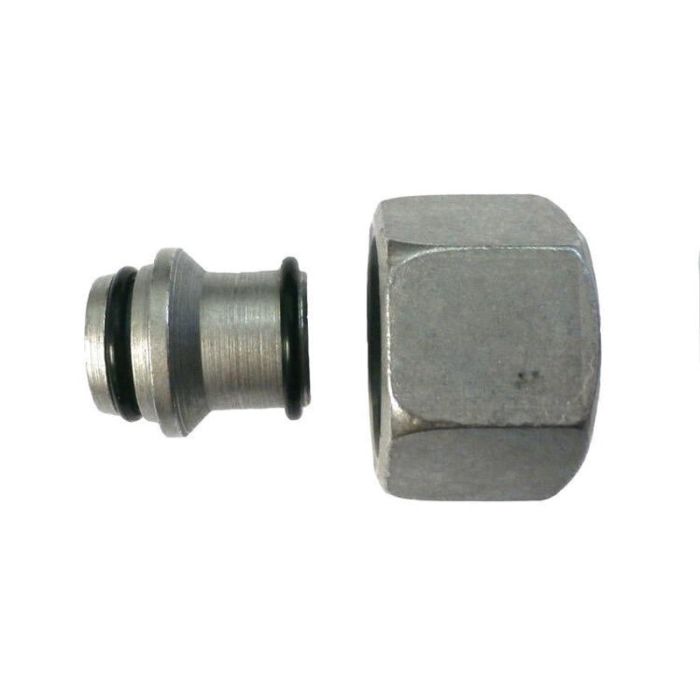

S16 MBT CAP (MBT TUBE NUT & INSERT)

Ask A Question

Description & Features

Designed for 16mm heavy tube OD metric connections, the S16 MBT Cap (MBT Tube Nut & Insert) provides a reliable capping solution for Female Metric Swivel ports conforming to DIN 2353 and ISO 8434-1 standards. Manufactured from straight steel, it is suited for use in hydraulic systems where unused or inactive ports require secure sealing.

The M24x1.5 thread engagement and NBR O-ring seal material combine to support a leak-resistant closure on metric swivel connections. As part of Brennan Industries' D0304-C series, this cap is compatible with standard MBT tube nut and insert assemblies, making it a practical choice for port management in industrial hydraulic circuits.

SKU: D0304-C-S16

Supplier Part Number (MPN): D0304-C-S16

Specifications

Brand
BRENNAN
Connection Size 1
S16
Connection Type
Female Metric Swivel
Connection Type 1
Female DIN Tube Swivel
Dimension Standards
DIN 2353
Finish
Zinc Nickel-Plated
Fitting Type
Cap
Hex Size
1.18 in
Material
Steel
Material Construction
11SMnPb30 Steel
O-ring Seal Material
NBR
Operating Temperature
-40 to 250 deg F
Series
D0304-C Series
Thread Size
M24x1.5

Product Questions & Answers (1)

Question by: Ronnie S on Sep 2, 2025, 10:23 AM
Is this cap just for sealing up unused ports on hydraulic stuff?
Answer by: Customer Support on Sep 4, 2025, 6:03 AM
Yes, this S16 MBT Cap is designed specifically to provide a leak-resistant seal for female metric swivel ports that aren't in use in hydraulic systems.
